Auto-login with cookie and dynamic access token authentication

Overview

Auto-login restores a user's login state without requiring them to re-enter their email address or password after the normal login state expires.

The implementation differs depending on the Kuroco API security setting.

Item	Dynamic Access Token	Cookie
Stored data	The application retains the access token and refresh token returned by Login::token.	The browser retains a login session cookie and an auto-login cookie.
Authentication request	Specify the access token in the X-RCMS-API-ACCESS-TOKEN request header.	Specify credentials: "include" to send cookies from the browser.
Normal login state	The access token can be used for the period configured in access_token_lifespan.	The login session cookie is used for the current login session.
Auto-login	Send the refresh token from the frontend to Login::token to obtain a new access token.	Kuroco restores the login state when the browser sends the auto-login cookie.
Auto-login validity period	Set refresh_token_lifespan in seconds.	Set Auto login validity period in days under [Environment] -> [Admin panel].
Validity period renewal	Reissuing an access token does not renew the refresh token validity period.	Restoring the login state does not renew the auto-login validity period.
Browser restrictions	Cookies are not used for auto-login.	Cookie deletion, third-party cookie restrictions, and Safari restrictions can affect auto-login.

Dynamic access token authentication

With dynamic access token authentication, the frontend retains the access token and refresh token. When the access token expires, use a valid refresh token to obtain a new access token.

Configure the endpoints

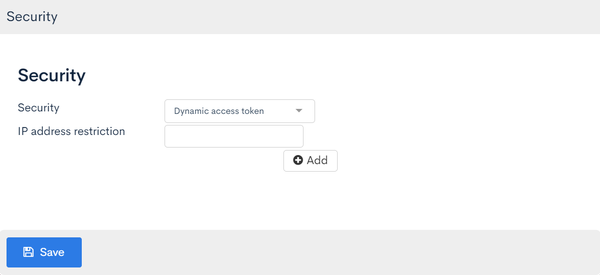

Set the API security to Dynamic Access Token.

Create a login endpoint and a token endpoint.

Login endpoint

Field	Setting
Path	login
Category	Authentication
Model	Login(v1)
Operation	login_challenge

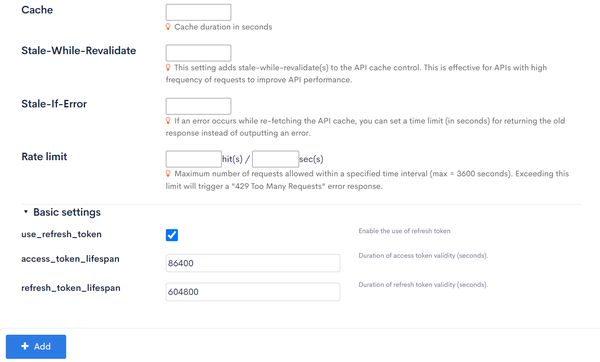

Token endpoint

Field	Setting
Path	token
Category	Authentication
Model	Login(v1)
Operation	token
use_refresh_token	Checked
access_token_lifespan	Access token validity period in seconds
refresh_token_lifespan	Refresh token validity period in seconds

Obtain an access token and refresh token

Send the login credentials to Login::login_challenge.

With dynamic access token authentication, a refresh token can be obtained while keeping login_save set to 0. When use_refresh_token is enabled for Login::token, a refresh token is issued when the grant_token is exchanged. login_save: 1 is required only when issuing an auto-login cookie for cookie authentication.

Example request

{
  "email": "member@example.com",
  "password": "PASSWORD",
  "login_save": 0
}

The response contains a grant_token.

Example response

{
  "grant_token": "GRANT_TOKEN",
  "status": 0,
  "member_id": 123,
  "info": {
    "validUntil": 1700000000
  },
  "messages": [],
  "errors": []
}

Send the grant_token from the response to Login::token.

Example request

{
  "grant_token": "GRANT_TOKEN"
}

When use_refresh_token is enabled for Login::token, the response contains an access token and a refresh token.

Example response

{
  "access_token": {
    "value": "ACCESS_TOKEN",
    "expiresAt": 1700000000
  },
  "refresh_token": {
    "value": "REFRESH_TOKEN",
    "expiresAt": 1700604800
  }
}

To access an API that requires authentication, specify the access token in the X-RCMS-API-ACCESS-TOKEN request header.

Auto-login with dynamic access token authentication uses the refresh token returned by Login::token.

Reissue an access token using a refresh token

When the access token expires, send the refresh token to Login::token.

Example request

{
  "grant_token": "",
  "refresh_token": "REFRESH_TOKEN"
}

A new access token is returned.

Example response

{
  "access_token": {
    "value": "NEW_ACCESS_TOKEN",
    "expiresAt": 1700100000
  }
}

Reissuing an access token with a refresh token does not return a new refresh token. Use the initially issued refresh token until its expiresAt. When the refresh token expires, the user must log in again starting from Login::login_challenge.

caution

With dynamic access token authentication, Kuroco does not automatically restore the browser's login state. The frontend must retain the tokens and implement access token reissuance when the access token expires.

Access tokens and refresh tokens are authentication credentials. Design how they are stored, and do not output them to logs or public files.

Cookie authentication

With cookie authentication, specify 1 for login_save in Login::login_challenge to enable auto-login. No endpoint post-processing or additional Post-login processing is required.

Configure the API and validity period

Set the API security to Cookie.

Create a login endpoint.

Field	Setting
Path	login
Category	Authentication
Model	Login(v1)
Operation	login_challenge

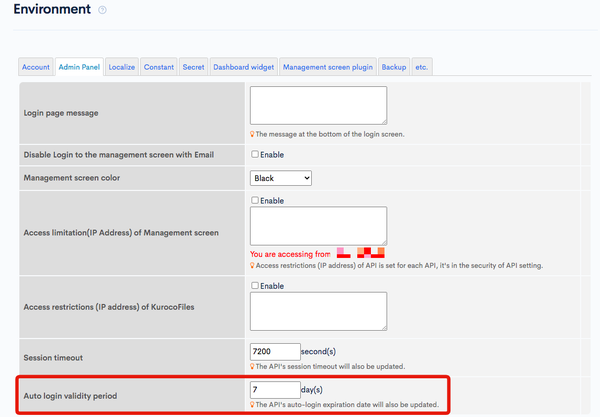

Next, click [Environment] -> [Admin panel], enter the number of days in Auto login validity period, and click Update. This setting applies to the auto-login validity period for both the admin panel and the API.

When accessing the API from a browser, configure CORS as follows and click Save.

• Add the frontend origin to CORS_ALLOW_ORIGINS.
• Add GET, POST, and OPTIONS to CORS_ALLOW_METHODS.
• Enable Allow Credentials in CORS_ALLOW_CREDENTIALS.

For credentialed CORS requests, specify the frontend origin in CORS_ALLOW_ORIGINS instead of using *. To avoid third-party cookie restrictions, also align the frontend and Kuroco domains, such as www.example.com and api.example.com.

Log in with login_save

Specify 0 or 1 for login_save.

Value	Behavior
0	Starts a normal login session. The user must log in again after the session expires.
1	Issues an auto-login token in addition to starting a normal login session.

Example browser request

const response = await fetch(
  "https://api.example.com/rcms-api/1/login",
  {
    method: "POST",
    headers: {
      "Content-Type": "application/json",
    },
    credentials: "include",
    body: JSON.stringify({
      email: "member@example.com",
      password: "PASSWORD",
      login_save: 1,
    }),
  }
);

Also specify credentials: "include" when accessing an API that requires cookie authentication after login.

Example request to retrieve the logged-in user

const profile = await fetch(
  "https://api.example.com/rcms-api/1/profile",
  {
    credentials: "include",
  }
);

Logging in with login_save: 1 stores an auto-login cookie in addition to the cookie for the normal login session.

Cookie	Purpose
rcms_api_access_token	Used for the current login session.
rcms_api_refresh_token	Used to restore the login state when the normal login session expires.

Depending on the environment, the cookie names may have a __Host- prefix. The frontend does not handle the cookie values directly and specifies credentials: "include" to leave their transmission to the browser.

You can view issued auto-login tokens under [Member] -> [Member] -> [Auto login tokens]. To invalidate a token, select it in the list and click Delete. A deleted token cannot restore the login state.

Verify auto-login with cookie authentication

Verify the following:

1. Open the login request in the browser developer tools and inspect Set-Cookie in the response.
2. Under Application or Storage in the browser developer tools, check the login session cookie and auto-login cookie.
3. Under Auto login tokens, check the auto-login token for the member.
4. After the normal login session expires, access an API that requires authentication with credentials: "include" and verify that the login state is restored.

Validity periods and notes

• The auto-login validity period for cookie authentication is calculated from the time the user logs in with login_save: 1. Restoring the login state through auto-login does not extend the validity period.
• A refresh token for dynamic access token authentication remains valid until the expiresAt value set when it was first issued. Reissuing an access token does not issue a new refresh token.
• With cookie authentication, browser cookie deletion and third-party cookie restrictions can cause the login state to be lost before the period configured in Kuroco.
• If a session longer than seven days is required in Safari, use dynamic access token authentication instead of cookie authentication.
