List of extension items available in the content structure

The content structure includes the following three field items by default.

• ContentID/Slug
• Date
• Title

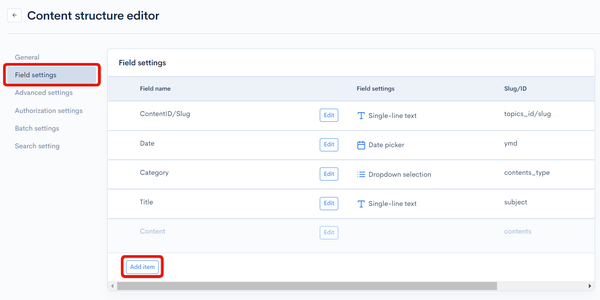

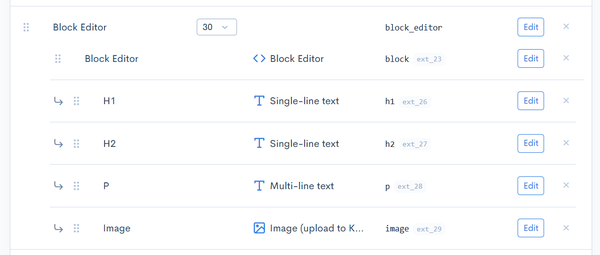

Field items can be added in the Content structure editor.

Reference: Content structure

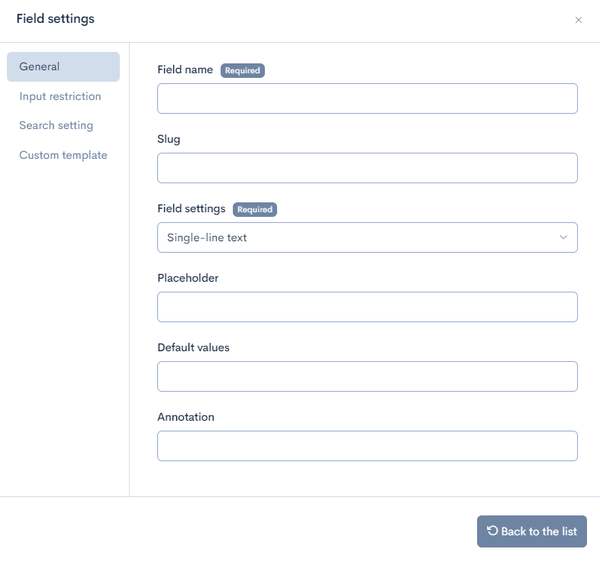

When you click on [Edit], it opens the item settings for additional field, allowing you to configure item types, input restrictions, and more.

The available settings vary depending on the item, so please refer to the following.

List of Items

ContentID/Slug
Date/Sort
Category
Title
Content
Single-line text
Single-line text (autocomplete)
Multi-line text
WYSIWYG
HTML
Dropdown selection
Multiple choice (checkbox)
Date picker
Master selection

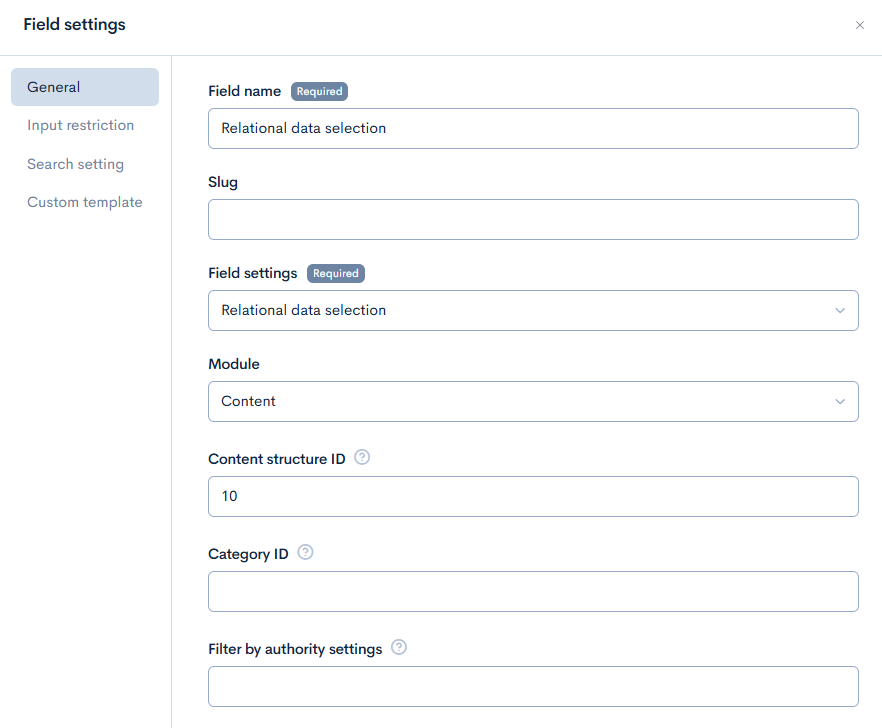

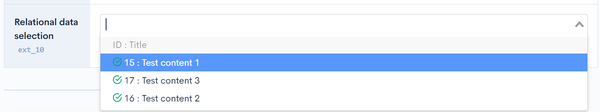

Relational data selection
Bool

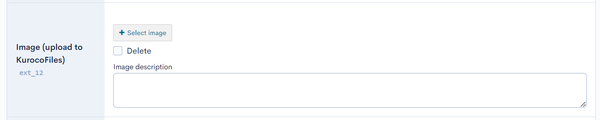

Image (upload to KurocoFiles)
File (upload to KurocoFiles)

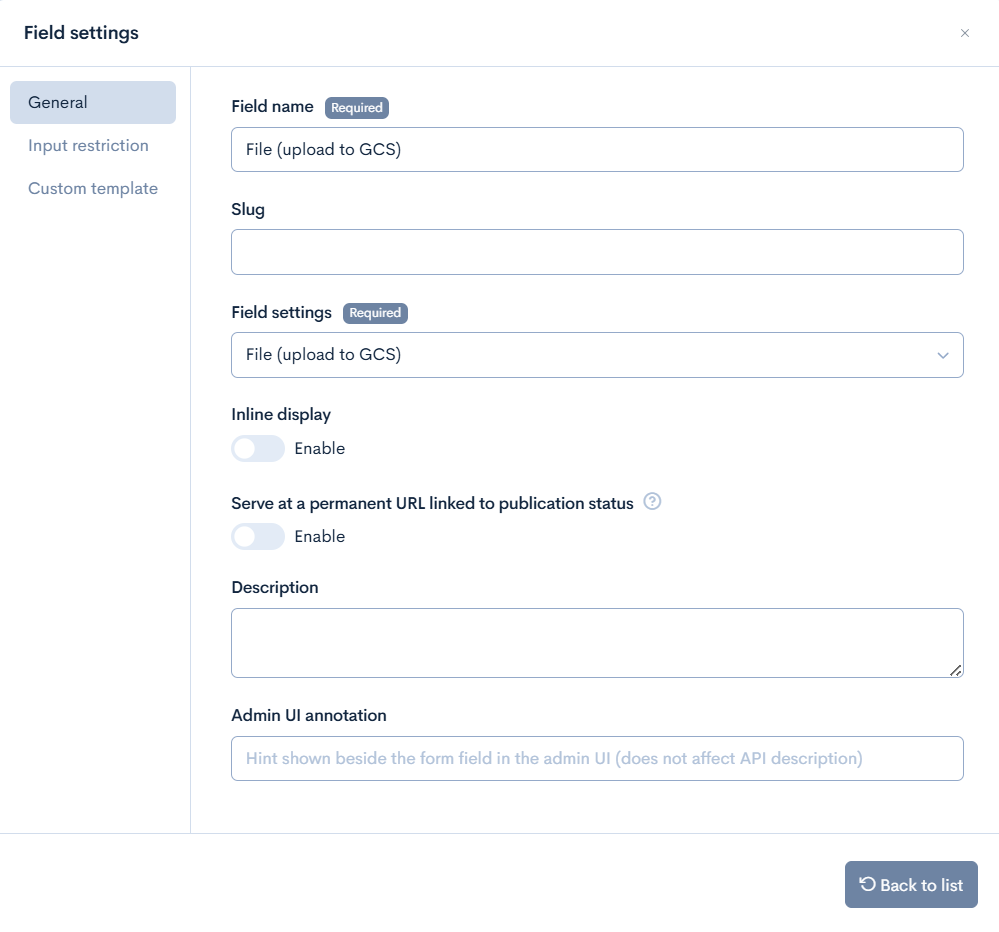

File (upload to GCS)
File (upload to S3)

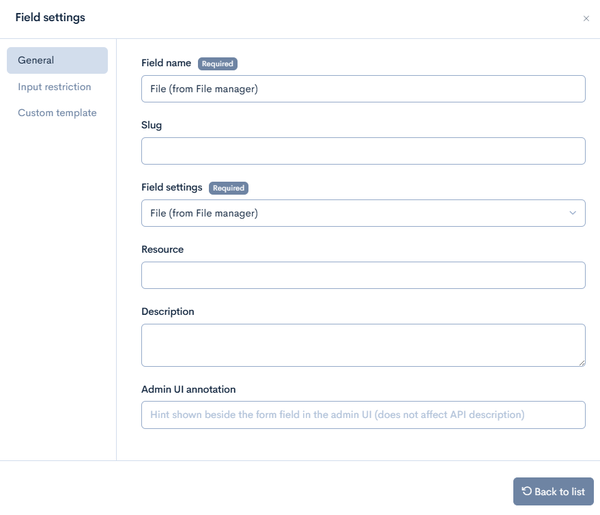

File (from File manager)

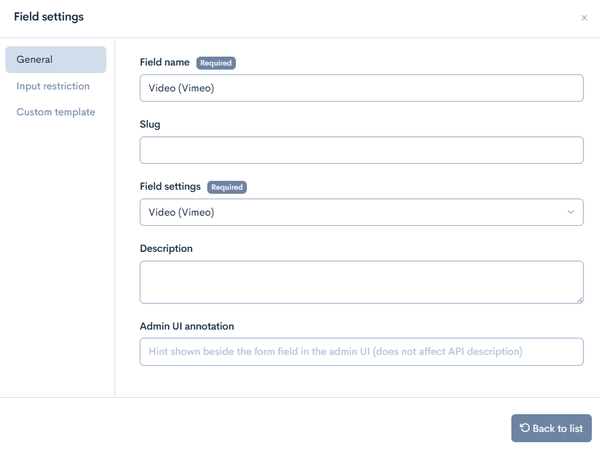

Video (Vimeo)
API field

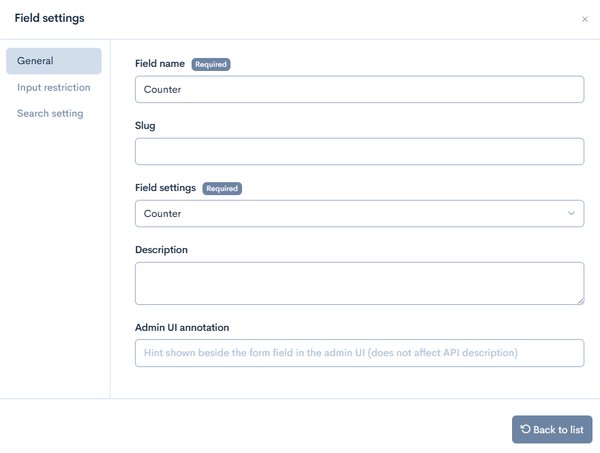

Counter
Link

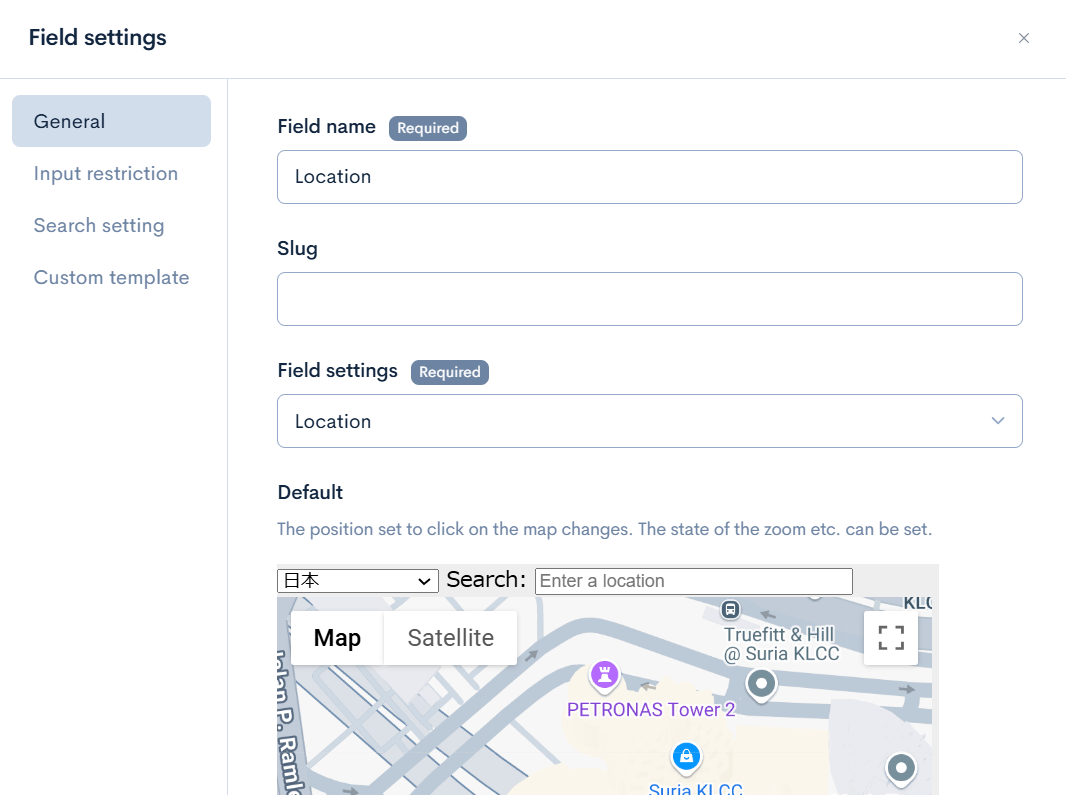

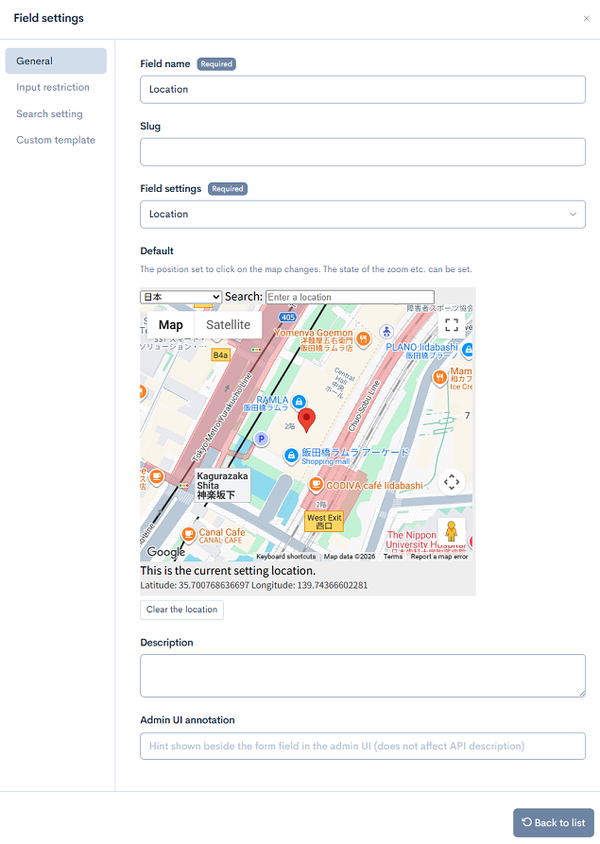

Location

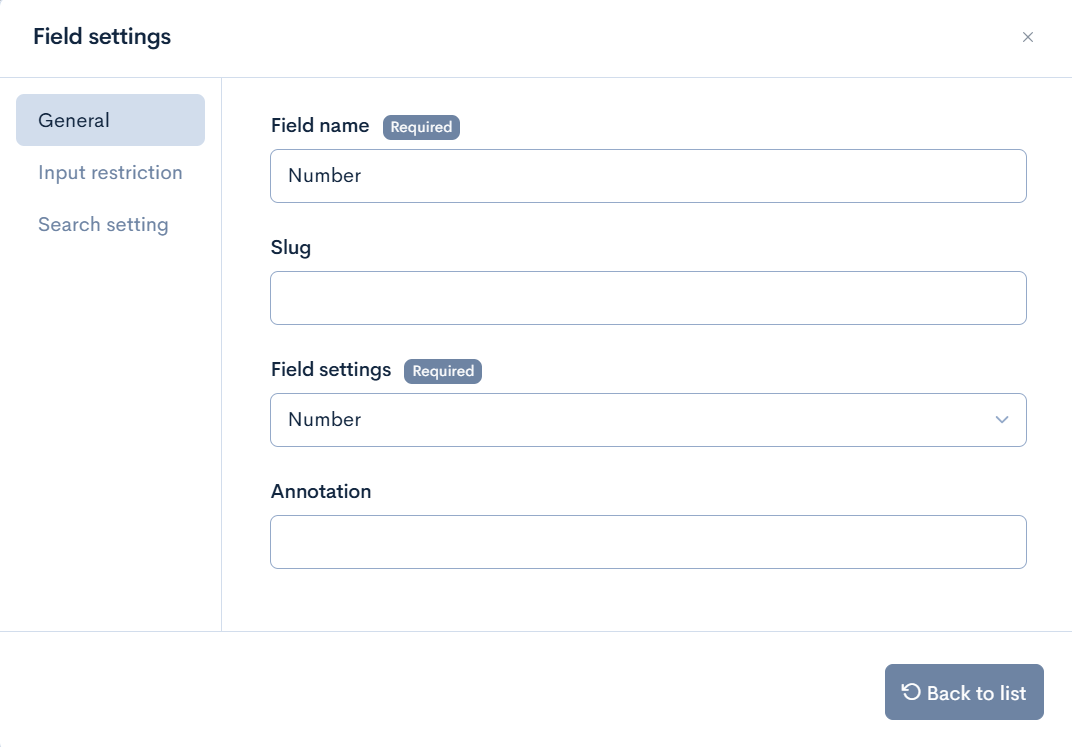

Number

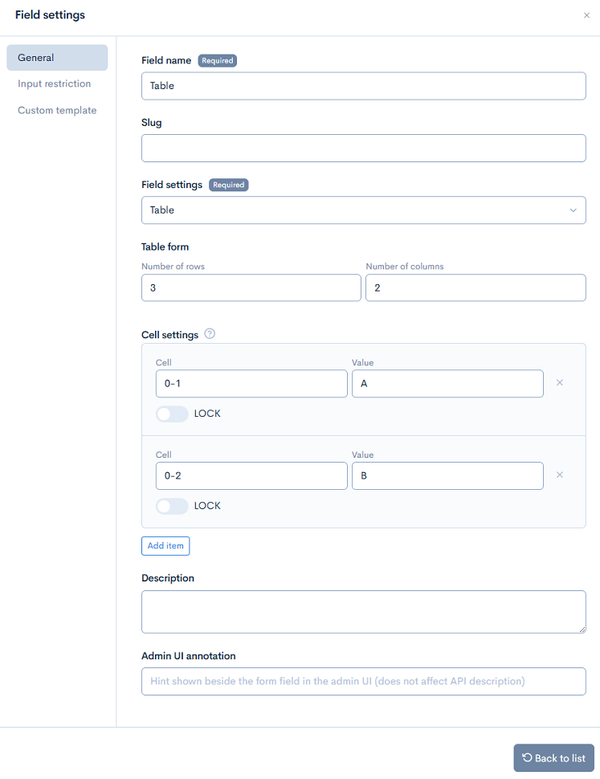

Table

tip

Depending on the timing of your Kuroco application, the response for each item may be ext_X instead of ext_col_XX.
If it doesn't work, please check the response in the Swagger UI.

Default Items

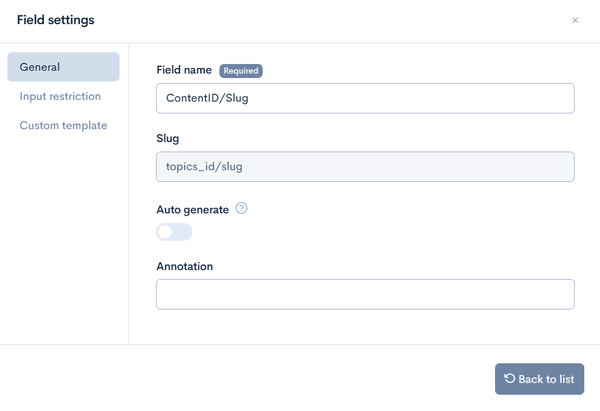

ContentID/Slug

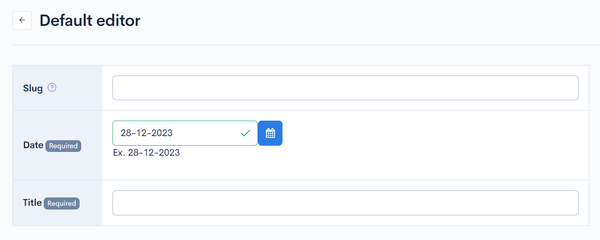

Display in Content Editing Screen

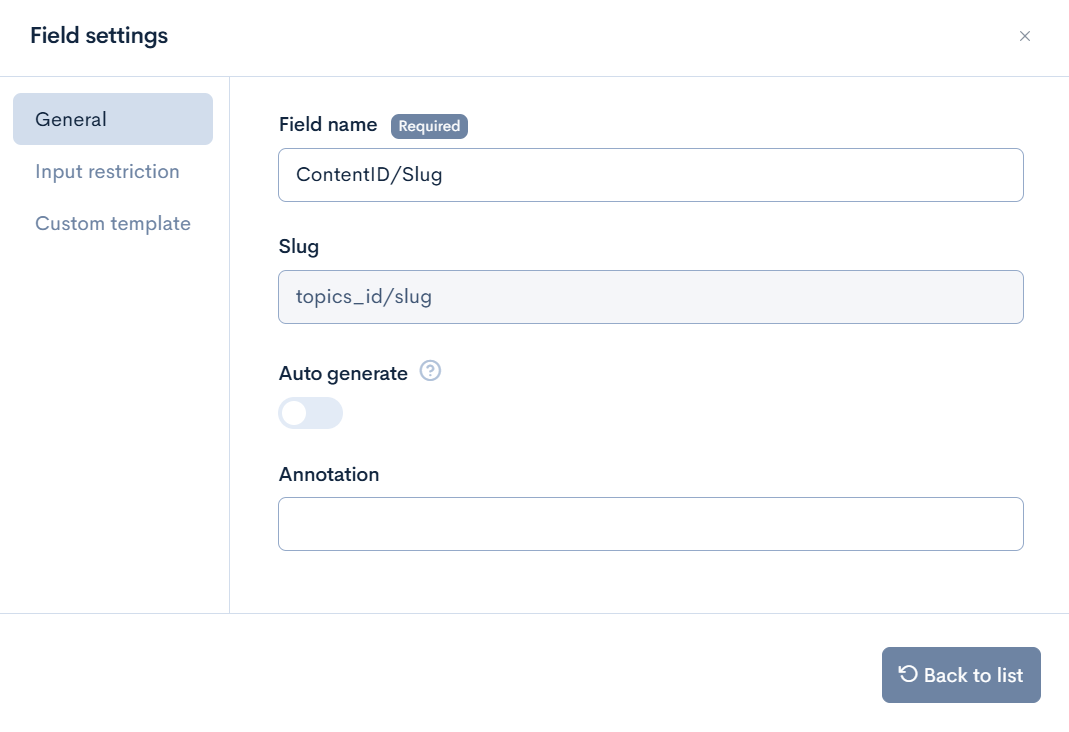

Field settings - General

Item	Description
Field name	Displays Content ID/Slug. Cannot be edited.
Slug	Displays topics_id/slug. Cannot be edited.
Auto generate	When enabled, automatically generates a Slug if it is blank when adding content.
Annotation	Enter an annotation.

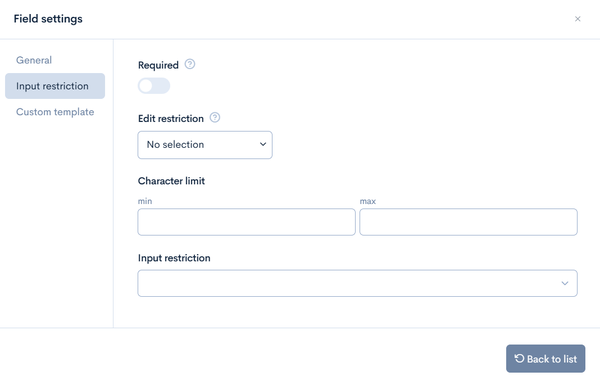

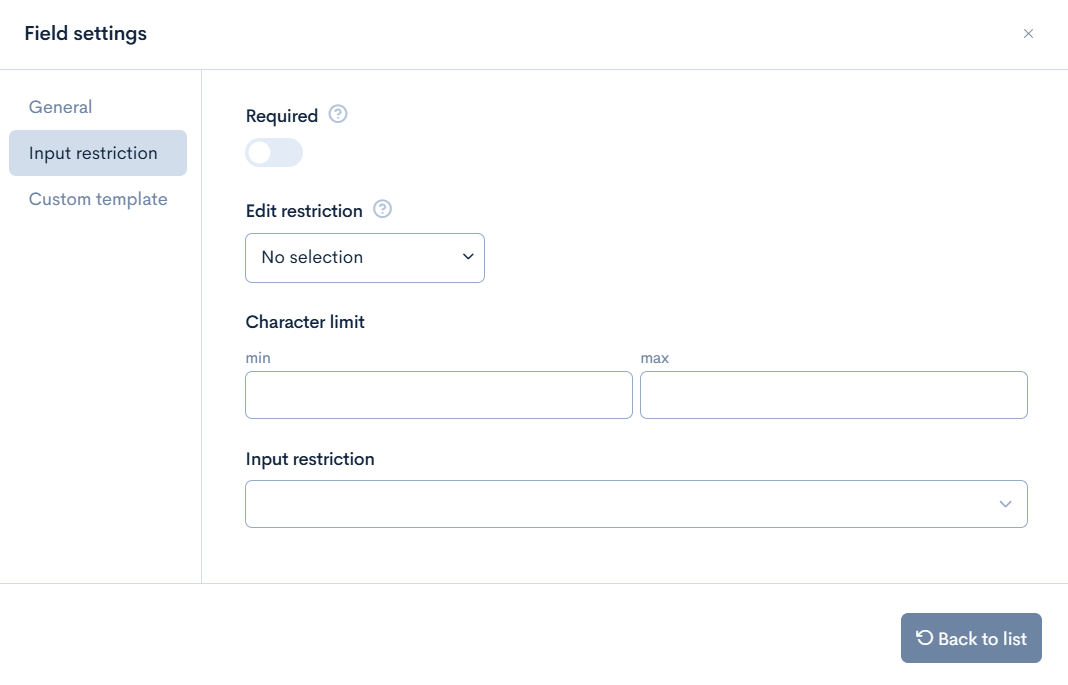

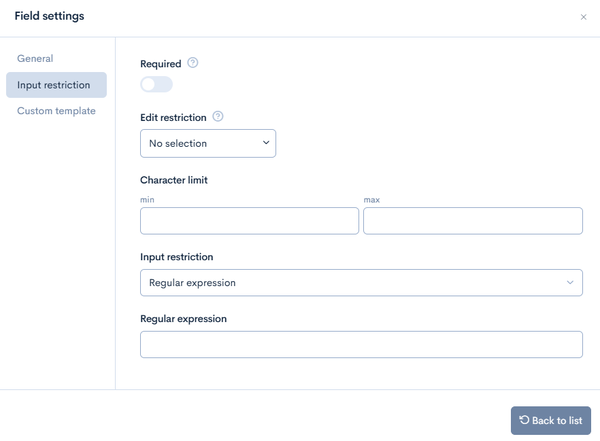

Field settings - Input restriction

Item	Description
Required	When enabled, becomes a required input.
Input restriction	Limits the input string.
Regular expression	If [Regular Expression] is selected in Input Restriction, enter a regular expression.
Character limit	Set the minimum and maximum number of characters.

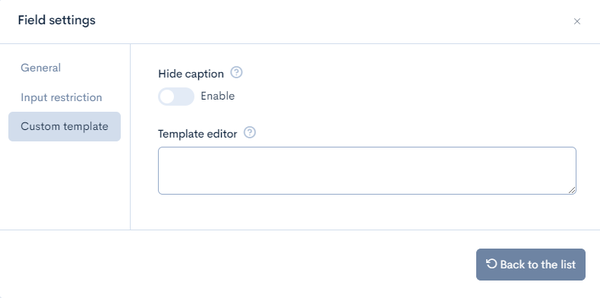

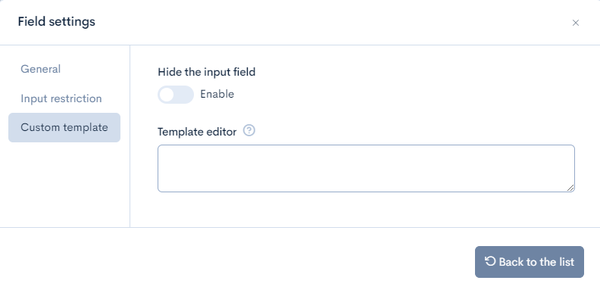

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "topics_id": id,
    "slug": "slug",
},

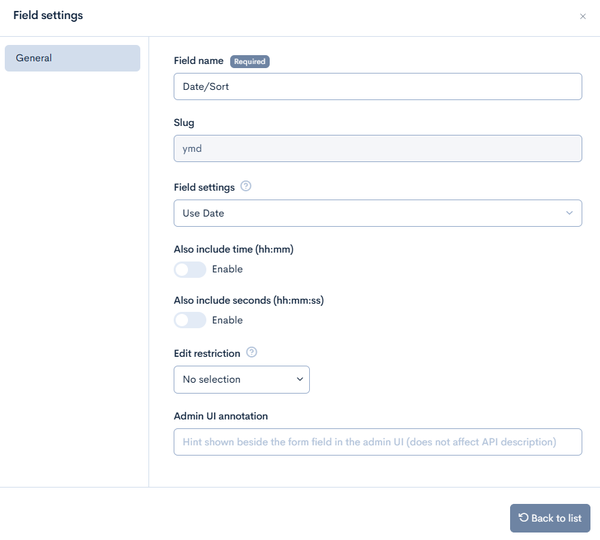

Date/Sort

Display of the Content Editing Screen

or

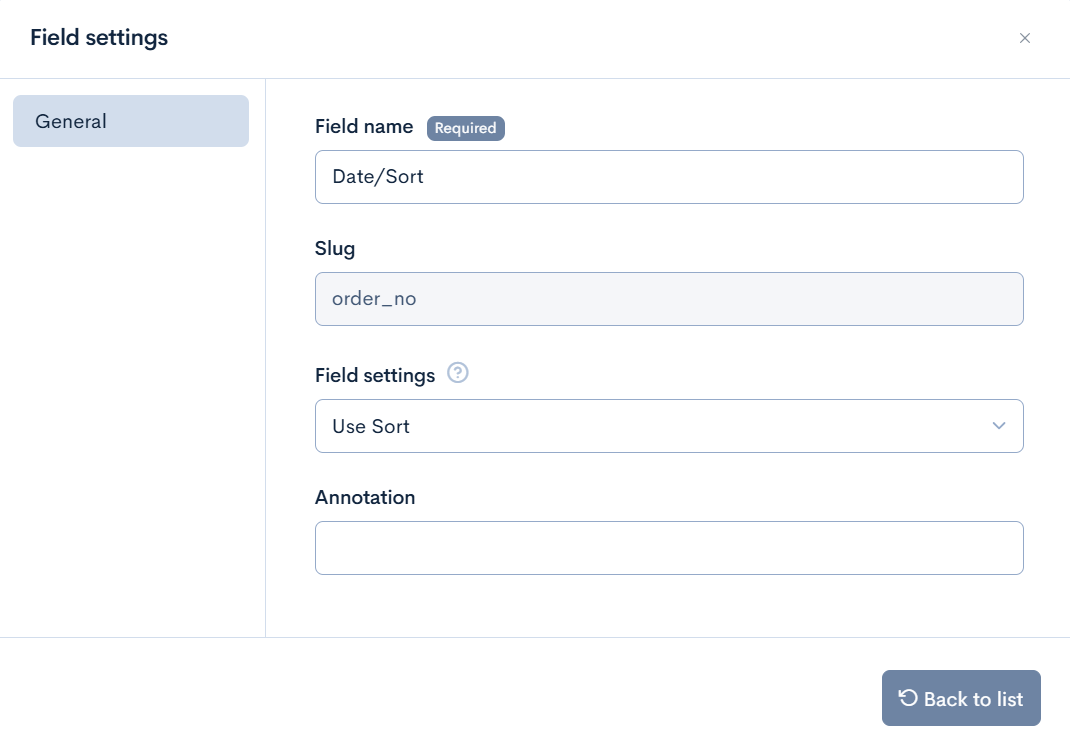

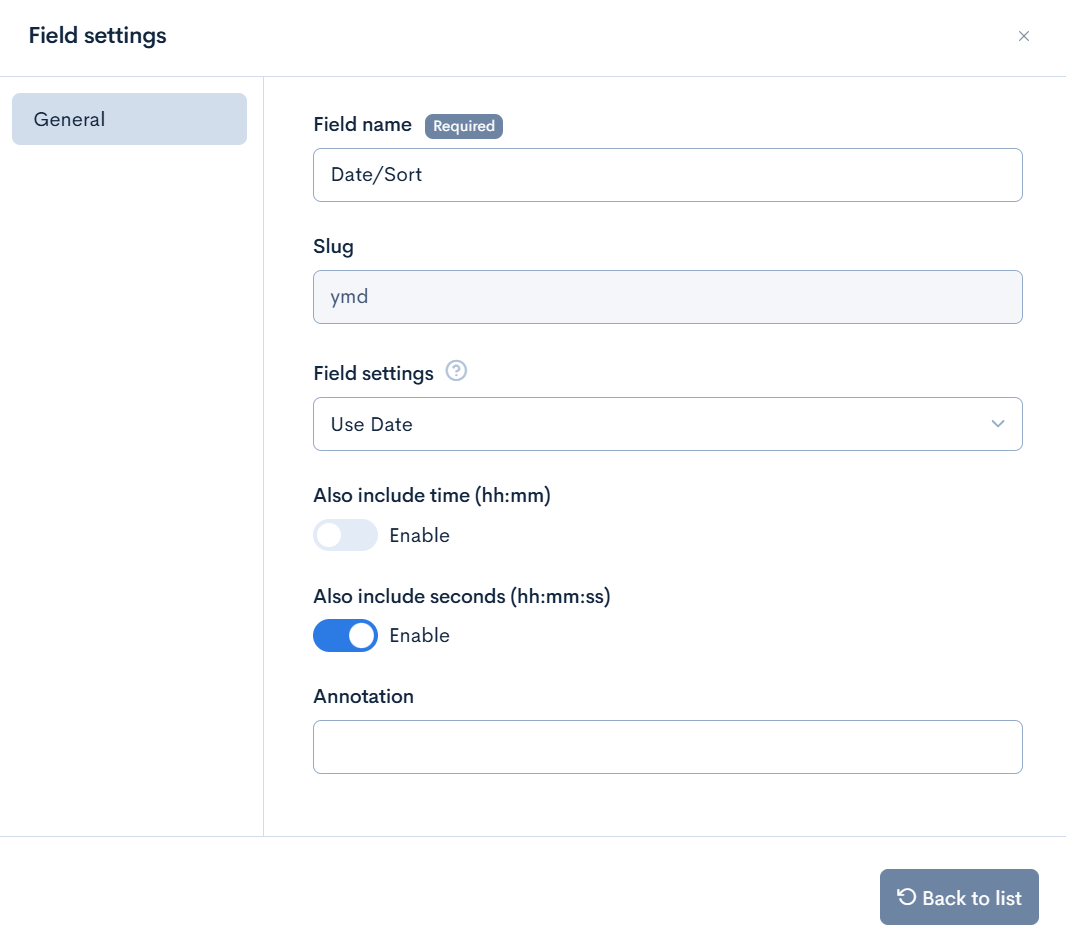

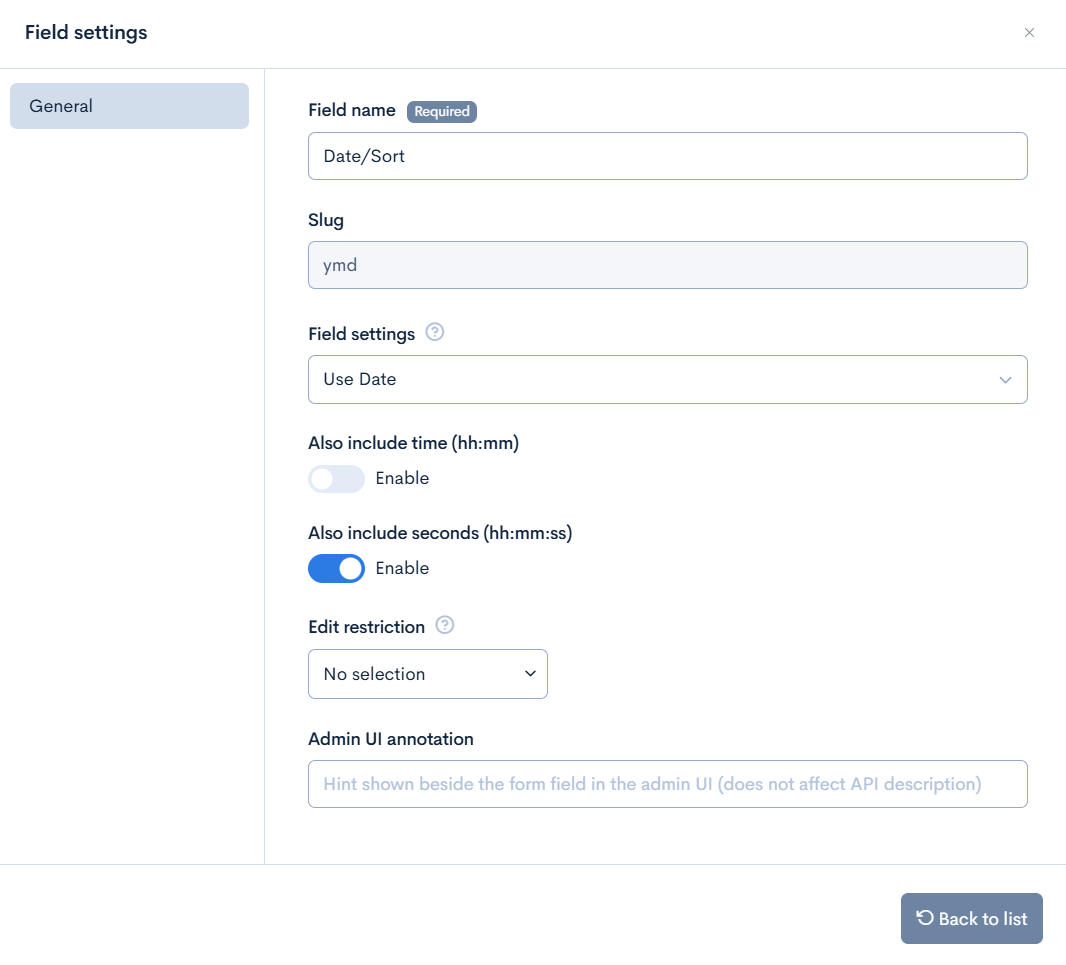

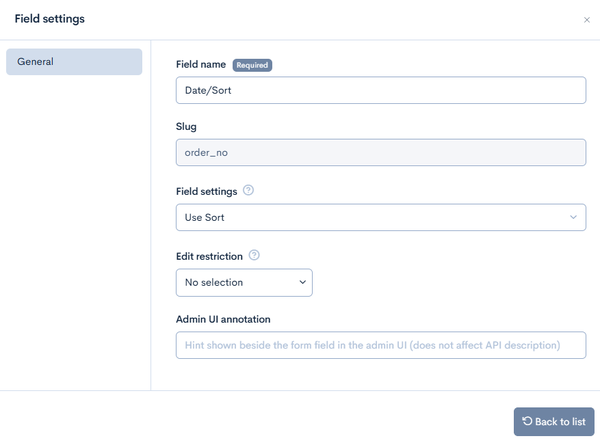

Field settings - General

Item	Description
Field name	Displays Date/Sort. Cannot be edited.
Slug	Displays ymd or order_no. Cannot be edited.
Hide date	When enabled, displays the order item instead of the date.
Also include time (hh:mm)	When enabled, allows setting of time.
Annotation	Enter a annotation.

Category

Display of the Content Editing Screen

info

Displayed only when multiple categories are registered.

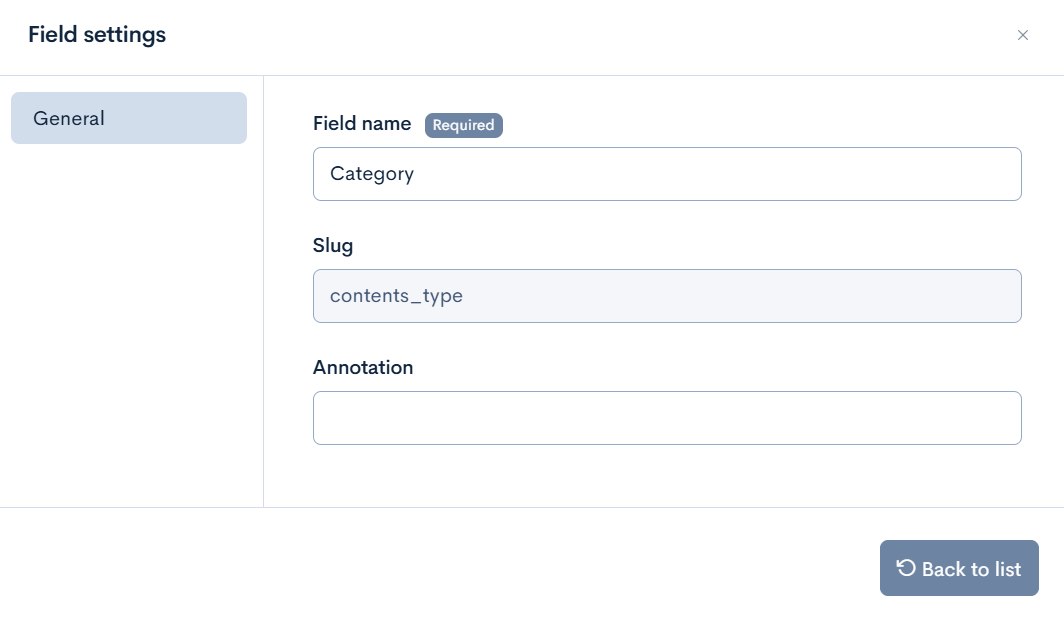

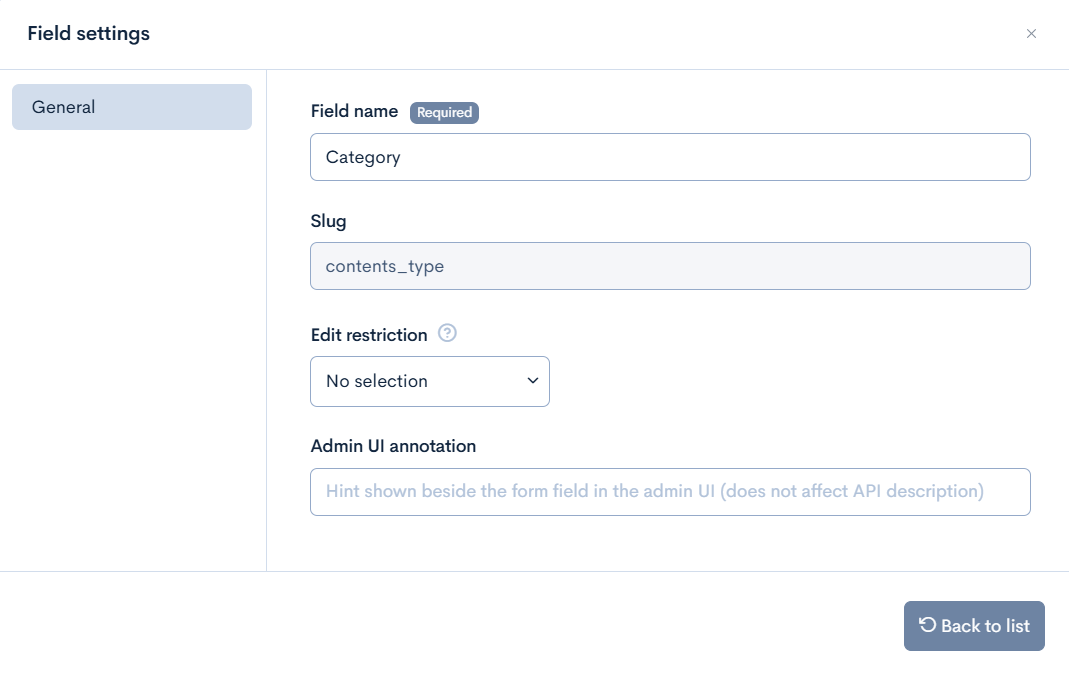

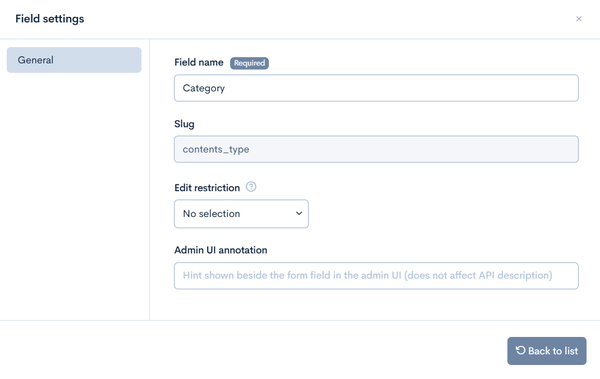

Field settings - General

Item	Description
Field name	Displays Category. Cannot be edited.
Slug	Displays contents_type. Cannot be edited.
Annotation	Enter a annotation.

JSON Response

details: {
    "ymd": "2024-01-11",
    "order_no": 10,
},

Title

Display of the Content Editing Screen

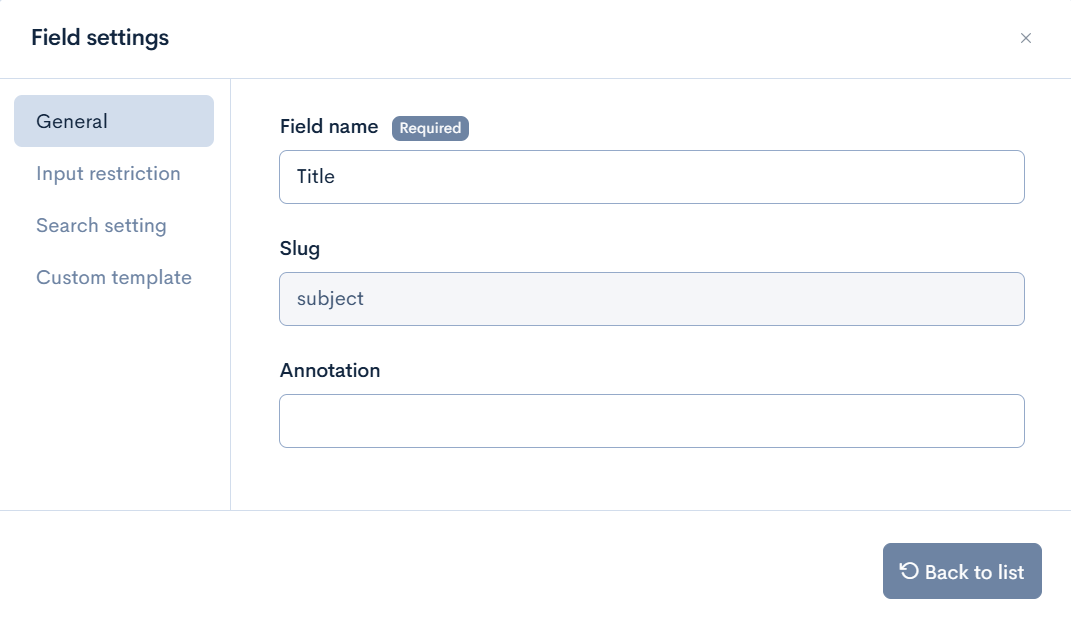

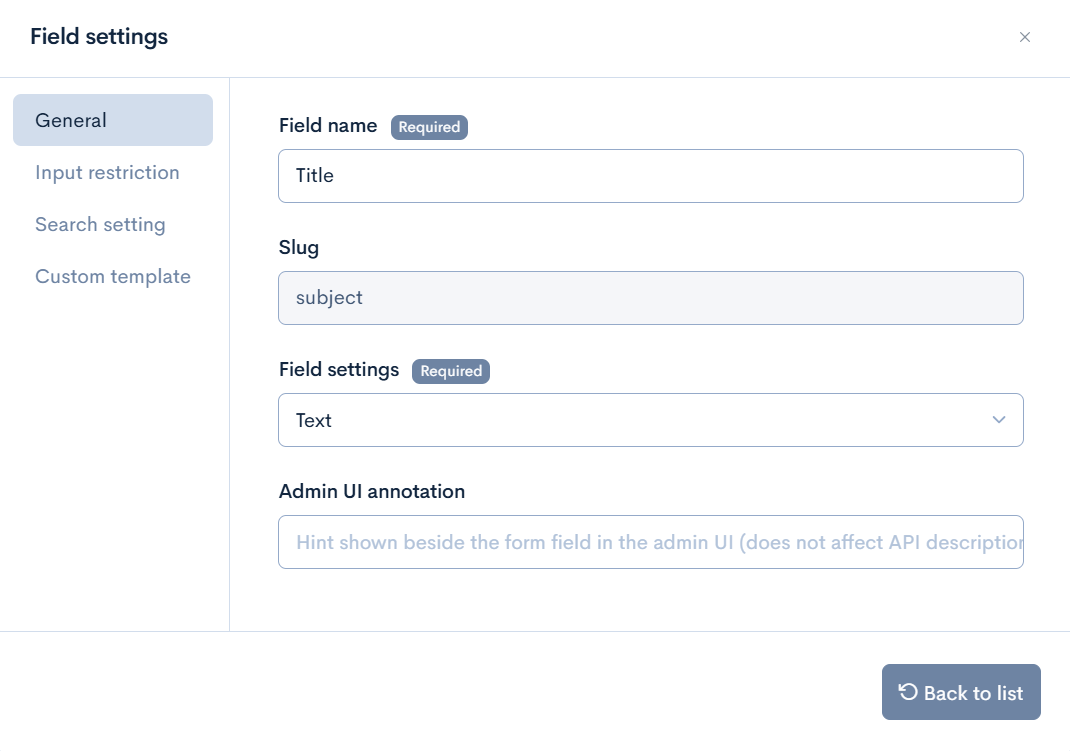

Field settings - General

Item	Description
Field name	Displays Title. Cannot be edited.
Slug	Displays subject. Cannot be edited.
Annotation	Enter a annotation.

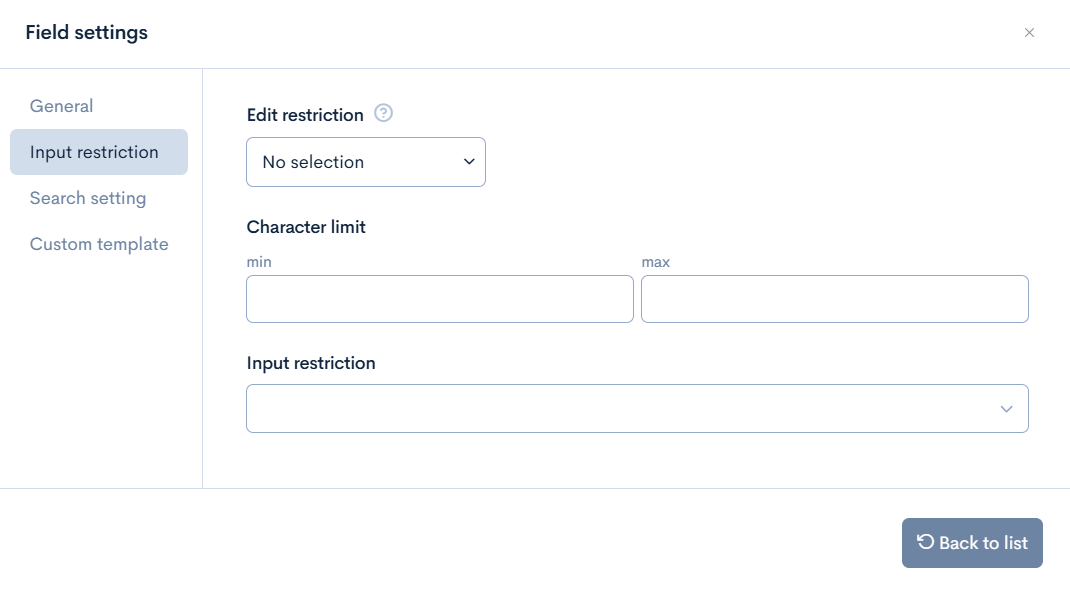

Field settings - Input restriction

Item	Description
Input restriction	Limits the input string.
Regular expression	If Regular Expression is selected in the input restrictions, enter a regular expression.
Character limit	Sets the minimum and maximum character limits.

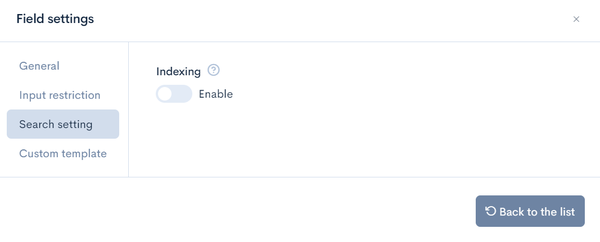

Field settings - Search setting

Item	Description
Indexing	When enabled, an index is added to the database, and search results are responded quickly.

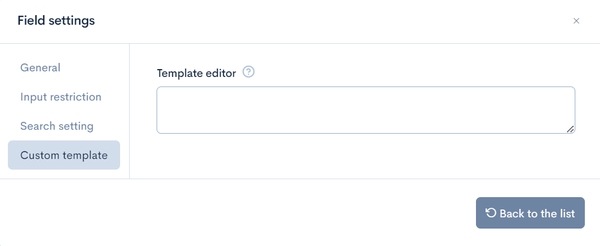

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "subject": "title",
},

Content

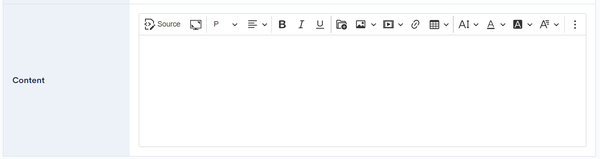

Display of the Content Editing Screen

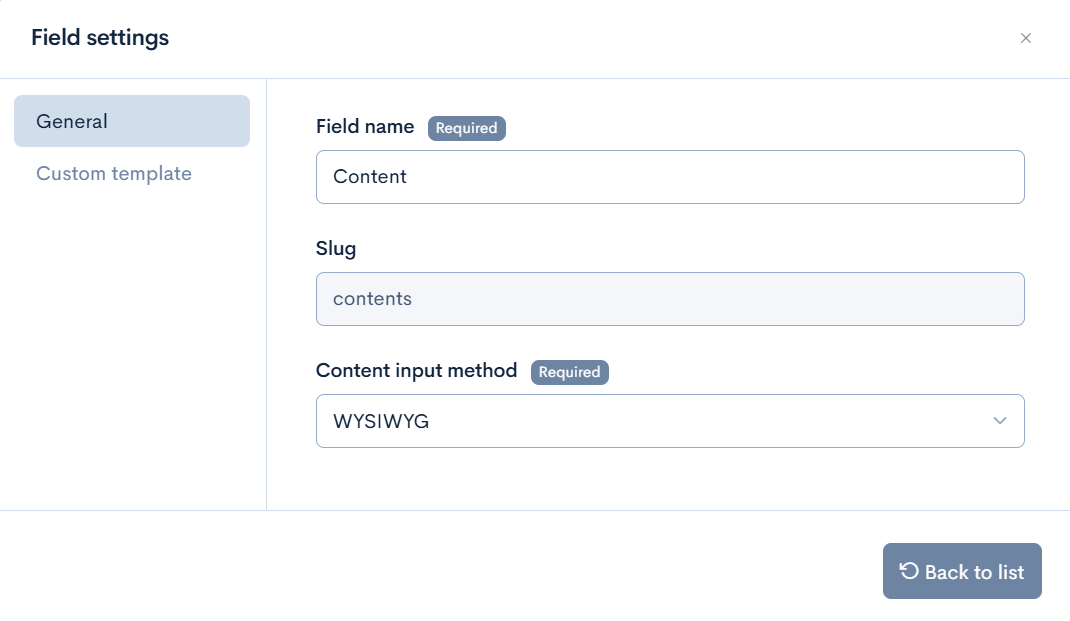

Field settings - General

Item	Description
Field name	Displays content. Cannot be edited.
Slug	Displays contents. Cannot be edited.
Input Method for Body	Select the input method for the body from "WYSIWYG", "Text Area", or "Not Used".

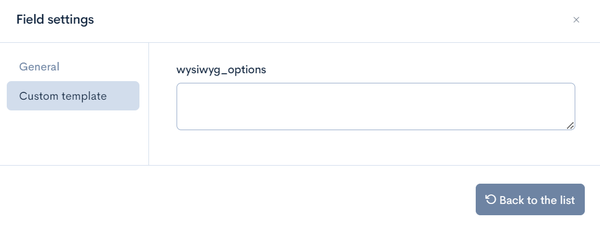

Field settings - Custom template

Item	Description
wysiwyg_options	This is used when specifying additional CSS or color codes.

JSON Response

details: {
    "contents": "text",
},

Text Related

Single-line text

Display of Content Editing Screen

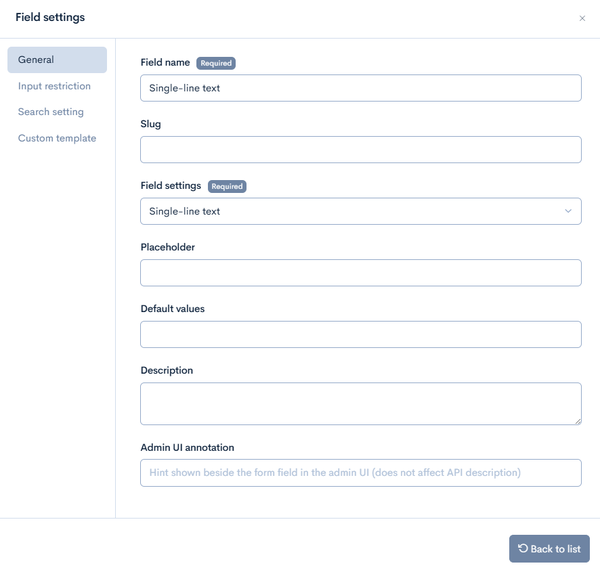

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Placeholder	Enter the placeholder.
Default values	Enter the default value.
Annotation	Enter the Annotation.

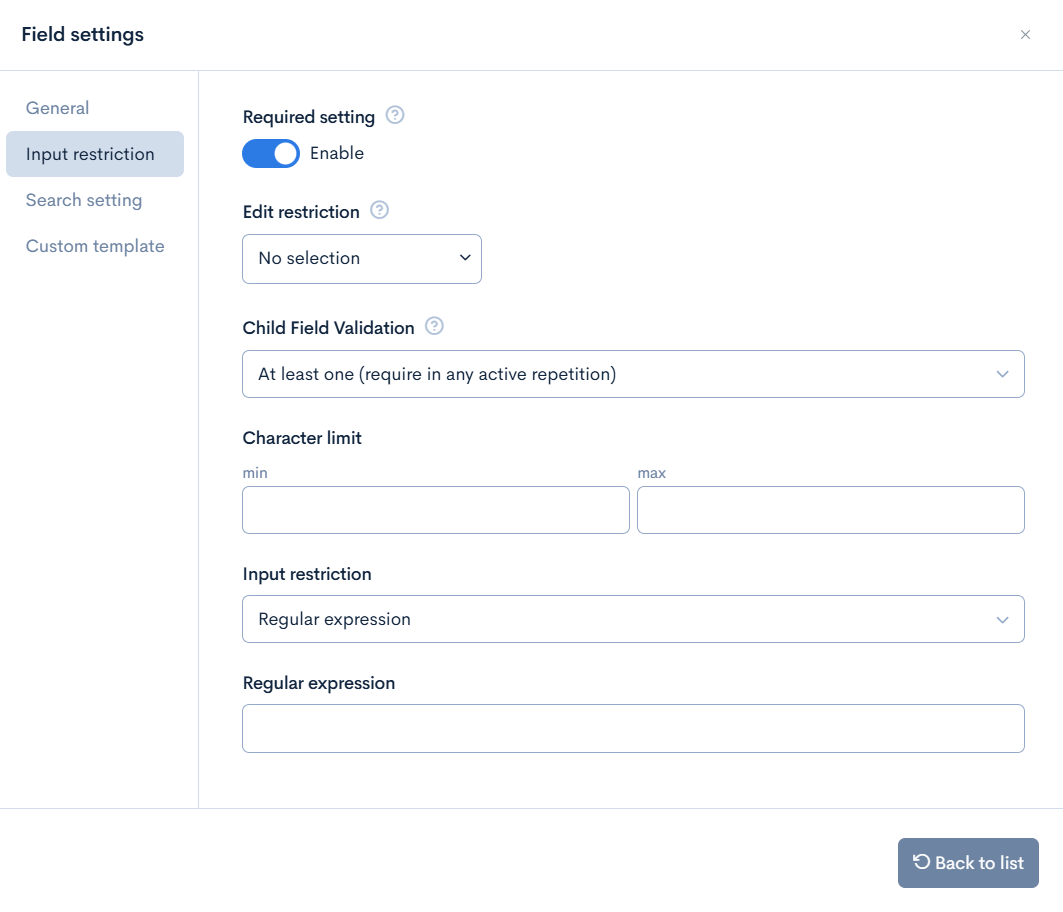

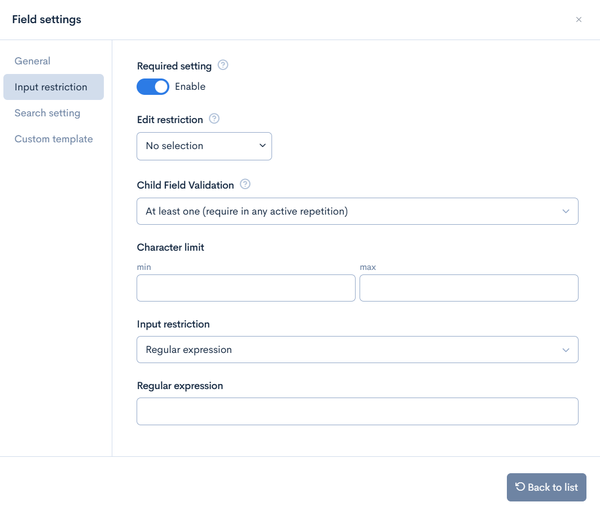

Item Settings - Input Restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Input restriction	You can restrict the input string.
Character limit	Set the minimum and maximum number of characters.
Regular expression	If you select [Regular Expression] in the input restriction, enter the regular expression.

Field settings - Search setting

Item	Description
Indexing	When enabled, an index is added to the database, and search results are responded quickly.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": "text",
},

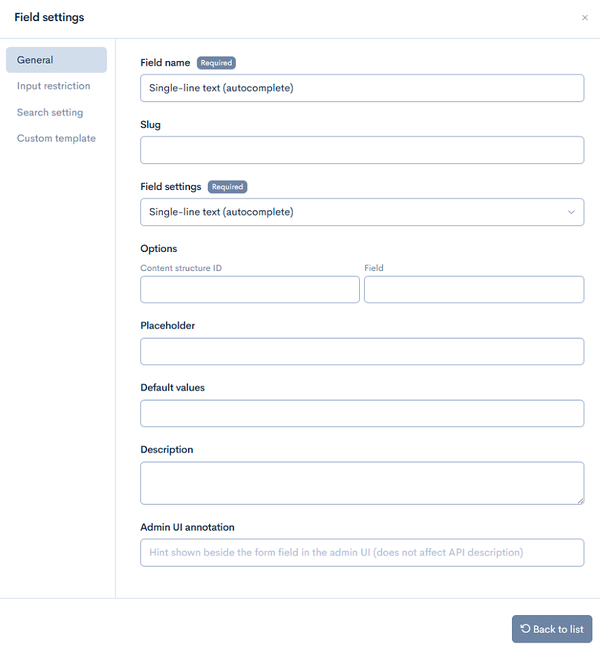

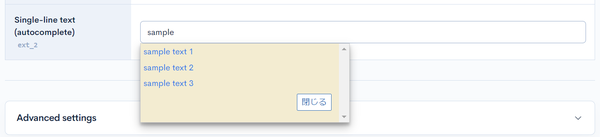

Single-line text (autocomplete)

Display of Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Content structure ID	Set the content structure group ID to display in autocomplete.
Field	Set the extension number to display in autocomplete. Example: subject,ext->>'1' ext_1
Placeholder	Enter the placeholder.
Default values	Enter the default value.
Annotation	Enter the Annotation.

Item Settings - Input Restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Search setting

Item	Description
Indexing	When enabled, an index is added to the database, and search results are responded quickly.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X":"Test Blog",
},

Multi-line text

Display of the Content Editing Screen

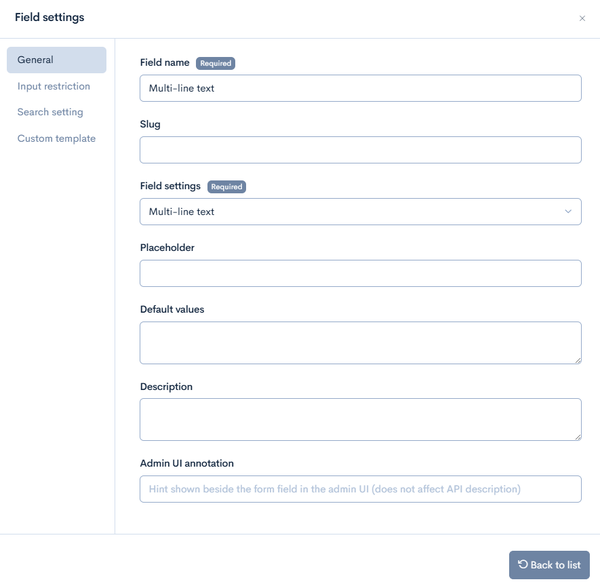

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Placeholder	Enter the placeholder.
Default values	Enter the default value.
Annotation	Enter the Annotation.

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Character limit	Set the minimum and maximum number of characters.

Field settings - Search settings

Item	Description
Indexing	When enabled, an index is added to the database, and search results are responded quickly.

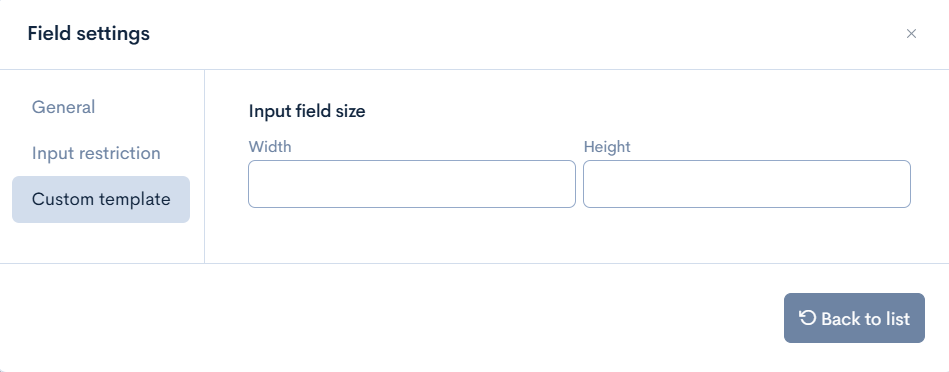

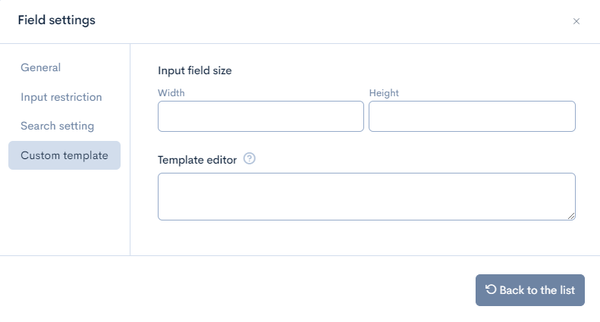

Field settings - Custom template

Item	Description
Input field size	Set the width and height of the text area to be displayed. Example: 200 It will be specified in pixels (px). It is also possible to set it by specifying the unit. Example: 200px, 50%
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": "Text Area",
},

WYSIWYG

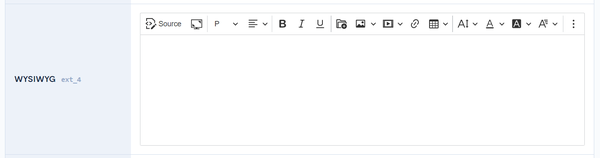

Display of the Content Editing Screen

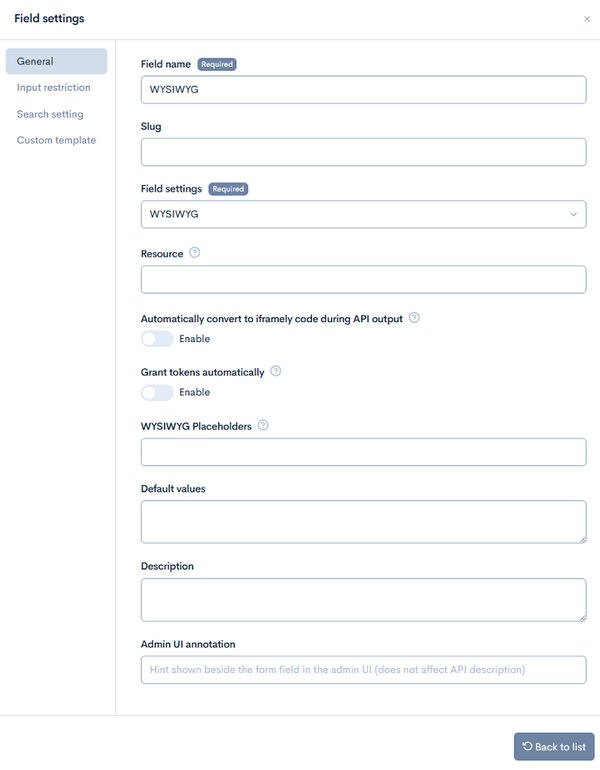

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Resource	Enter the path to specify the directory path to display when ckfinder is launched. Example: /files/user/test
Automatically convert to iframely code during API output	Enabling this will automatically convert the <oembed> tags used in the editor to Iframely and convert them to iframe code.
Grant tokens automatically	When enabled, API requests sent with dynamic access token security will automatically have the authentication parameter t=... added to the URLs of files stored in KurocoFiles(Restricted)(/files/ltd/). Please set this up when using files from the ltd folder within Wysiwyg with a dynamic access token.
WYSIWYG placeholder	Enter the string to be used as a placeholder, separated by commas. Create and use custom processing to convert the placeholder to any string.
Default values	Enter the default value.
Annotation	Enter a annotation.

Field settings - Input restriction

Item	Description
Required setting	Enabling this will make it a required input.

Field settings - Search settings

Item	Description
Indexing	Enabling this will add an index to the database, resulting in faster response times for search results.

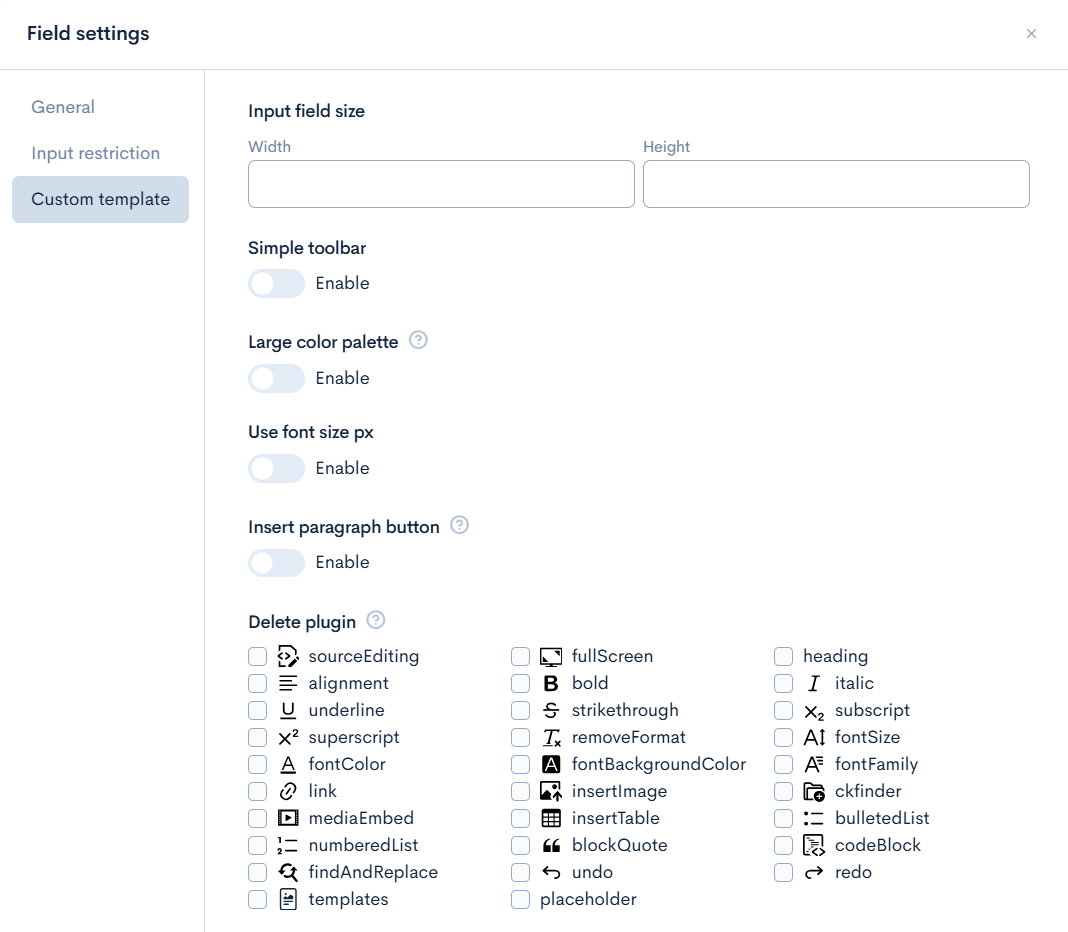

Field settings - Custom template

Item	Description
Input field size	Specify the width and height of the field. Example: 200px, 50% If no unit is specified, it will work as pixels (px).
Simple toolbar	Enabling this will display a simplified toolbar.
Large color palette	Enabling this allows setting more than 16 color codes.
Use font size px	Enabling this will specify the font size in pixels.
Delete plugin	Enter the unnecessary plugins. For detailed instructions, refer to How to Use WYSIWYG Editor.

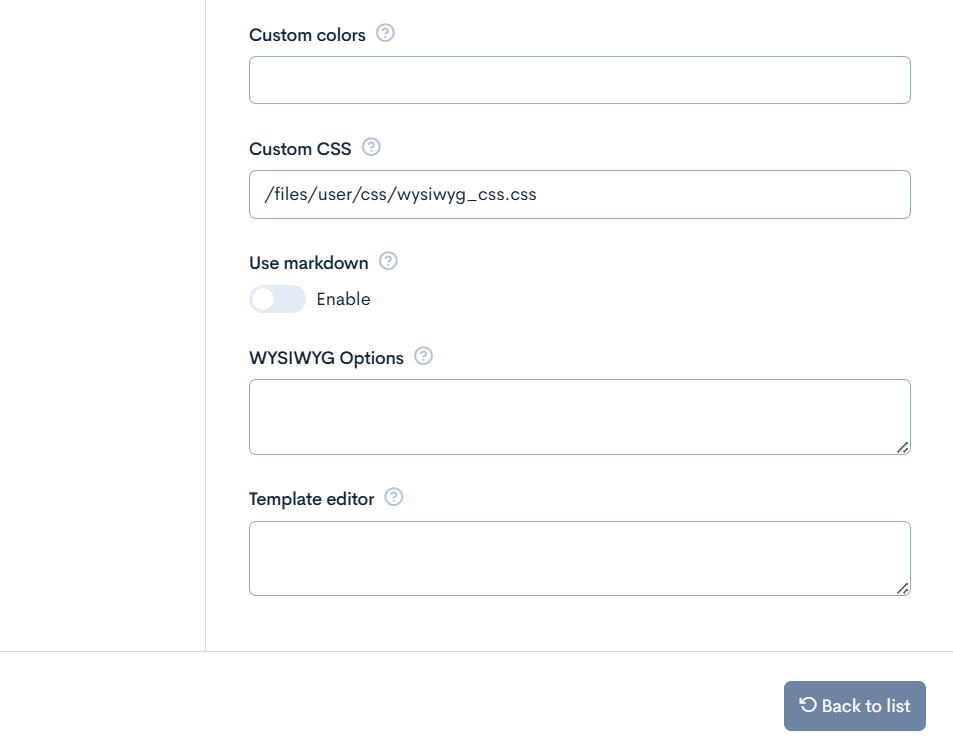

Custom colors	Set the color codes to be included in the color palette. For detailed instructions, refer to How to Set WYSIWYG Custom Colors.
Custom CSS	Set the URL of the CSS to load the specified CSS in the editor.
Use markdown	Enabling this will change the input format in source mode to Markdown.
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

"details": {
    "ext_X": "<p><strong>Wysiwyg</strong> Text Area</p>",
},

info

In a WYSIWYG editor, automatic corrections may occur for HTML tags, such as removal of empty tags, removal of script tags, and completion of unknown tags. If you want to strictly control the HTML, please use the HTML field.

HTML

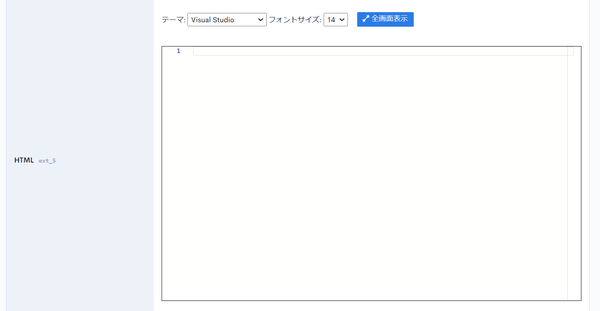

Display of the Content Editing Screen

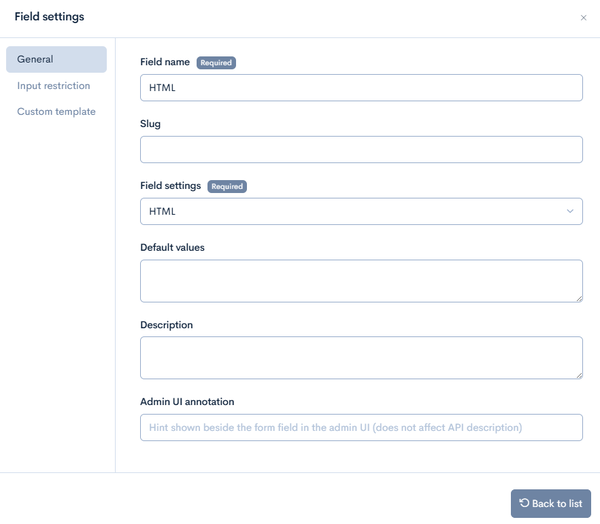

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Default values	Enter the default value for the item. *Even if "Allow all tags" is enabled, the use of <script> tags is not allowed in the default value.
Annotation	Enter a annotation.

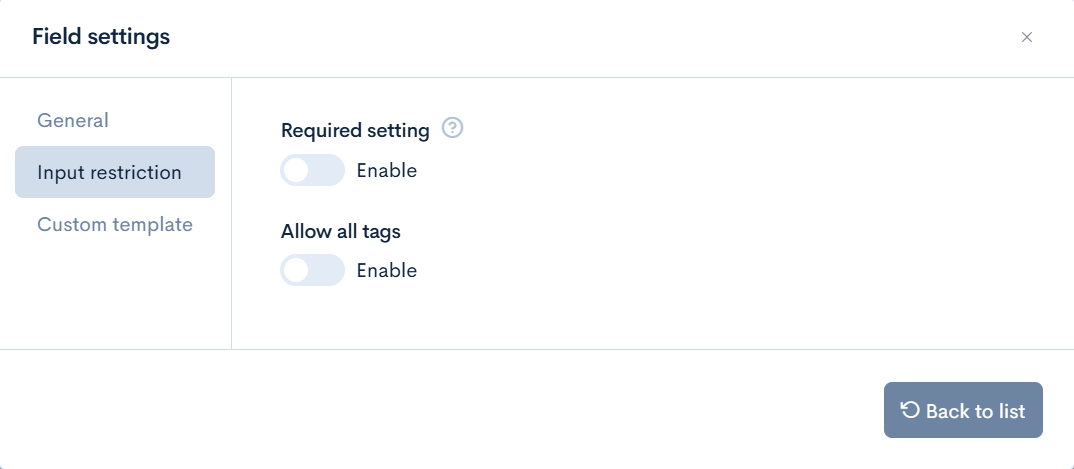

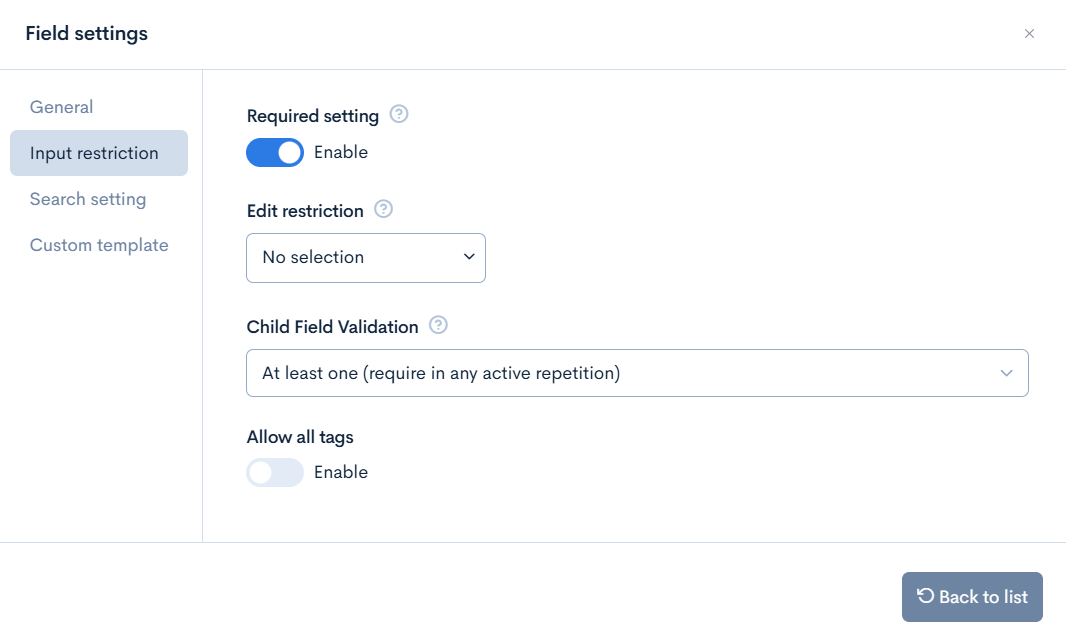

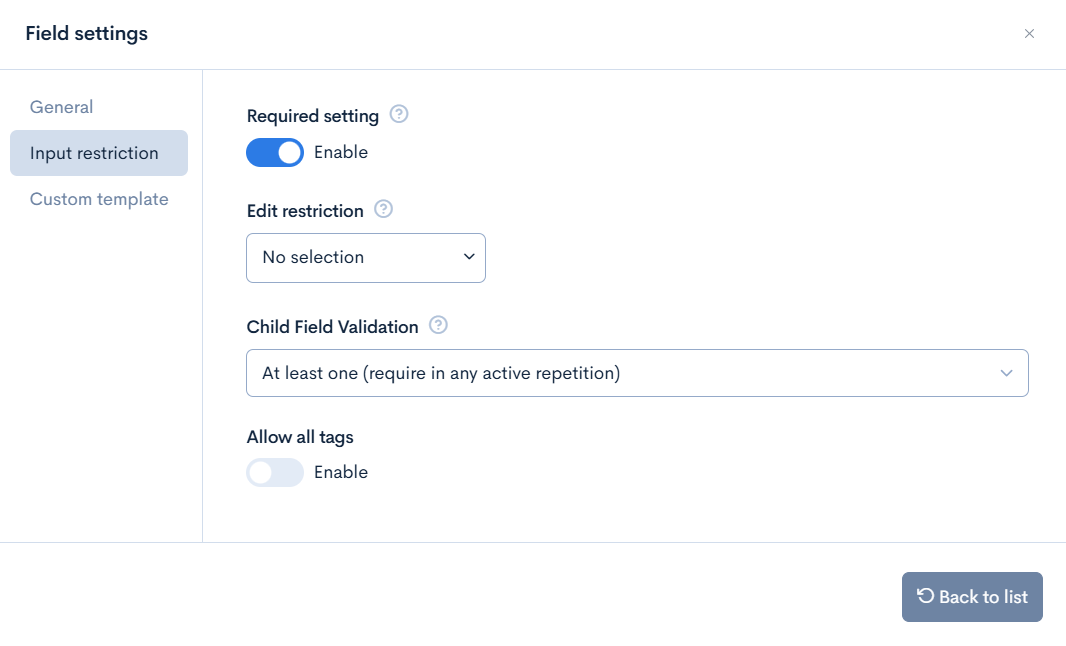

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Allow all tags	When enabled, all tags can be used.

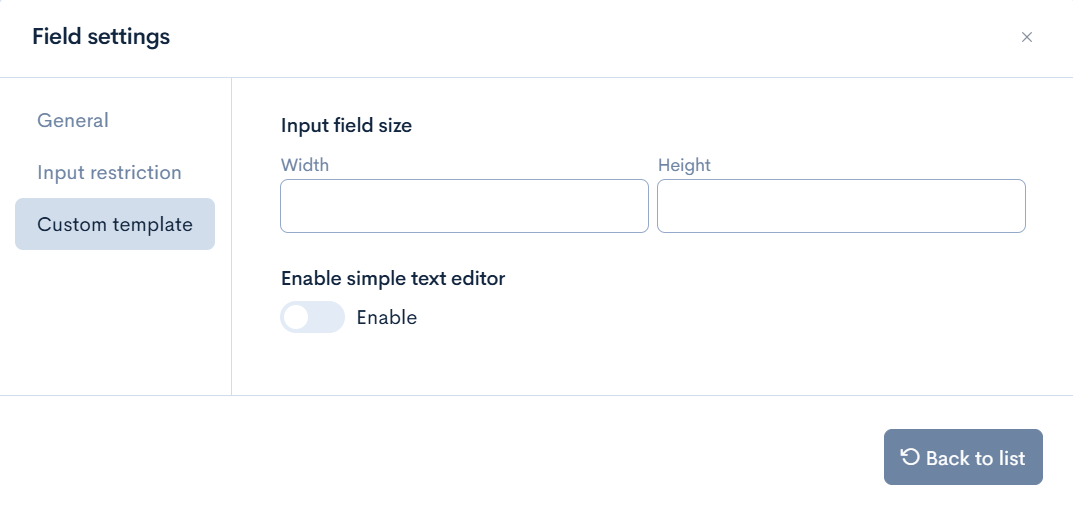

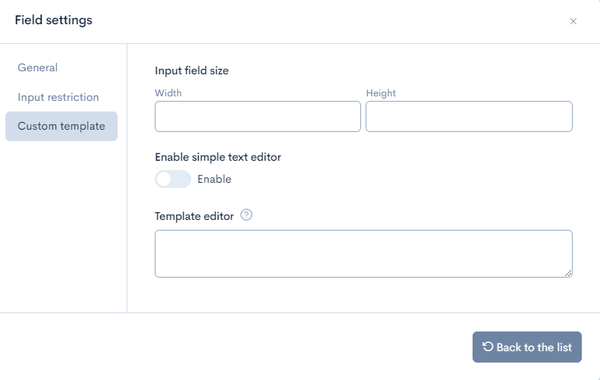

Field settings - Custom template

Item	Description
Input field size	Specify the width and height of the field. Example: 200 It will be specified in pixels (px). It is also possible to set it by specifying the unit. Example: 200px, 50%
Enable simple text editor	When enabled, the input for HTML becomes a simple text area.
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X":  "<div>\r\nhtml <p>text area</p>\r\n</div>",
},

Selection Related

Dropdown selection

Display of the Content Editing Screen

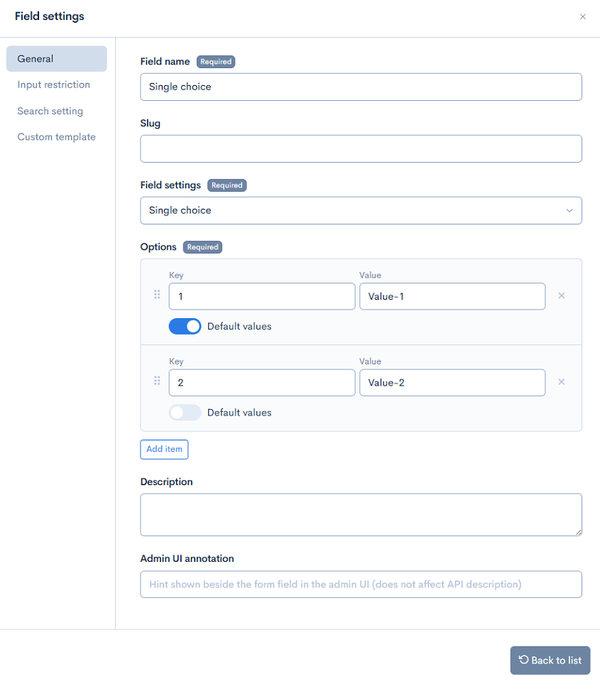

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Selection Options	Set the key and value of the selection options.
Annotation	Enter a annotation.

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Search settings

Item	Description
Indexing	When enabled, an index is created in the database, and search results are responded quickly.

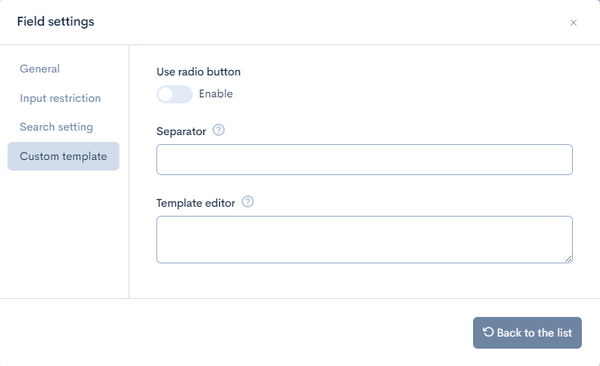

Field settings - Custom template

Item	Description
Use radio buttons	When enabled, the display of the content editing screen becomes radio buttons.
Separator	Enter a string to separate each radio button.
Template editor	Used when you want to change the display of the content editing screen.

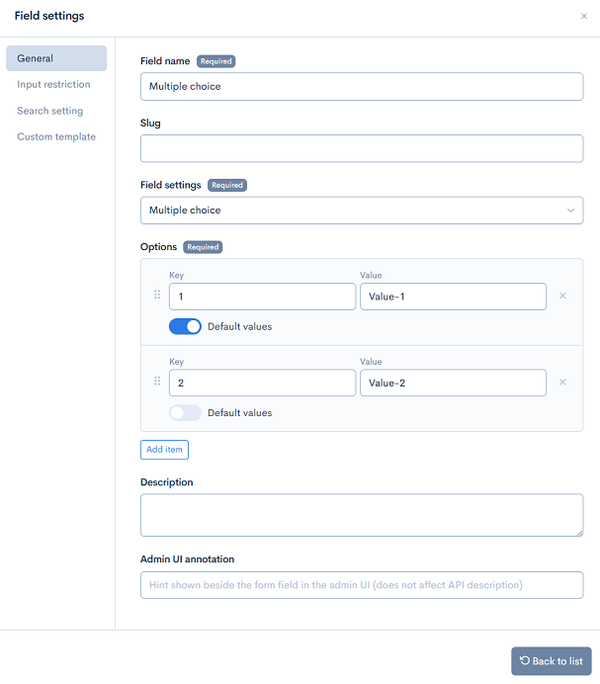

Multiple choice (checkbox)

Display of the Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Selection Options	Set the key and value of the selection options.
Annotation	Enter a annotation.

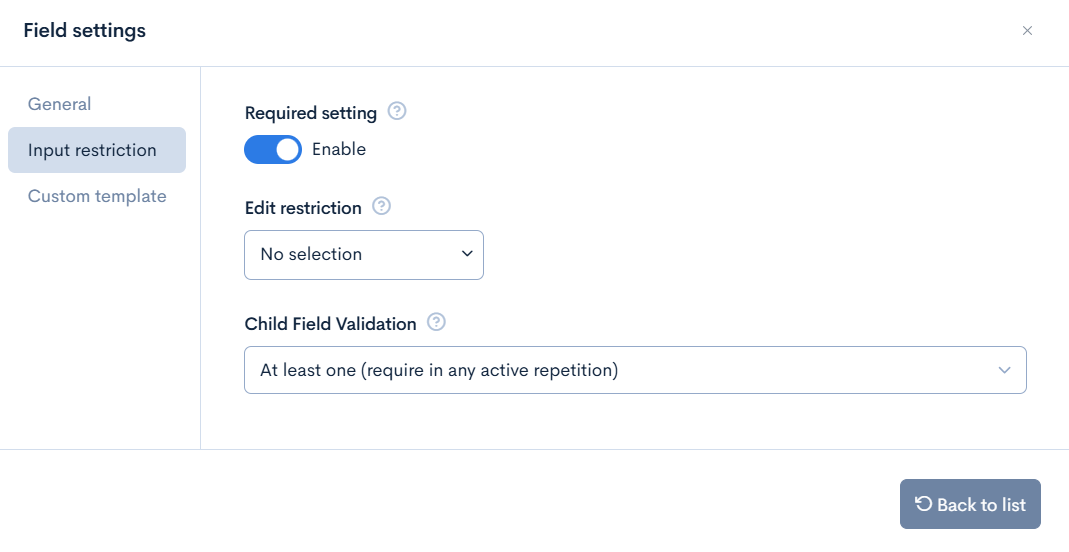

Field settings - Input restriction

Item	Description
Required setting	Enabling this makes it a required input.

Field settings - Search settings

Item	Description
Indexing	Enabling this adds an index to the database, resulting in faster search results and responses.

Field settings - Custom template

Item	Description
Separator	Enter a string to separate each radio button.
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": [
        {
            "key": "1",
            "label": "Multiple Choice_Option 1"
        },
        {
            "key": "2",
            "label": "Multiple Choice_Option 2"
        }
    ],
},

Date picker

Display on Content Editing Screen

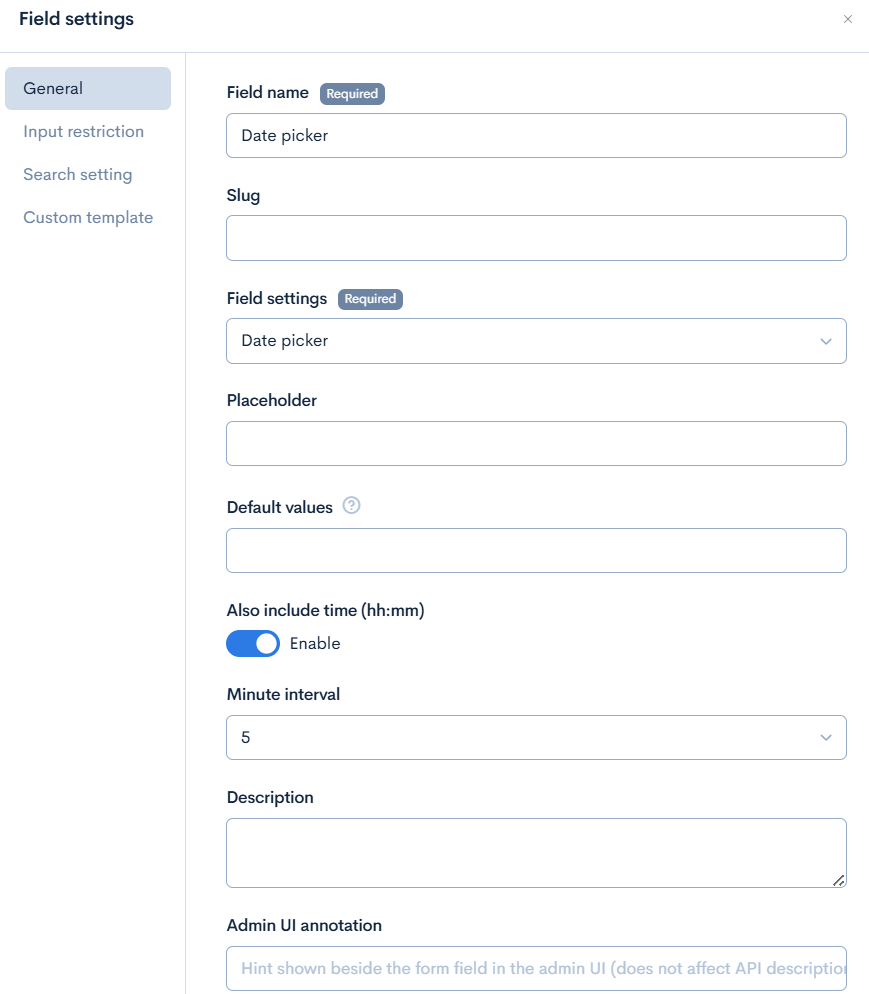

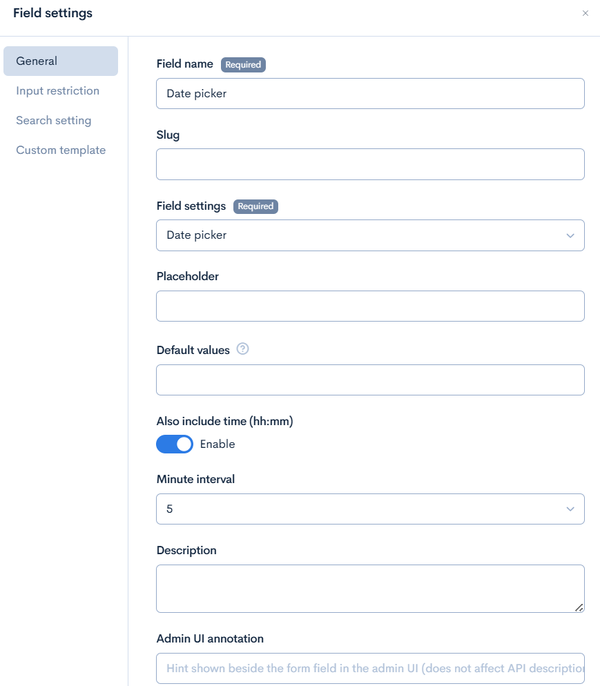

Field settings - General

Item	Description
Field name	Enter the display name on the content editing screen.
Slug	Enter the slug.
Also include time (hh:mm)	Enabling this allows setting the time.
Annotation	Enter a annotation.

Field settings - Input restriction

Item	Description
Required setting	Enabling this makes it a required input.

Field settings - Search settings

Item	Description
Indexing	Enabling this adds an index to the database, resulting in faster search results and responses.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X":"2021-06-04",
},

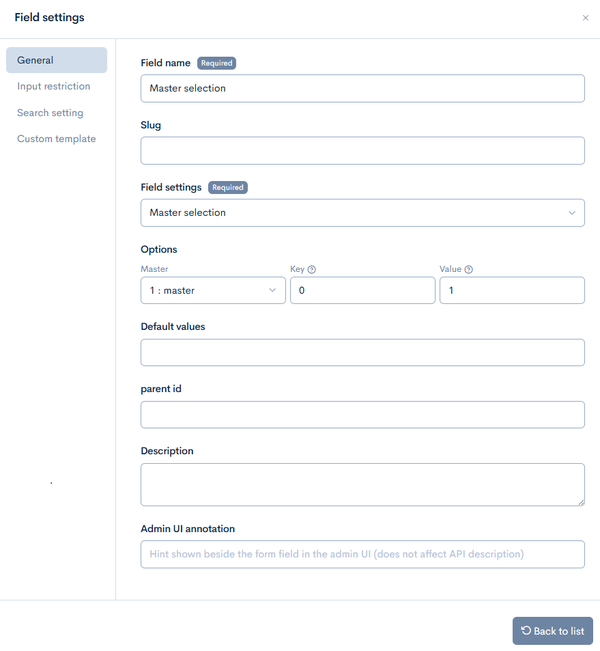

Master selection

Display on Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name on the content editing screen.
Slug	Enter the slug.
Options:Master	Specify the ID of the master to be used.
Options:Key	Specify the column number to be used as the key.
Options:Value	Specify the column number to be used as the value.
Default values	Specify the value that should be pre-selected on initial transition.
Parent ID	Specify the parent ID.
Annotation	Enter a annotation.

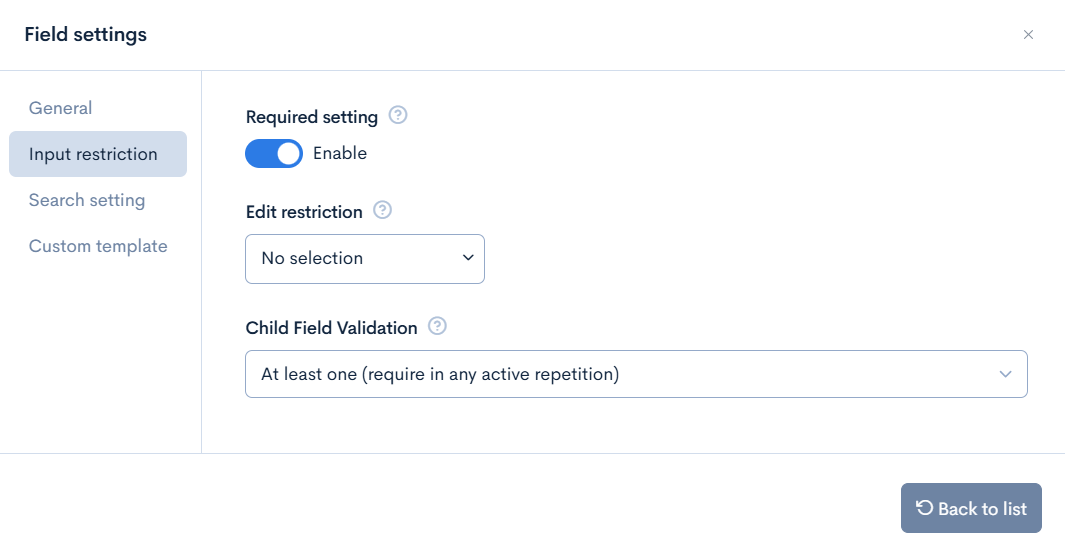

Field settings - Input restriction

Item	Description
Required setting	Enabling this makes it a required input.

Field settings - Search settings

Item	Description
Indexing	When enabled, an index is created in the database, resulting in faster search results and responses.

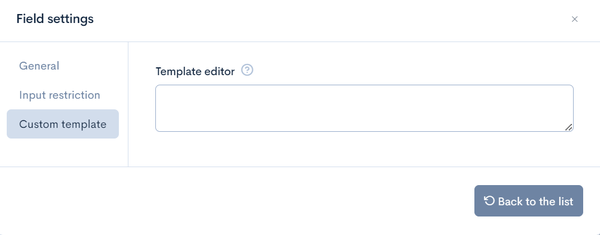

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
        "key": "key",
        "label": "0"
     },
},

Relational data selection

Display of Content Editing Screen

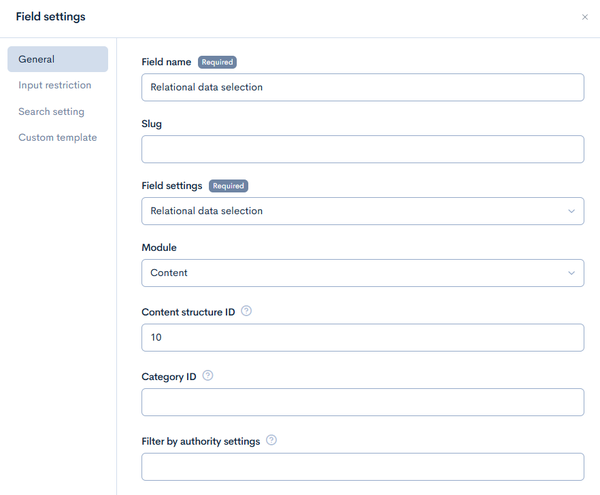

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the Slug.
Module	Specify the function to be selected as related information.
Content structure ID	Specify the ID of the content structure to be selected as related information if the module is set to content.
Category ID	In the case of the module is set to content Specify the ID of the category to be selected as related information if the module is set to content.

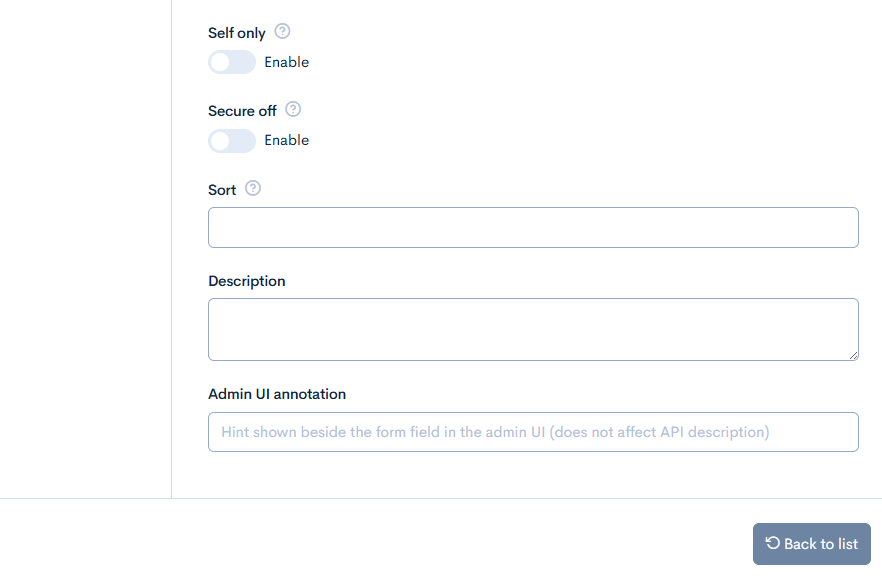

Filter by Permission Settings	In the case of the module is set to content or member Retrieve related information that can be executed by users who are logged in by specifying insert, update, delete.
Only Mine	In the case of the module is set to content Only related information created by users who are logged in will be retrieved.
Disable Security	In the case of the module is set to content Disables access restrictions and allows retrieval of related information.
Sort Order	Set the sort order. Specify it as topics_id=ASC. If you want to specify multiple combinations, you can specify it as subject=ASC,topics_id=ASC.
Annotation	Enter an annotation.

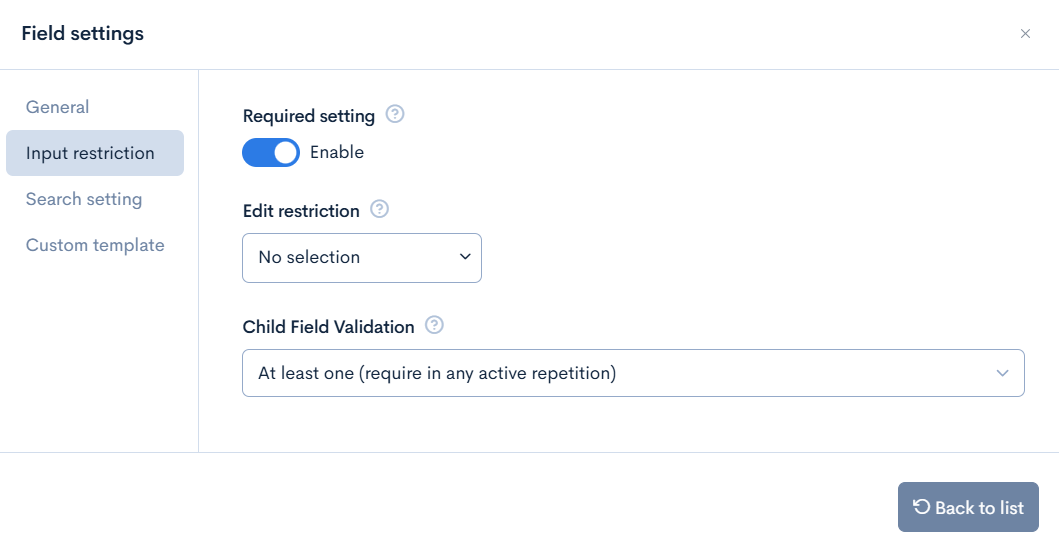

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Search settings

Item	Description
Indexing	When enabled, an index is created in the database, resulting in faster search results and responses.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
        "module_type": "topics",
        "module_id": 959
    },
},

Bool

Display of Content Editing Screen

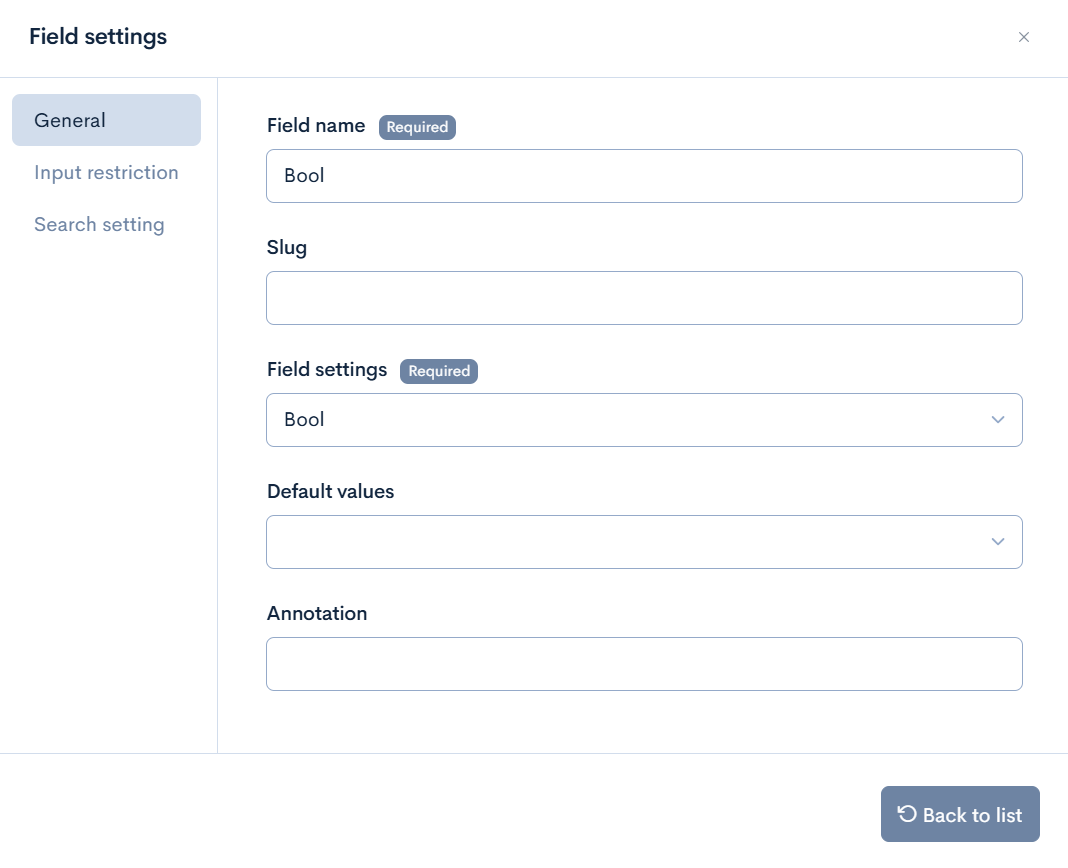

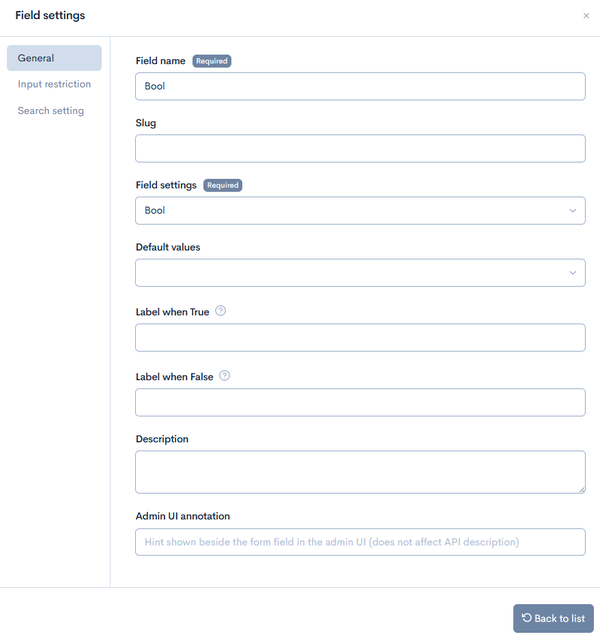

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the Slug.
Default values	Select the default value to be set as true/false.
Annotation	Enter an annotation.

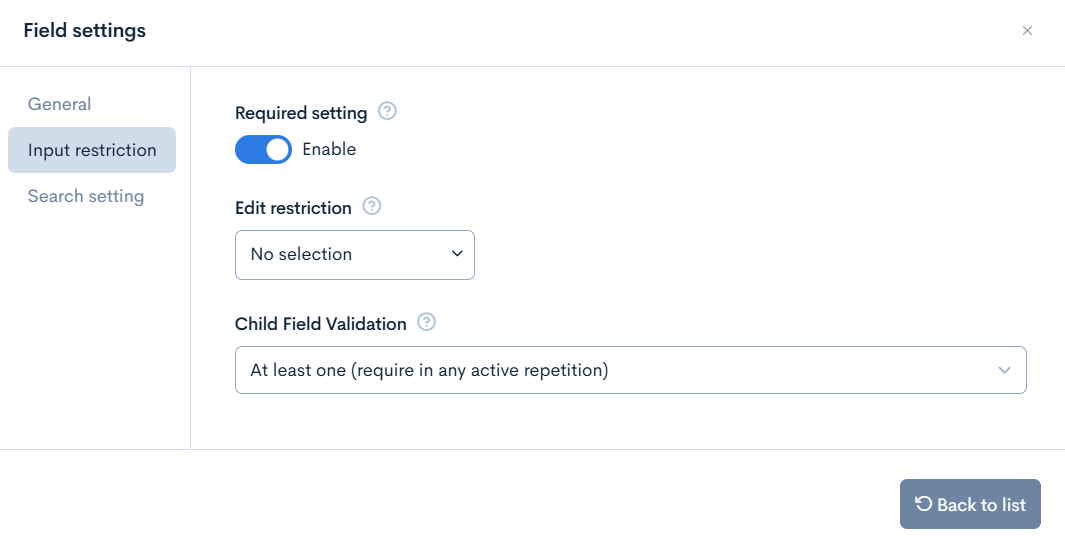

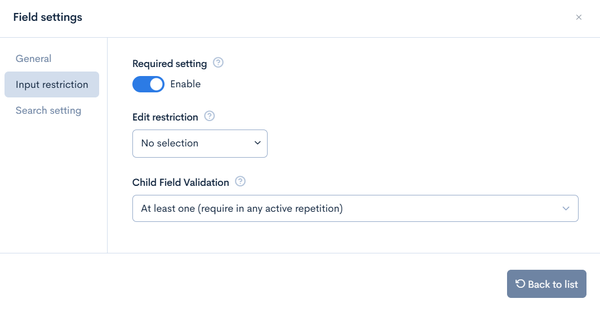

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Search settings

Item	Description
Indexing	When enabled, an index is applied to the database, resulting in faster search results and responses.

Field settings - Custom template

None

JSON Response

details: {
    "ext_X": false
},

File Related

Image (upload to KurocoFiles)

Display of the Content Editing Screen

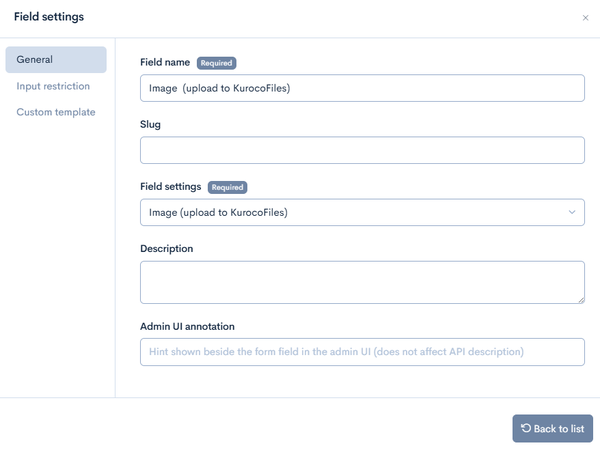

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Annotation	Enter a annotation.

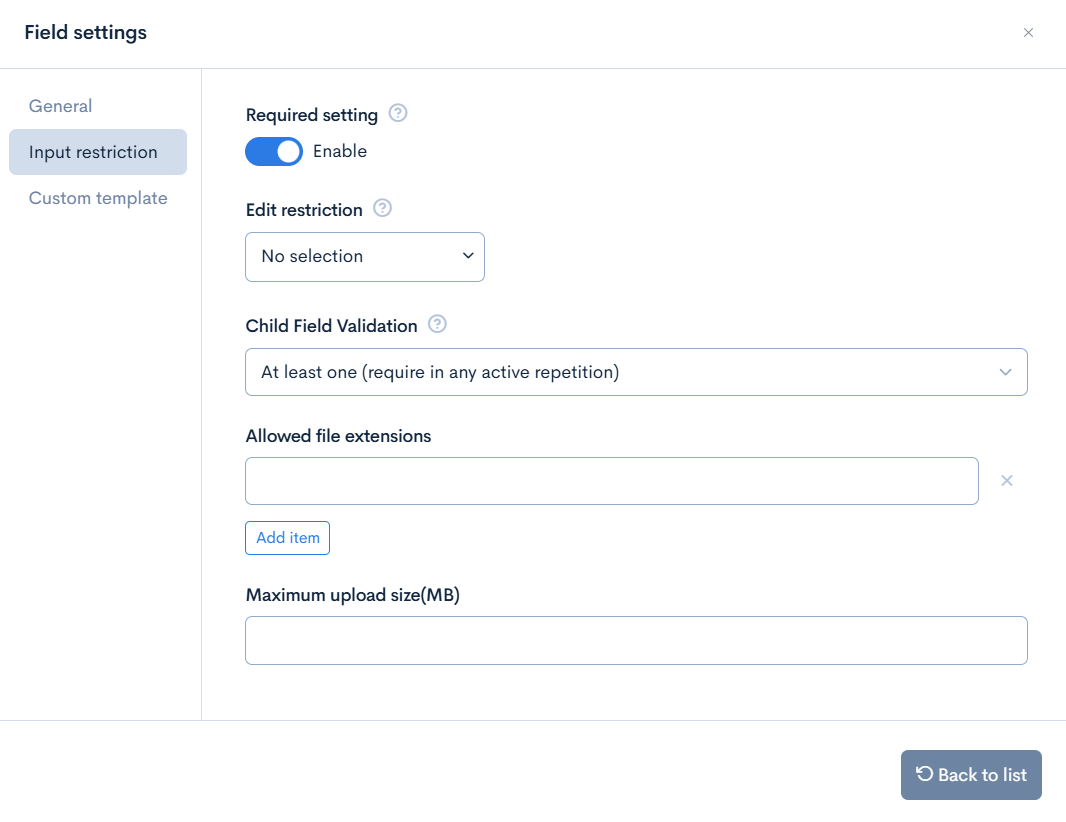

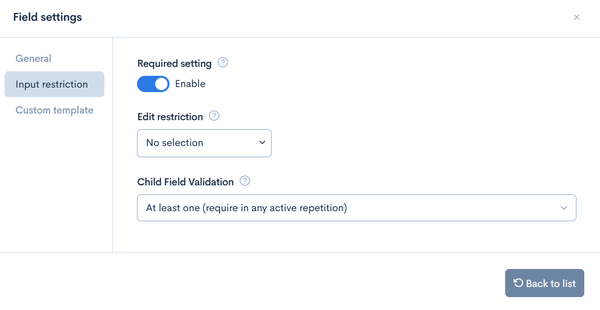

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Allowed file extension	Specify the file extensions allowed for upload. If not specified, the following extensions are allowed: jpg, jpeg, gif, png, svg.
Maximum upload file size (MB)	Limits the size of the uploaded image.

Field settings - Custom template

Item	Description
Hide caption	When enabled, hides the input field for image description in the content editing screen.
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
        "id": "sample_0",
        "url": "https://sample.g.kuroco-img.app/v=1623673449/files/topics/sample.png",
        "desc": "",
        "url_org": "https://hasebetest.g.kuroco-img.app/files/topics/sample.png"
    },
},

File (upload to KurocoFiles)

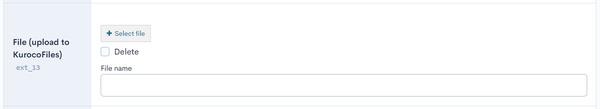

Display of the Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Annotation	Enter a annotation.

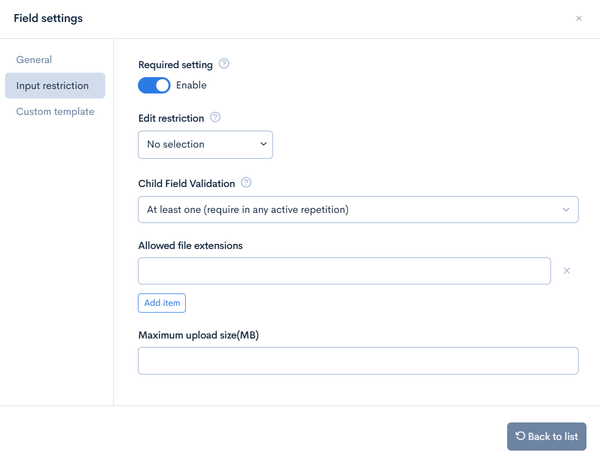

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Allowed file extensions	Specify the file extensions allowed for upload. If not specified, all extensions are allowed.
Maximum upload file size (MB)	Limits the size of the uploaded file.

Field settings - Custom template

Item	Description
Hide the input field	When enabled, hides the input field for file name in the content editing screen.
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
      "id": "sample_0",
      "url": "https://sample.g.kuroco-img.app/v=1623673449/files/topics/sample_0.pdf",
      "url_org": "https://sample.g.kuroco-img.app/files/topics/sample_0.pdf",
      "dl_link": "https://sample.g.kuroco.app/direct/topics/topics_file_download/?topics_id=960&ext_no=09&index=0",
      "desc": "test"
    },
},

File (upload to GCS)

File (upload to GCS) is available after integration with Firebase. Please refer to the following document for details on how to work with Firebase. Cloud storage integration with Firebase

Display of Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Inline	When enabled, the content will be displayed in the browser when clicked from the admin screen. The API response remains the same.
Annotation	Enter a annotation.

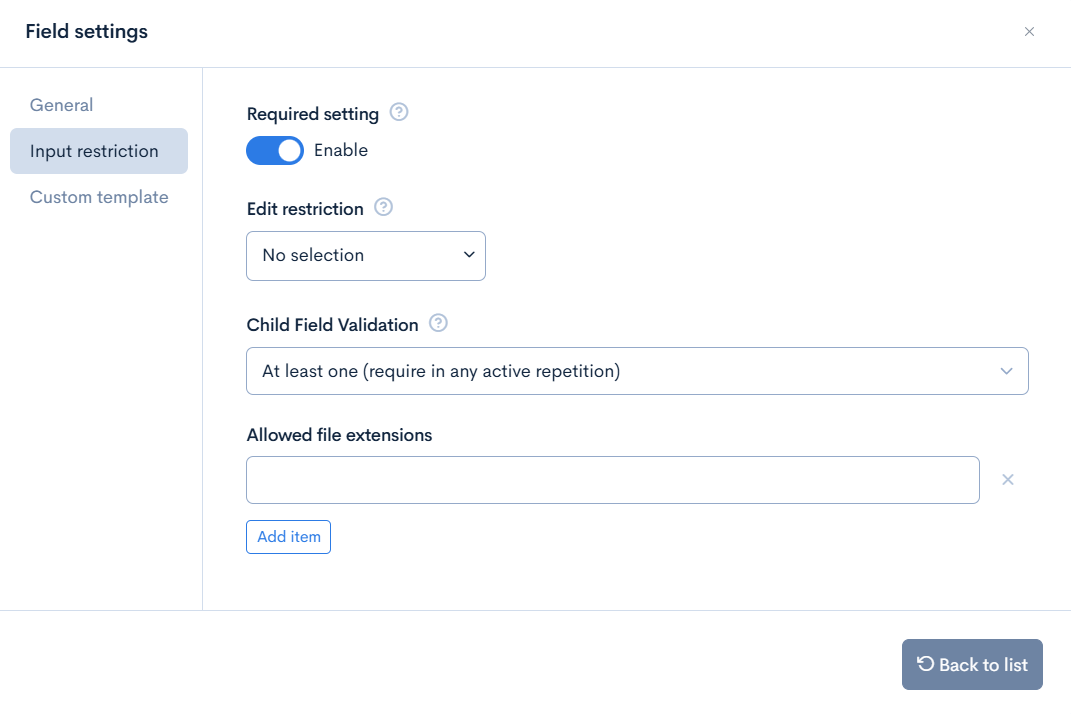

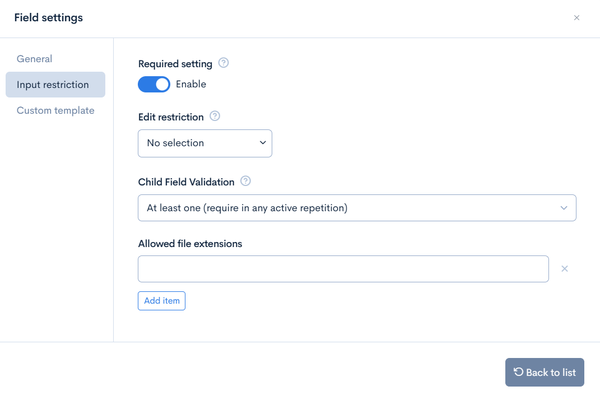

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Allowed file extensions	Specify the file extensions allowed for upload. If not specified, all extensions are allowed. Reference: What file formats does the file manager support?

Field settings - Custom template

Item	Description
Hide the input field	When enabled, the input field for the file name will be hidden on the content editing screen.
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
      "id": "sample_0",
      "url": "https://storage.googleapis.com/kuroco-test.appspot.com/files/topics/sample.png?X-Goog-Algorithm=xxxxx",
      "desc": ""
    },
},

File (upload to S3)

File (upload to S3) is available after integration with Amazon S3. Please refer to the following document for details on how to work with Amazon S3. Integrating and storing files with Amazon S3

Display of Content Editing Screen

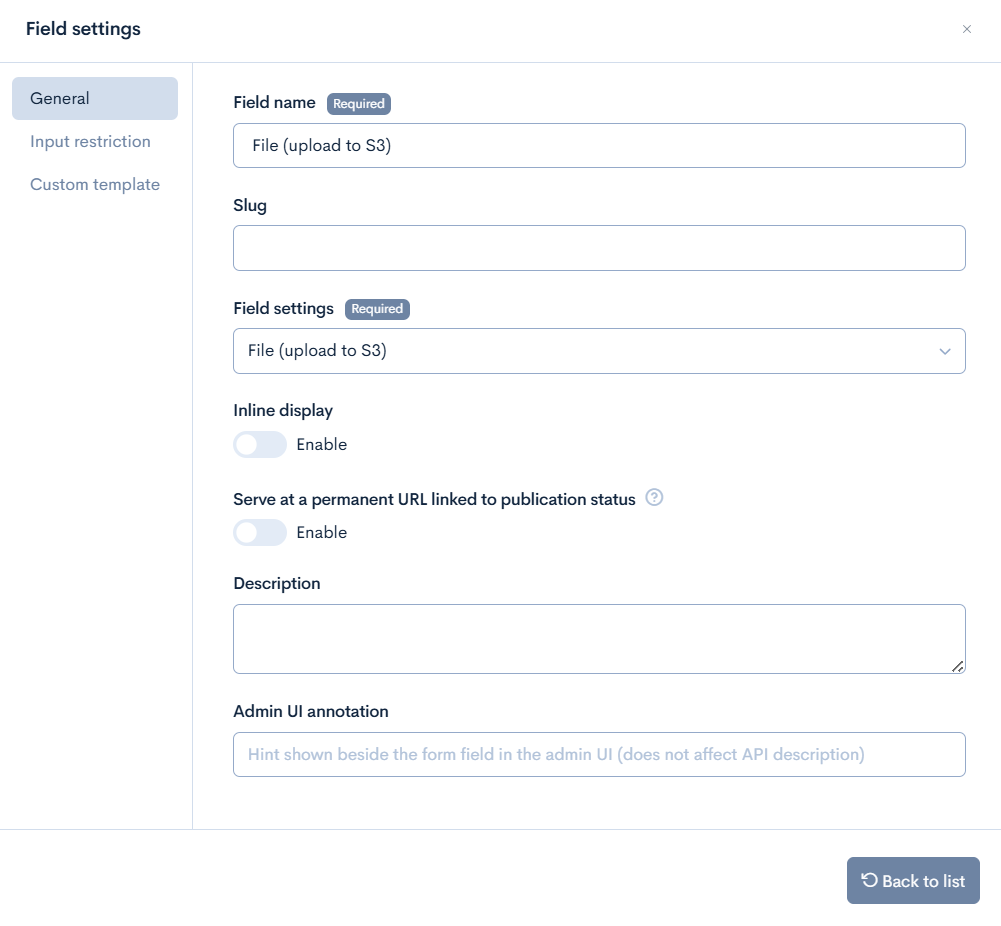

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Inline	When enabled, the content will be displayed in the browser when clicked from the admin screen. The API response will not change.
Annotation	Enter an annotation.

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Allowed file extensions	Specify the file extensions allowed for upload. If not specified, all extensions are allowed. Reference: What file formats does the file manager support?

Field settings - Custom template

Item	Description
Hide the input field	When enabled, the input field for the file name will be hidden on the content editing screen.
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
      "id": "sample_0",
      "url": "https://kuroco-sample.s3.ap-northeast-1.amazonaws.com/files/topics/sample_0.jpeg?response-content-disposition=xxxxx",
      "desc": ""
    },
},

File (from File manager)

Display of the Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Resource	Specify the directory path you want to display when ckfinder is launched. Example: /files/user/
Annotation	Enter an annotation.

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X":"https://sample.g.kuroco-img.app/v=1621239477/files/user/sample.png",
},

Video (Vimeo)

Video(Vimeo) is available after integration with Vimeo. Please refer to the following document for details on how to work with Vimeo.
How to Connect to Vimeo and Upload Videos

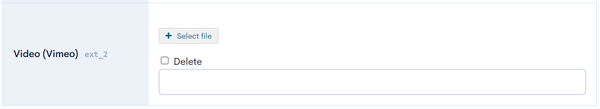

Display of the Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Annotation	Enter the annotation.

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Allowed file extension	Specify the file extensions allowed for upload. If not specified, the following extensions are allowed: 3gp, avi, mov, mp4, mpg, mts, m2ts.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_col_14": {
      "id": "sample_0",
      "url": "https://player.vimeo.com/video/xxxxxxxxx",
      "desc": "",
      "image_url": "https://sample.g.kuroco-img.app/v=1234567890/files/topics/sample_0.jpg"
    },
}

Others

API field

API fields are used to utilize response data from the specified endpoints. For detailed configuration instructions, refer to Setting up API Fields for Current Weather Input with OpenWeatherMap.

Display of Content Editing Screen

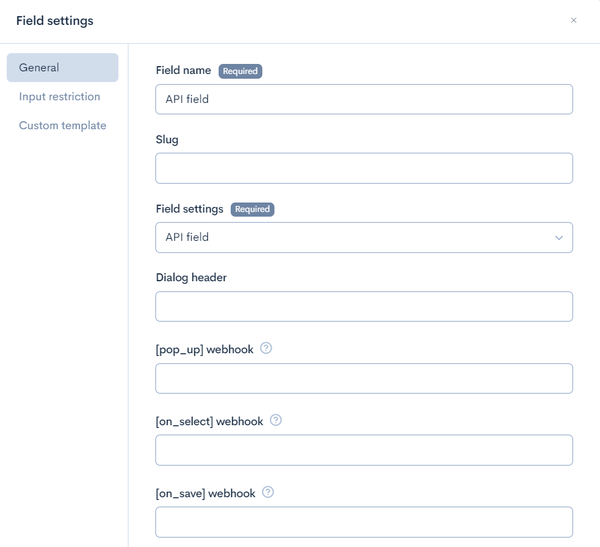

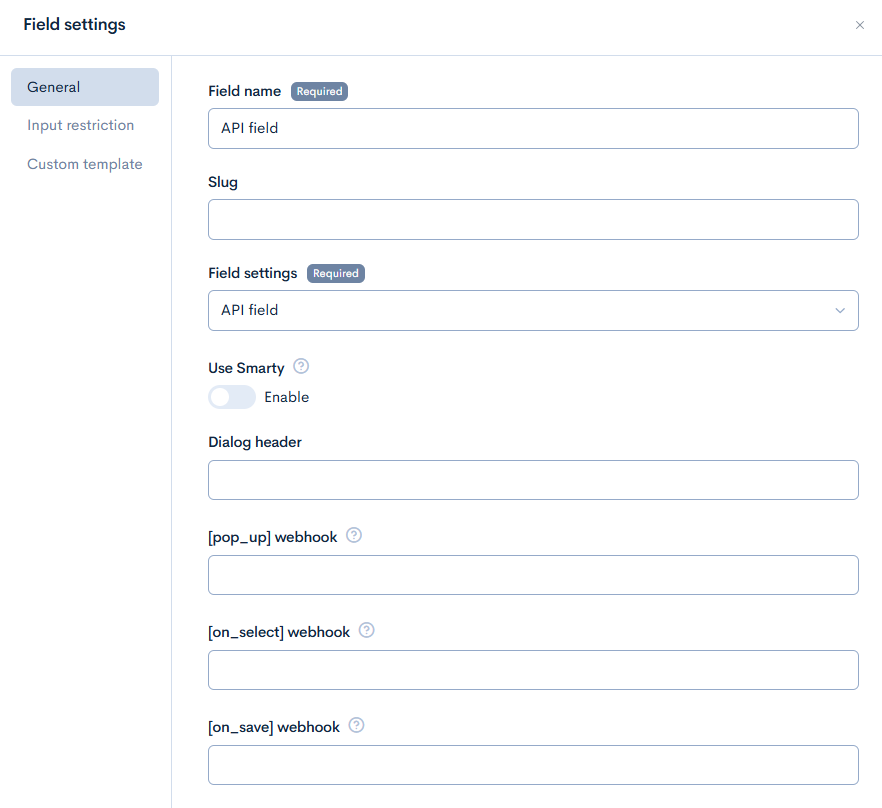

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Dialog header	Specify the main title displayed in the popup window.
[pop_up] webhook	When the popup window is displayed, send a webhook to the specified URL and create the column selection state with the value stored in the response data. The items to be sent are as follows: - topics_id: Strings - hash: Strings - value: Strings The response should be received in the format {"data":["127", "18", "628"]}, with the values in the array becoming the values specified in the "Save Value" for each column.
[on_select] webhook	Send a webhook to the specified URL when the final column is selected. The items to be sent are as follows: - topics_id: Strings - hash: Strings - selected_date: Array - value_list: Array
[on_save] webhook	When [Select] is clicked, send a webhook to the specified URL and save the value from the data in the webhook instead of the "Save Value". The items to be sent are as follows: - topics_id: Strings - hash: Strings - selected_date: Array - value_list: Array The response should be received in the format {"data":{"value":"668","display_value":"668"}}.

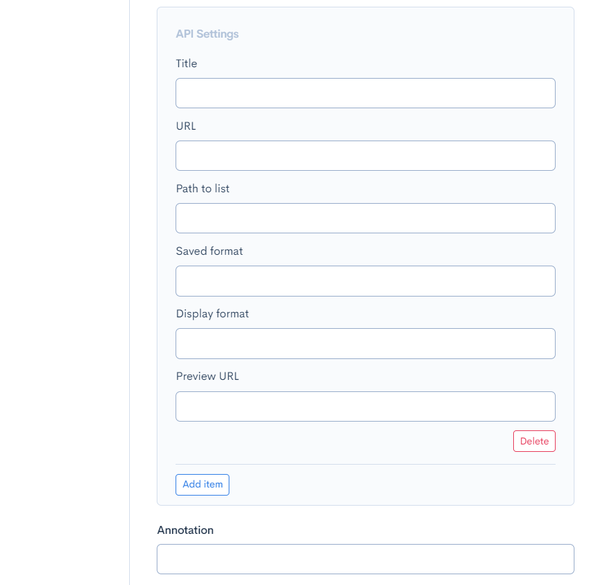

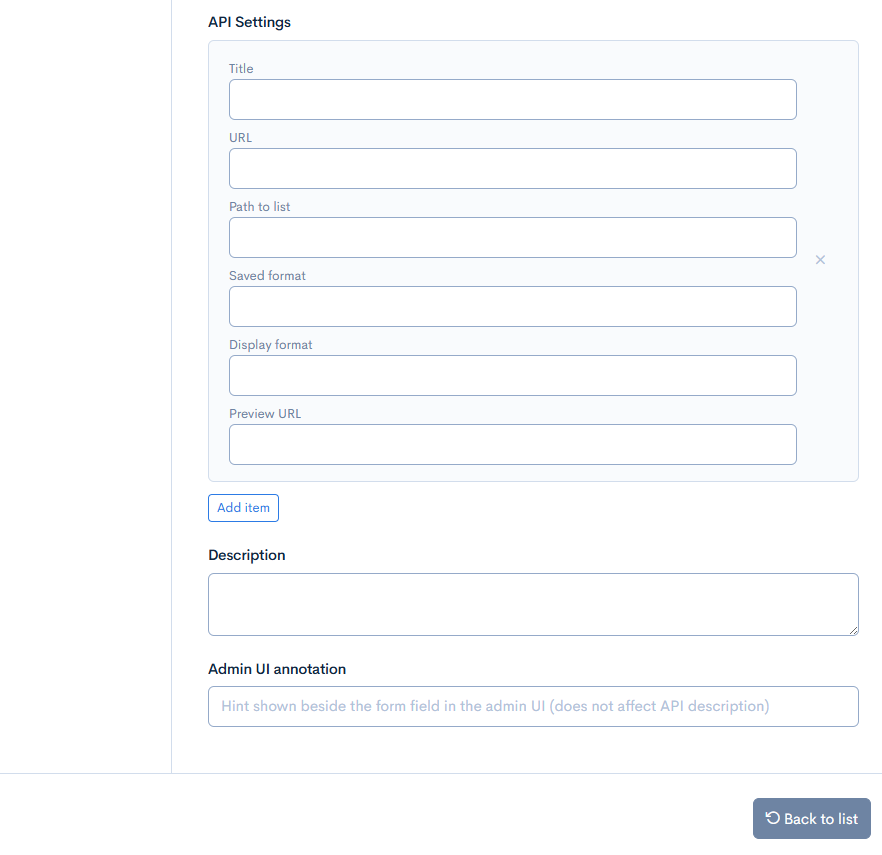

API Settings - Title	Specify the item title in the popup window.
API Settings - URL	Specify the endpoint to be used in the popup window. The response data from the previous column can be used in the format %key%.
API Settings - Path to list	Specify the fields to be used from the response data.
API Settings - Saved format	Set the data to be saved when [Select] is clicked. The response data can be used in the format %key%.
API Settings - Display format	Set the data to be displayed in the popup window. The response data can be used in the format %key%.
API Settings - Preview URL	Specify the URL to be used for preview display. The response data can be used in the format %key%. The URL must allow display in an iframe.
Annotation	Enter a annotation.

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

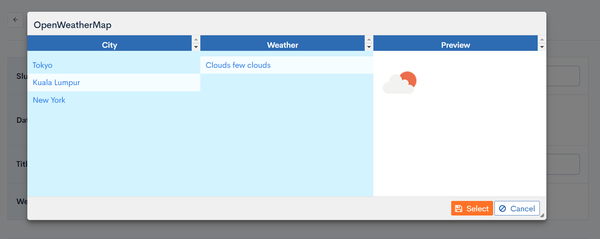

Popup Window Example

JSON Response

details: {
    "ext_X":"Selected value",
},

Counter

The counter can be increased or decreased in value by hitting the Topics::increment endpoint.   This is used to set the number of PV number etc.   Implementing view-based page rankings in Google Analytics

Display of Content Editing Screen

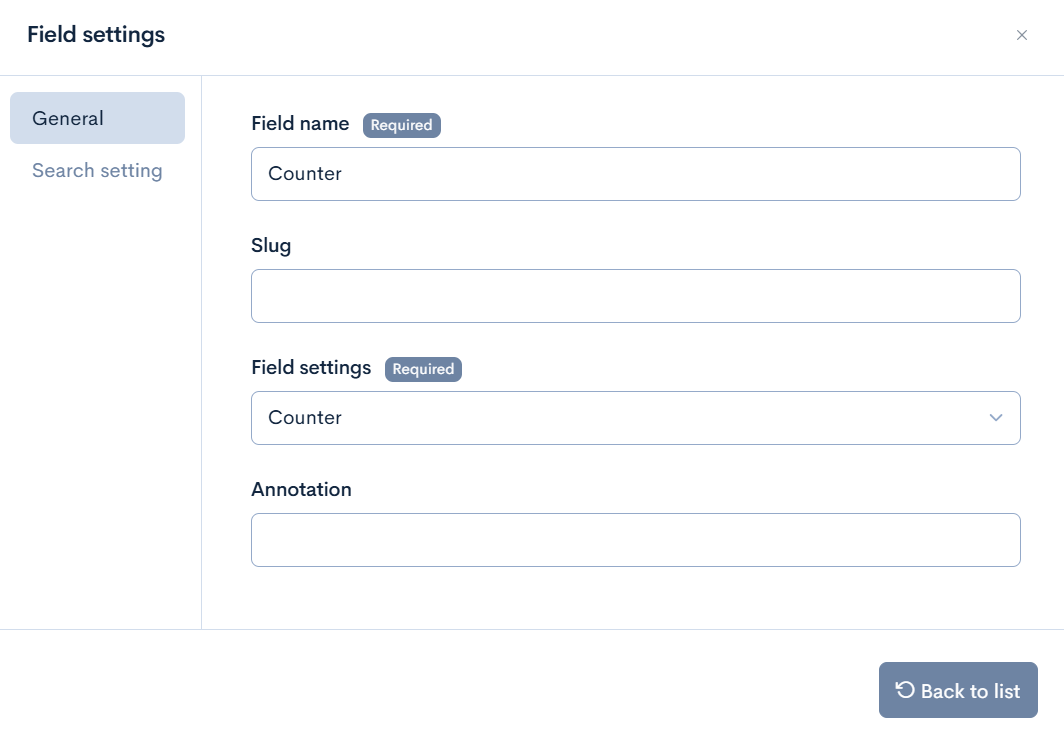

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Annotation	Enter a annotation.

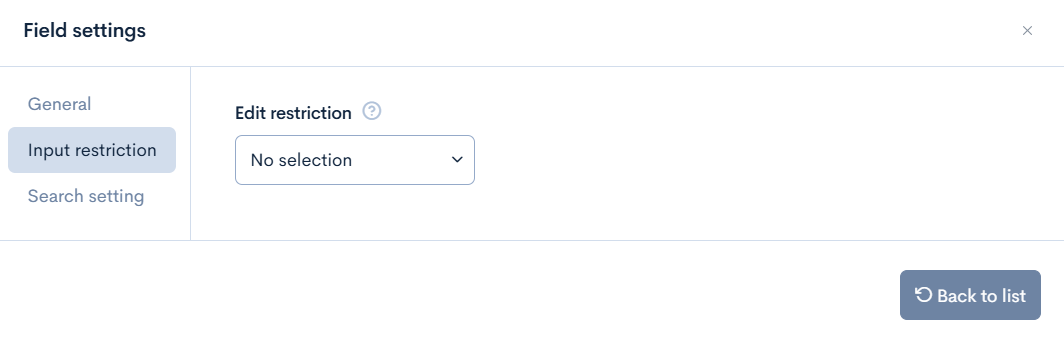

Field settings - Input restriction

None

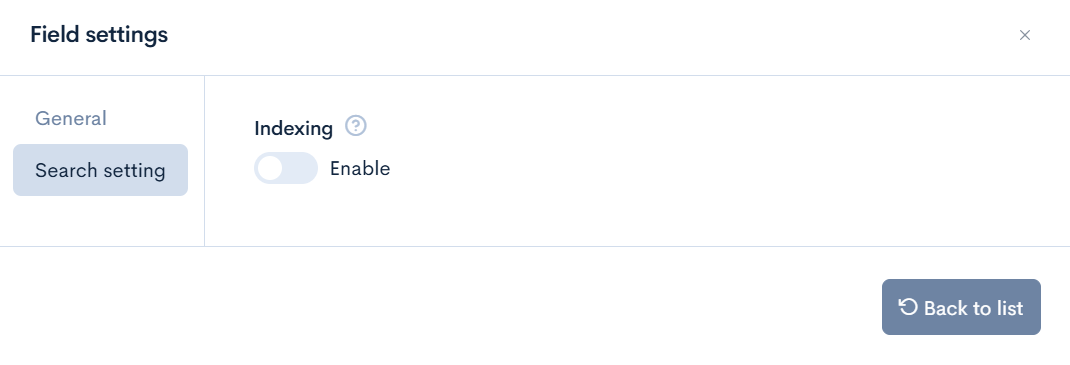

Field settings - Search settings

Item	Description
Indexing	When enabled, an index is added to the database, resulting in faster search results and responses.

Field settings - Custom template

None

JSON Response

details: {
    "ext_X": X,
},

Link

Display of Content Editing Screen

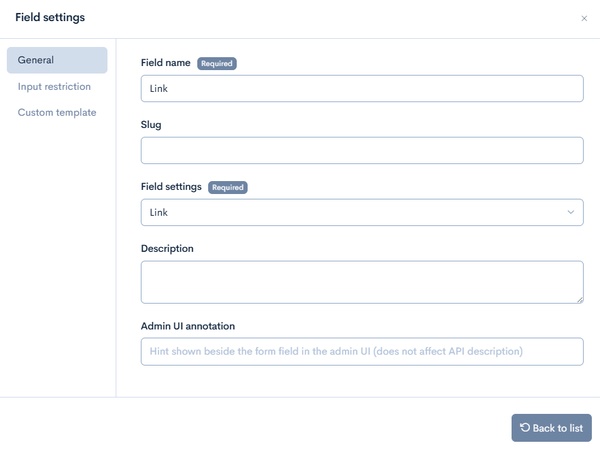

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Annotation	Enter the Annotation.

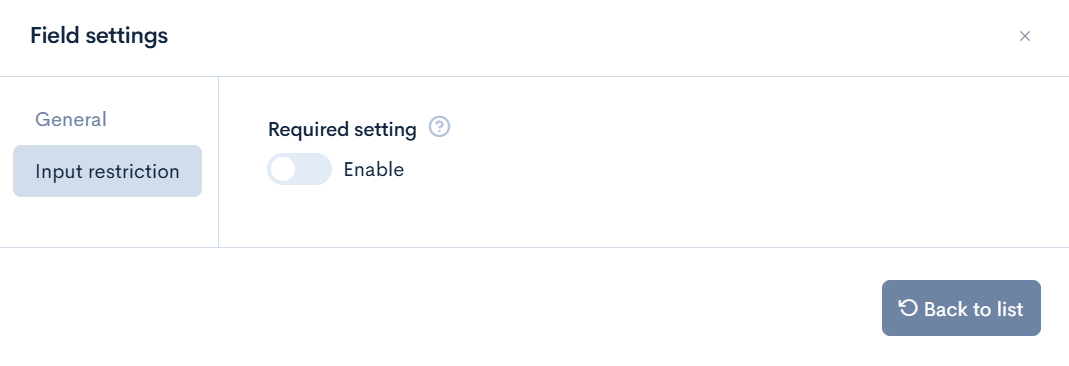

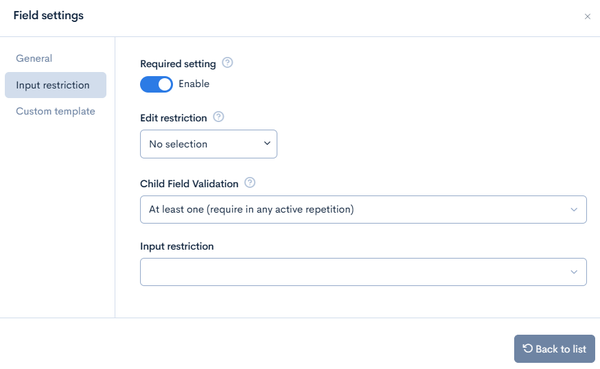

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
        "url": "https://kuroco.app/",
        "title": "Kuroco"
    },
},

Number

Display of Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Annotation	Enter the Annotation.

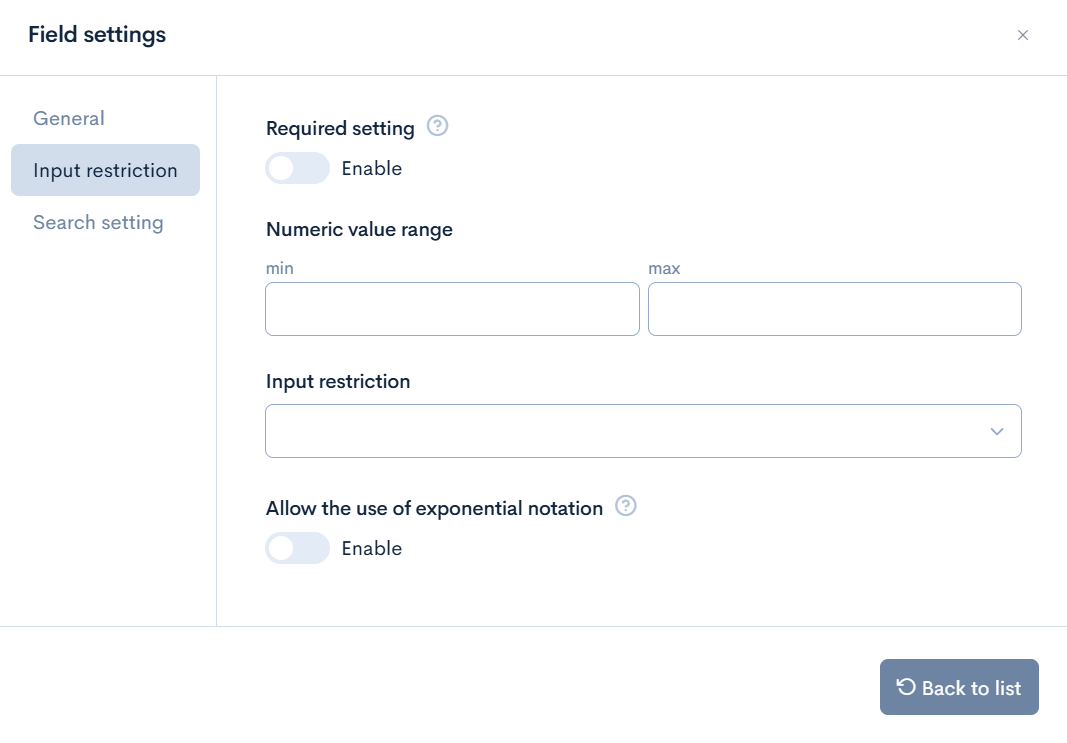

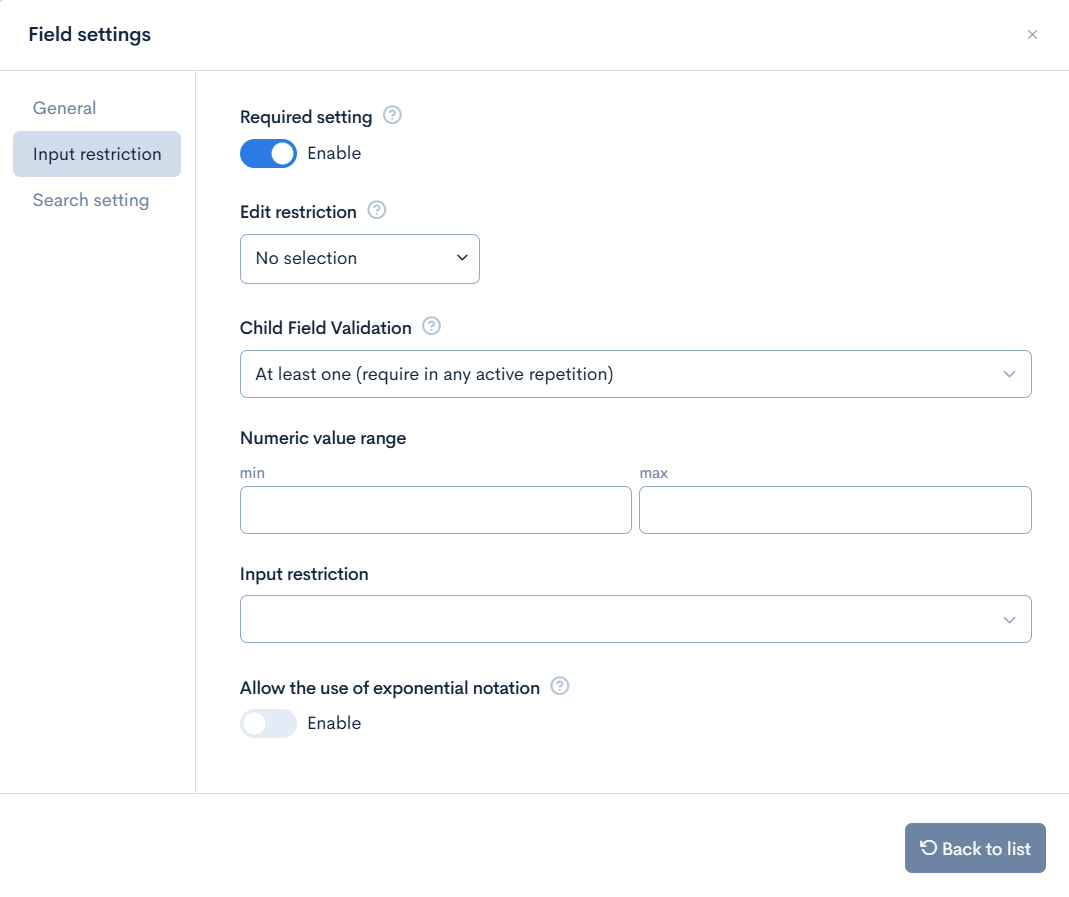

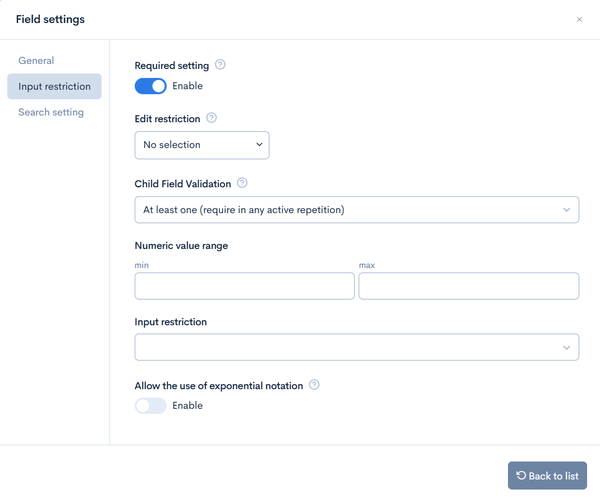

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.
Numeric value range	Set the minimum and maximum values.
Input restriction	You can restrict the input to a specific range of numbers.

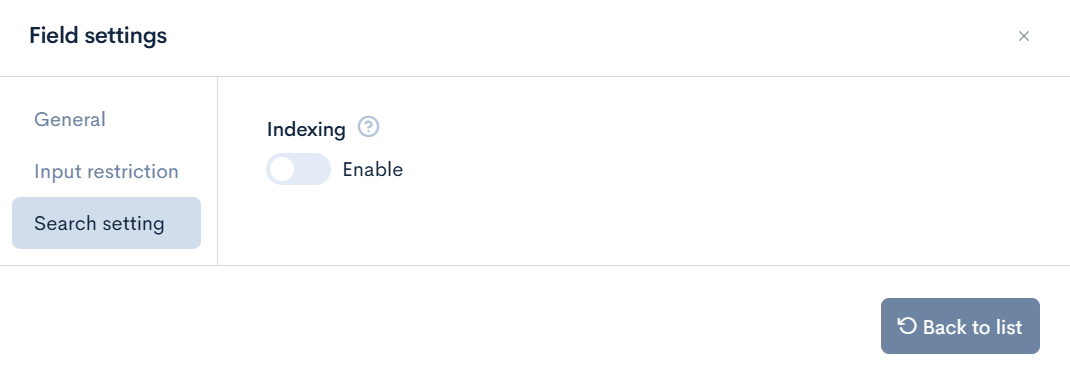

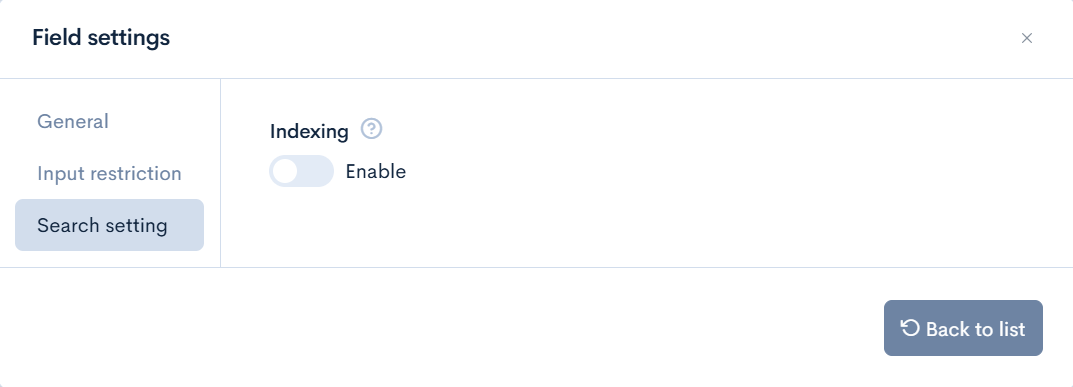

Field settings - Search settings

Item	Description
Indexing	When enabled, an index is created in the database, resulting in faster search results and responses.

Field settings - Custom template

None

JSON Response

details: {
    "ext_X":123,
},

Table

Display of Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Number of rows	Specify the number of rows in the table.
Number of columns	Specify the number of columns in the table.
Cell settings	Enter the value of the cell. To specify the cell in the second row from the top and the third column from the left, write 2-3. The automatically added header row will be the 0th row.
Annotation	Enter a annotation.

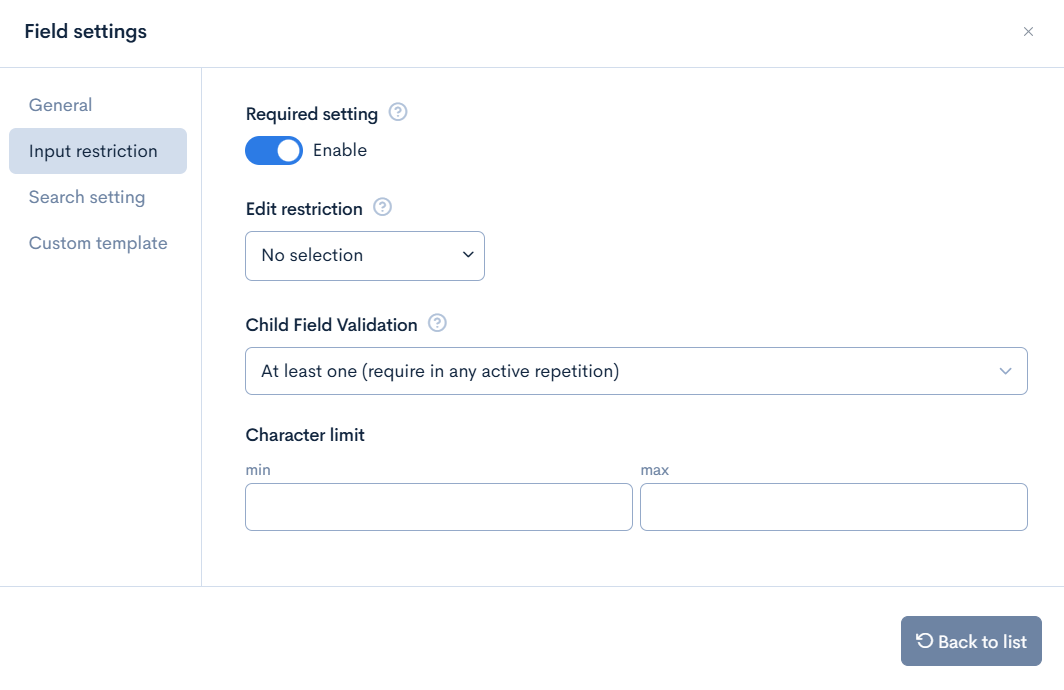

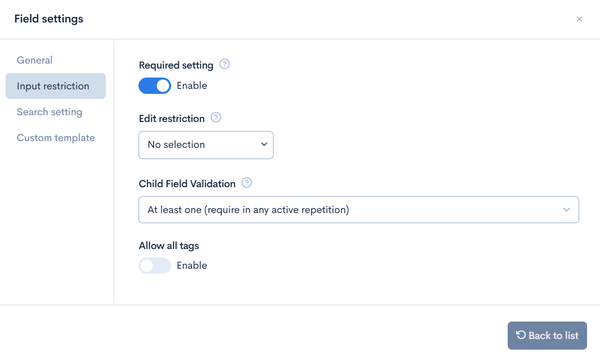

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
      "1": {
        "1": "1-1",
        "2": "1-2",
        "3": "1-3"
      },
      "2": {
        "1": "2-1",
        "2": "2-2",
        "3": "2-3"
      }
    },
},

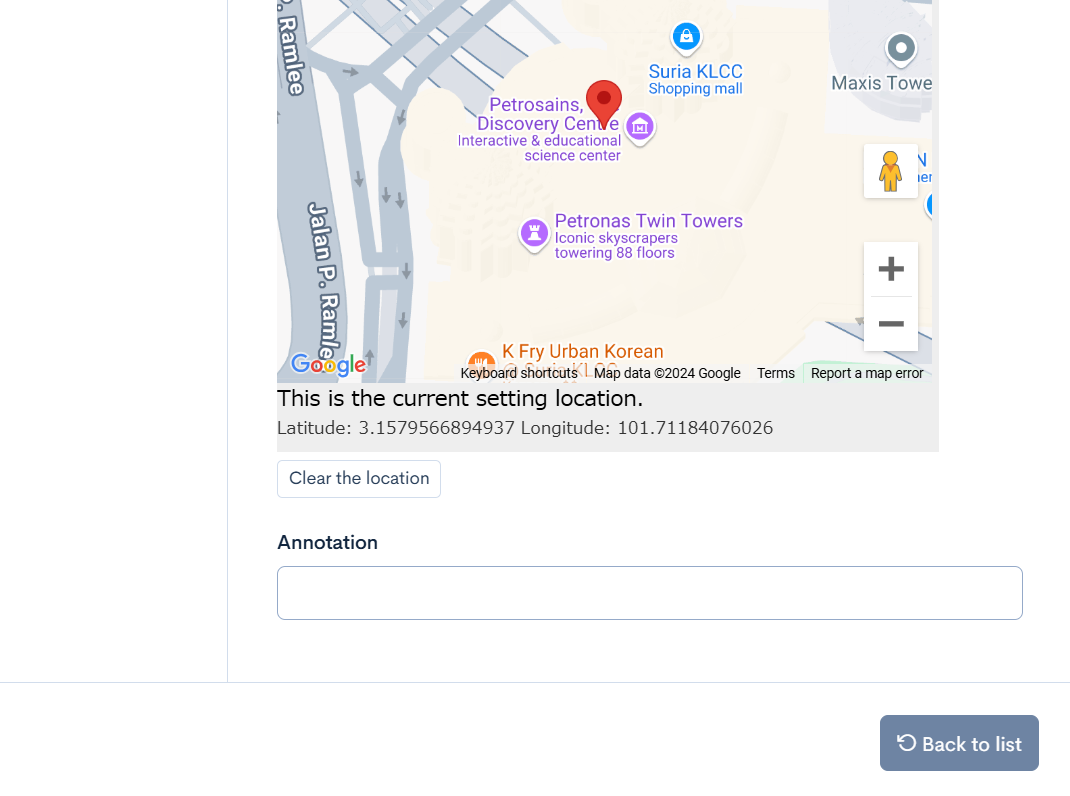

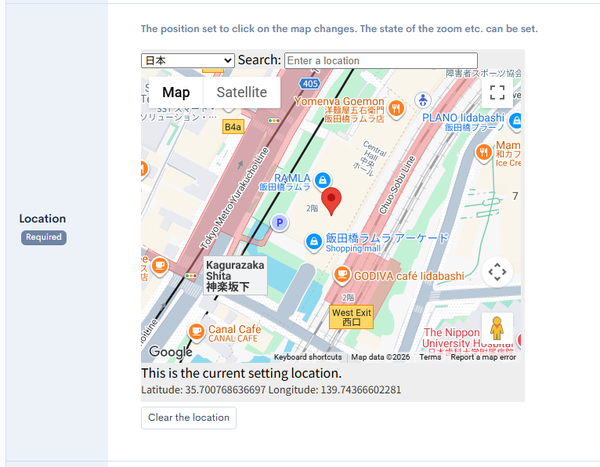

Location

Display of Content Editing Screen

Field settings - General

Item	Description
Field name	Enter the display name of the content editing screen.
Slug	Enter the slug.
Annotation	Enter a annotation.

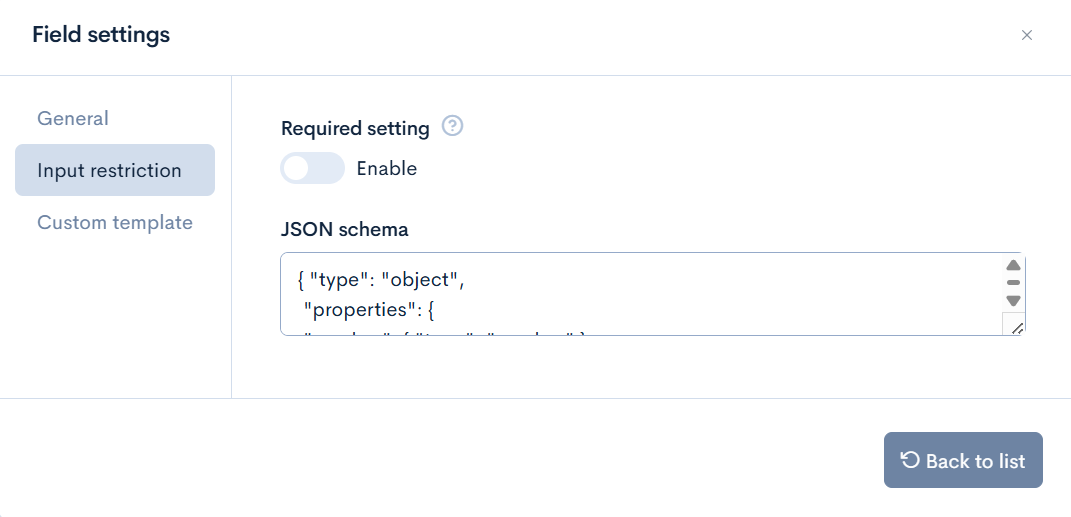

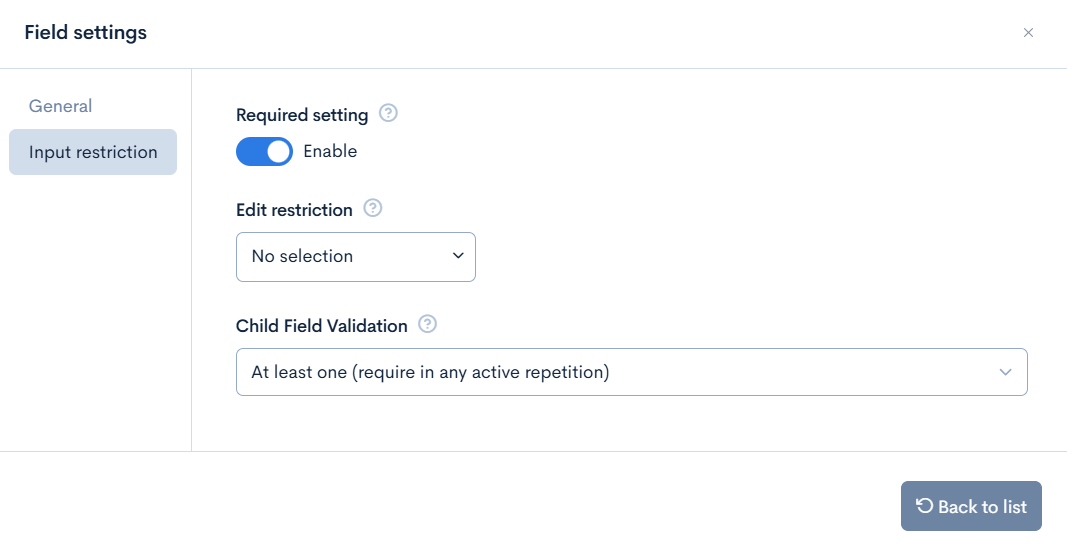

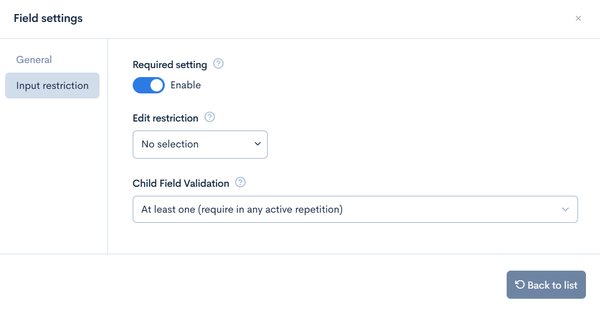

Field settings - Input restriction

Item	Description
Required setting	When enabled, it becomes a required input.

Field settings - Custom template

Item	Description
Template editor	Used when you want to change the display of the content editing screen.

JSON Response

details: {
    "ext_X": {
      "gmap_x": "139.7435938",
      "gmap_y": "35.7009012",
      "gmap_zoom": "16",
      "gmap_type": "roadmap",
      "gmap_place_id": "ChIJbSFfyl2MGGARIoFxX2bg0hE",
      "jp_lon": "139.0.11.2",
      "jp_lat": "34.59.48.2"
    },
},
