Setting up an API field to input current weather using OpenWeatherMap


In the API field that can be set in Kuroco's content structure, you can send a request to the endpoint and register the response in the content.
The endpoint can be created in Kuroco or external.

In this tutorial, we will set up an extension field that allows you to input the current weather of a selected city by sending a request to the OpenWeatherMap Weather API as an example of an API field.

What you will learn

You will learn how to set up an API field using the following steps:



In this tutorial, we will use OpenWeatherMap to obtain weather information.
Please check OpenWeatherMap for details about the service.

Register with OpenWeatherMap

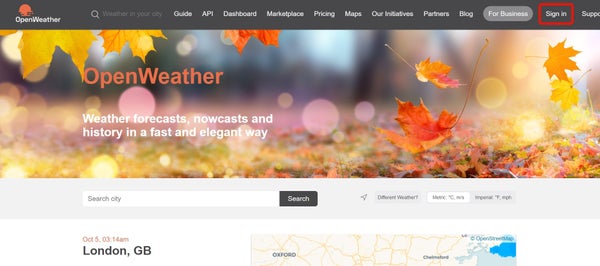

First, access OpenWeatherMap and sign up as a member.

Image from Gyazo

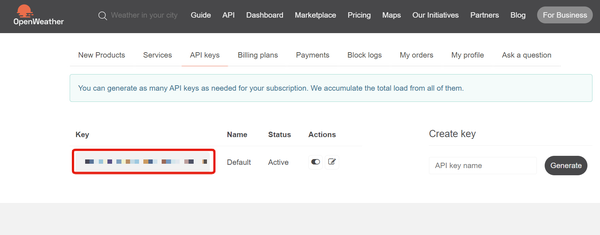

After completing the registration, access My API Keys to confirm your API key.

Image from Gyazo

Register a master

Next, register the cities and their latitude and longitude in the master to obtain weather information.

Click [Content] -> [Master].
Image from Gyazo

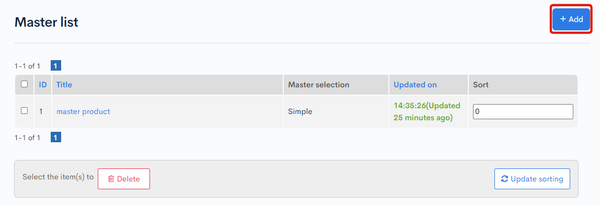

Click [Add].
Image from Gyazo

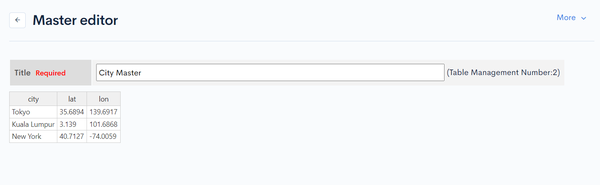

Register the cities and their latitude and longitude that can be used to obtain weather information using CSV update.
This time, the following were registered.

Kuala Lumpur3.139101.6868
New York40.7127-74.0059

Image from Gyazo

Create an API

Create an API for the API field

It is recommended to separate APIs for internal use only in Kuroco.
Therefore, first create an API for use in the API field.
If it has already been added, you can proceed to the next step.

Create an API

Click "Add" from the API in the Kuroco management screen.

Image from Gyazo

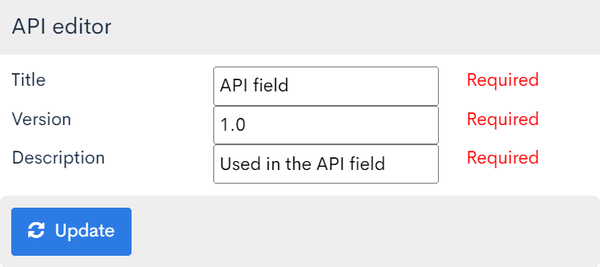

The API creation screen will be displayed, so enter the following and click "Add".

Image from Gyazo

TitleAPI field
DescriptionUsed in the API field

The API has been created.

Image from Gyazo

Configure CORS

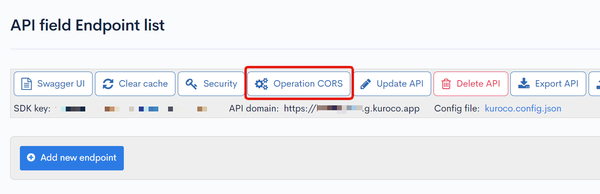

Next, configure CORS. Click [Operatoin CORS].

Image from Gyazo

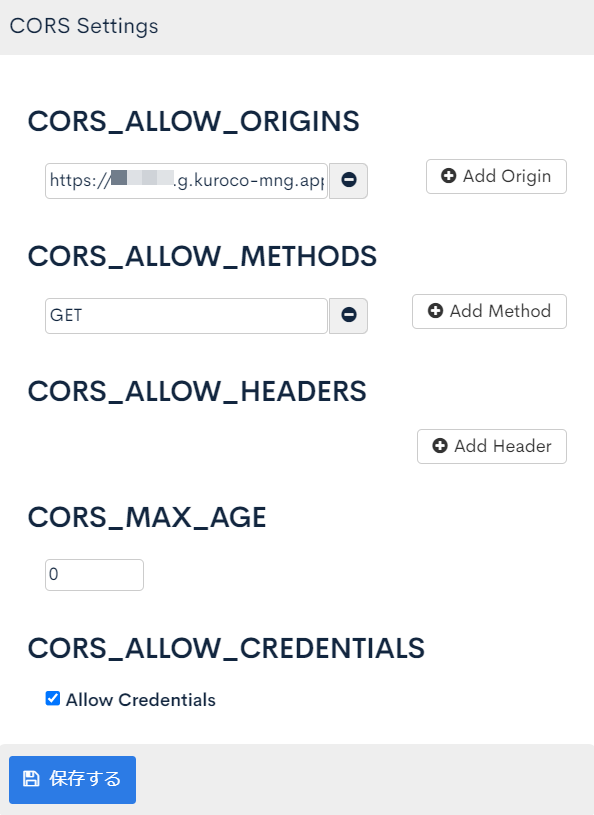

Click [Add Origin] in CORS_ALLOW_ORIGINS and add the following:

  • Management screen URL

Click [Add Method] in CORS_ALLOW_METHODS and add the following:

  • GET

Make sure that [Allow Credentials] is checked in CORS_ALLOW_CREDENTIALS.

Image from Gyazo

If there are no issues, click [Save].

Creating an Endpoint

Create an endpoint to retrieve the city data registered in the master.

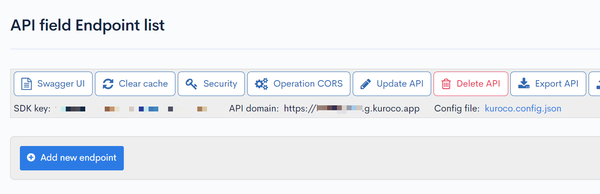

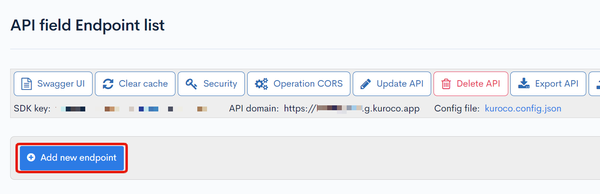

Click [Add new endpoint].

Image from Gyazo

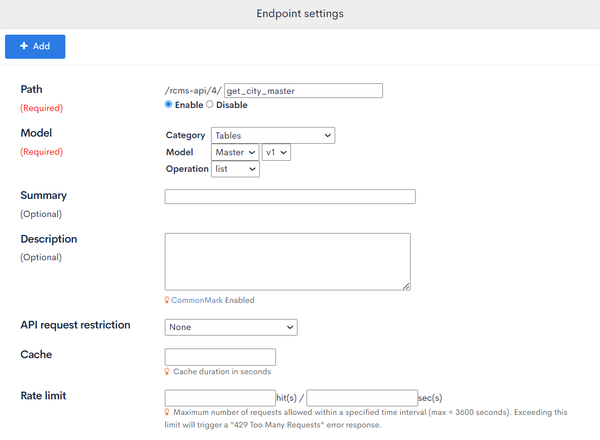

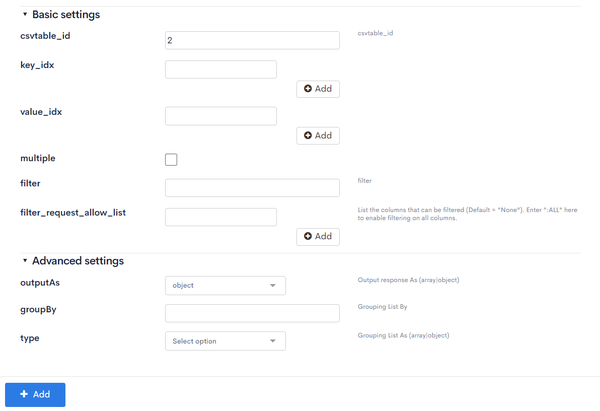

Configure the following settings.

csvtable_idMaster ID to be used (2)
outputAsSelect object

Image from Gyazo

Image from Gyazo

Once the configuration is done, click [Add] to add the endpoint.

Creating Content Structures

Creating a Content Structure

Create a content structure to set up automatic weather input.

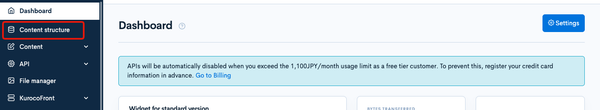

Click [Content structures].

Image from Gyazo

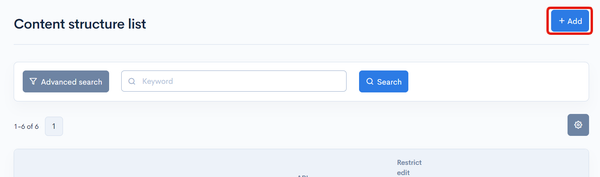

Click [Add].

Image from Gyazo

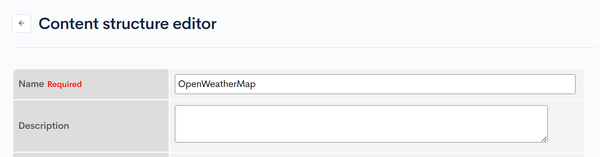

Configure the following settings.

General Items


Image from Gyazo

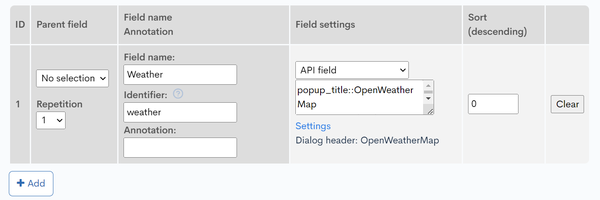

Additional Items

IDItem NameItem SettingItem Setting Options
1Item Name: Weather
Identifier: weather
API FieldAs follows

Image from Gyazo

Item Setting Options

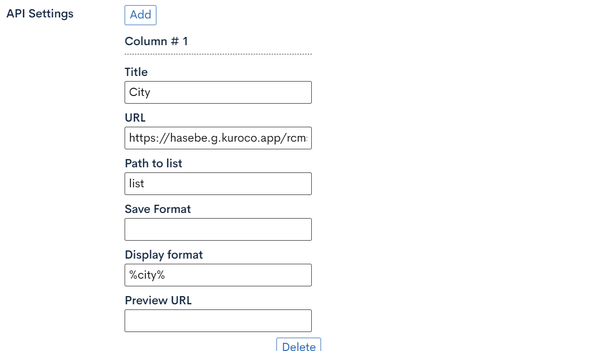

Column #1TitleCity
Data List Pathlist
Saved Format
Display Format%city%
Preview URL

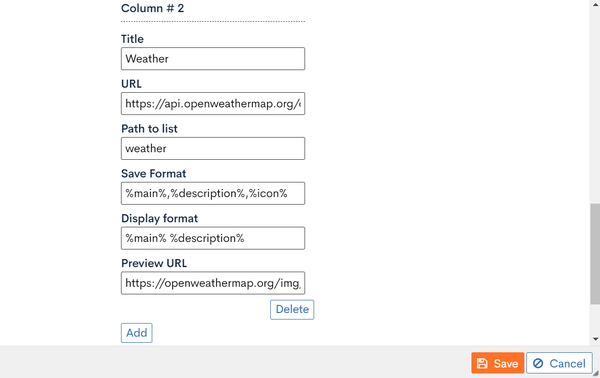

Column #2TitleWeather
URL{API key}
Data List Pathweather
Save Format%main%,%description%,%icon%
Display Format%main% %description%
Preview URL

Image from Gyazo

Image from Gyazo

Image from Gyazo


Replace API_URL with your own API URL.
Replace {API key} with the API key obtained in Register with OpenWeatherMap.

Once the configuration is done, click [Add] to add the content structure.

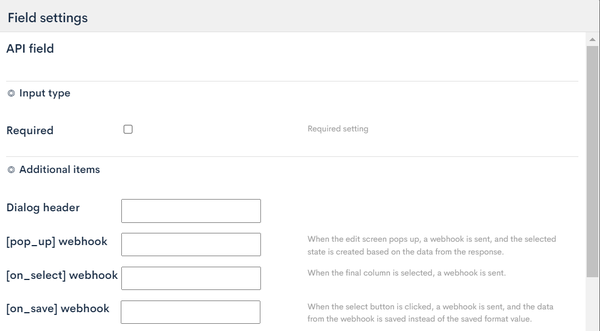

Explanation of API Fields

In the API Fields section, you can send a GET request to the endpoint set in the URL and display the data that is returned in a list format.
In the Data List Path field, you can set the field names to be used from the response and specify how to display the data in a list format using the %key% format.
The JSON response should have the following data structure:


In the example provided, the following response is obtained for Column #1:

"errors": [],
"messages": [],
"list": [
"city": "Tokyo",
"lat": "35.6894\t",
"lon": "139.6917\t"
"city": "Kuala Lumpur",
"lat": "3.139\t",
"lon": "101.6868\t"
"city": "New York",
"lat": "40.7127\t",
"lon": "-74.0059\t"

If the data structure of the response is different from what is expected by the API Fields, or if an API key needs to be included in the header for the GET request, you can use the custom processing set in Api::request_api and the {api} Smarty plugin to retrieve and format the data.

When setting multiple columns, you can use the data from the previous column in the URL field of the next column using the %key% format.
Therefore, in Column #2 of the example, the latitude and longitude of the selected city from Column #1 are sent to the OpenWeatherMap API using the URL{API key} to obtain weather information.

Additionally, you can preview the display in the Preview column by setting a preview URL.
Here again, you can use the content of the response using the %key% format.


The URL specified in the preview URL must allow display in an iframe.

Finally, in the last column, you can set the format in which the data will be saved in the content when [Select] is clicked.
You can use the content of the response using the %key% format.

For explanations of API Fields including other items, please refer to List of Extra Column Available on Content - API Fields.

Testing the Functionality

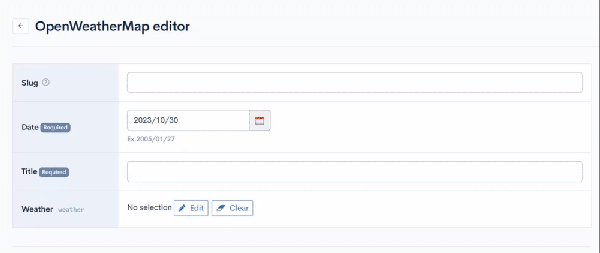

You can test the functionality of the API Fields in the content editing screen of the added content structure.
If the settings are correct, you should be able to enter the current weather of the selected city as shown below:

Image from Gyazo


If you have any other questions, please contact us or check out Our Slack Community.
