Slots available for admin panel plugins

This document lists all the slots available for admin panel plugins in Kuroco.

Admin panel plugin settings

When configuring admin panel plugins, you must include the following information to specify where and under what conditions the plugins will be placed:

• Slot
• Slot parameters

Slot

A slot is a location identifier for plugins. Provide both the target page URL and the slot to specify where a plugin will be inserted on the page.

Slot parameter

The slot parameter indicates the display conditions of a plugin. For example, you may want to insert a plugin only for pages that match a specific ID. Different parameters are available depending on the slot.

List of slots for Vue.js plugins

Below is a list of slots that can be used for Vue plugins, along with information on their functions, settings, and props (if available).

info

For more information on how to configure Vue plugins, see Tutorial: Apply any Vue component to the Kuroco management screen using the management screen plugin.

Universal plugin settings

The settings below apply to all target slots. For this reason, they have been omitted from the slot descriptions.

Source - URL

Parent	Child	Purpose	Description	Example
Source	URL	URL location of bundle files	Specify the path of the directory containing manifest.json. (Note: You can use any path, but it must match the one under publicPath in rcms-js.config.js.)	Relative format (for KurocoFiles): /files/user/mng_vue_components Absolute format (external host): https://.../files/user/mng_vue_components

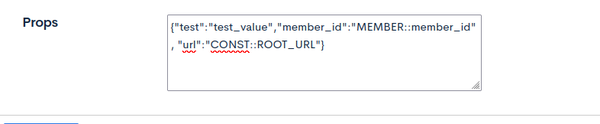

Props

You can specify any component-specific props:

Property type	Sample	Description
Static	"test": "test_value"	Any JSON-valid value
Member info	"member_id": "MEMBER::member_id"	Logged in member info. Format: MEMBER::field_name. Next fields are available: member_id email name1 name2
Predefined constants	"url": "CONST::ROOT_URL"	Any constant defined at the "Enviroment" -> "Constants" page. Format: CONST::constant_name.

Content module

Available slots in the Content module

Content structure - Additional fields

Any additional field on the content editor screen

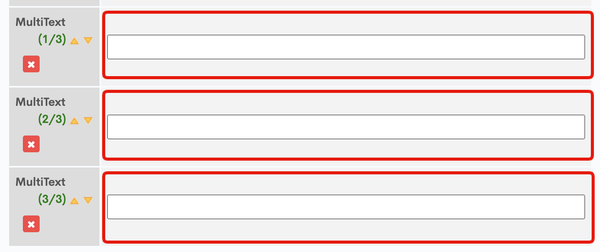

All repetitions of an additional field (if it has been set to be repeated)

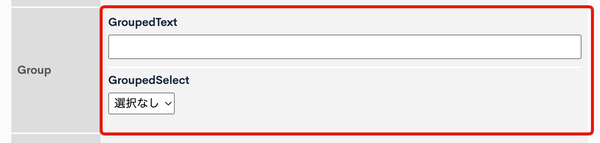

All (sub-)fields within a grouped field

Plugin settings

Parent	Child	Value	Description	Example
Source	Component name		Component name (optional value)	ContentTextInput
	Manifest key	vendors.\*;{ComponentName}.\*		vendors.\*;ContentTextInput.\*
Target	Page URI	/topics/topics_edit/
	Slot name	ext_{N}.ext_{M}, where {N} is the parent field, and {M} is the name of the child field.	Name of the additional field to be replaced by the plugin. If the whole field group is to be replaced, use ext_{N}.	ext_1 ext_1.ext_1 ext_1.ext_2

Slot parameters

Parameter	Value	Description	Example
topics_group_id	topics_group_id={G}, where {G} is the topic group ID (content structure ID)	Content structure ID to be replaced by the plugin	topics_group_id=1

Props

There are 2 types of props for Vue component. Next values will be propagated to the component by default:

Name	Type	Description
topics_group_id	Number	Topic group ID (content structure ID)
extConfig	Array	Array containing the additional field settings as objects (for the number of repetitions) ext_col_nm: Extended field key ext_slug: Identifier title: Field name value: Input value options: Options for selection-type such as single choice fields limits: Input restrictions

Source examples

• ContentsColorPickerInput
• ContentsGroupingExtensions

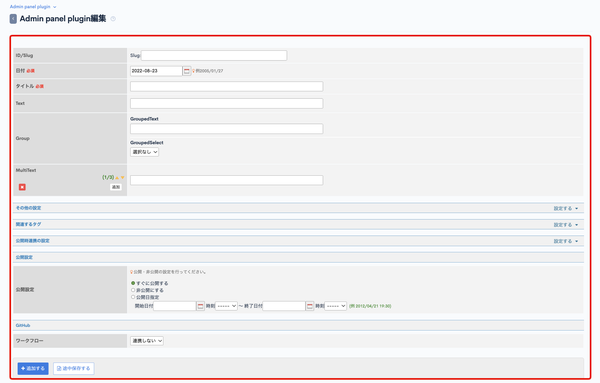

Content editor

Any field on the content editor screen

Plugin settings

Parent	Child	Value	Description	Example
Source	Component name		Component name (optional value)	ContentEditForm
	Manifest key	vendors.\*;{ComponentName}.\*		vendors.\*;ContentEditForm.\*
Target	Page URI	/topics/topics_edit/	URL of the content editor page
	Slot name	edit_form

Slot parameters

Parameter	Value	Description	Example
topics_group_id	topics_group_id={G}, where {G} is the topic group ID (content structure ID)	Content structure ID to be replaced by the plugin	topics_group_id=1

Props

Name	Type	Description
topics_id	Number	Content ID (topic ID)
topics_group_id	Number	Topic group ID (content structure ID)
ext_items	Array	Additional field structure
formData	Object	Input data
DG_CODE	String	CSRF token
categoryCount	Number	Number of content categories
categoryOptions	Object	Content category options
topicsFlagOptions	Object	Other settings - "Show in list" options
regularFlagOptions	Object	Other settings - "Display on top" options
memberGroupOptions	Object	Other settings - "access authorization" options
relatedTags	Object	Related tags
notifOptions	Object	Publishing integration settings - "Sync notifications" options
githubWorkflowOptions	Object	GitHub Workflow options

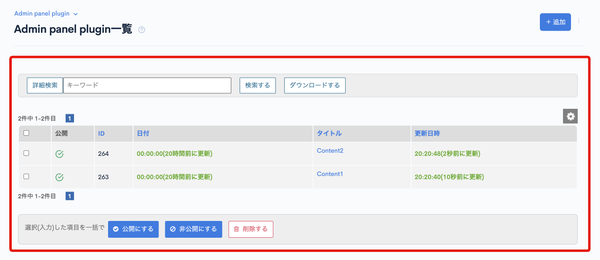

Content list

Any entry in the content list

info

If a plugin with the slot name topics_list exists, it will no longer load <div class="header">.

Plugin settings

Parent	Child	Value	Description	Example
Source	Component name	TopicsList	Component name (optional value)
	Manifest key	vendors.\*;TopicsList.\*
Target	Page URI	/topics/topics_list/	URL of the content list page
	Slot name	topics_list

Slot parameters

Parameter	Value	Description	Example
topics_group_id	topics_group_id={G}, where {G} is the topic group ID (content structure ID)	Content structure ID to be replaced by the plugin	topics_group_id=1
group_id	group_id={G1,G2,...}, where {G1} and {G2} are the ID of the member groups	Member groups for which the plugin is displayed	group_id=1,2

Props

Name	Type	Description
topics_group_id	Number	Topic group ID (content structure ID)

Form module

Available slots in the Form module

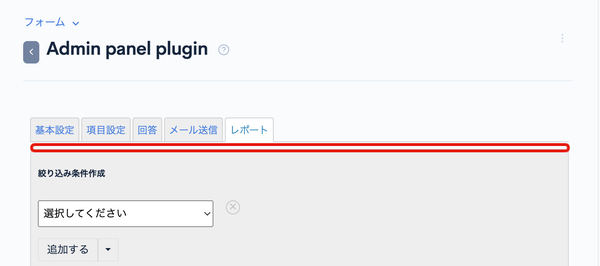

Form editor - [Report] tab

Insert new component on the report screen

Plugin settings

Parent	Child	Value	Description	Example
Source	Component name	TopicsList	Component name (optional value)	InquiryListTop
	Manifest key	vendors.\*;{ComponentName}.\*		vendors.\*;InquiryListTop.\*
Target	Page URI	/inquiry/inquiry_report/
	Slot name	list_main_top

Slot parameters

Parameter	Value	Description	Example
group_id	group_id={G1,G2,...}, where {G1} and {G2} are the ID of the member groups	Member groups for which the plugin is displayed	group_id=1,2

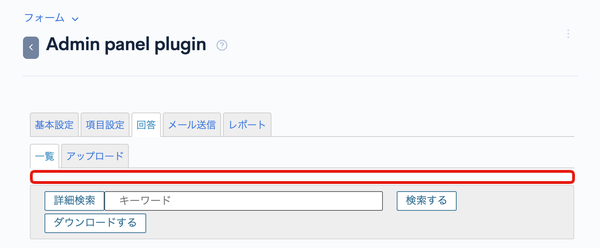

Form editor - [Submissions] tab (top)

Insert new component at the top of the Submissions screen

Plugin settings

Parent	Child	Value	Description	Example
Source	Component name		Component name (optional value)	InquiryListTop
	Manifest key	vendors.\*;{ComponentName}.\*		vendors.\*;InquiryListTop.\*
Target	Page URI	/inquiry/inquiry_bn_list/
	Slot name	list_main_top

Slot parameters

Parameter	Value	Description	Example
group_id	group_id={G1,G2,...}, where {G1} and {G2} are the ID of the member groups	Member groups for which the plugin is displayed	group_id=1,2

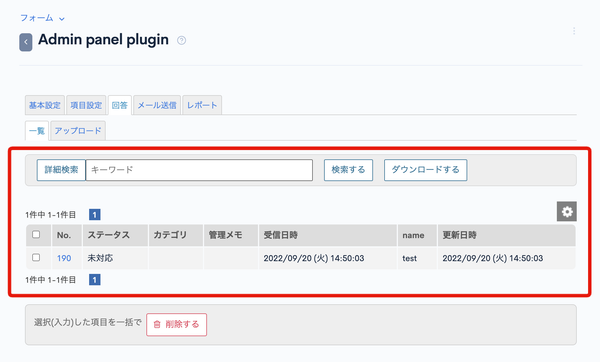

Form editor - [Submissions] tab (list)

Any entry on the Submissions screen

Plugin settings

Parent	Child	Value	Description	Example
Source	Component name	InquiryBnList	Vue component name (optional value)
	Manifest key	vendors.\*;InquiryBnList.\*
Target	Page URI	/inquiry/inquiry_bn_list/	URL of the submissions list page
	Slot name	modules/inquiry/InquiryBnList
	Slot parameter	-

Member module

Available slots in the Member module

Member editor

Any additional field on the member editor screen

Plugin settings

Parent	Child	Value	Description	Example
Source	Component name		Component name (optional value)	MemberTextInput
	Manifest key	vendors.\*;{ComponentName}.\*		vendors.\*;MemberTextInput.\*
Target	Page URI	/member/member_edit/	URL of the member editor page
	Slot name	Identifier of the target additional field	Variable name defined in the additional field settings	ext_text

Slot parameters

Parameter	Value	Description	Example
group_id	group_id={G1,G2,...}, where {G1} and {G2} are the ID of the member groups	Member groups for which the plugin is displayed	group_id=1,2

Props

Name	Type	Description
value	any	Input value
extConfig	Object	Additional field structure
member_id	Number	Target member ID
group_ids	Array	All Group IDs that the target member belongs to

List of slots for CSS plugins

Below is a list of slots available for CSS plugins, along with information on their functions, settings, and props (if available).

info

For more information on how to configure CSS plugins, see Tutorial: Apply CSS to a Kuroco management screen with the plugin.

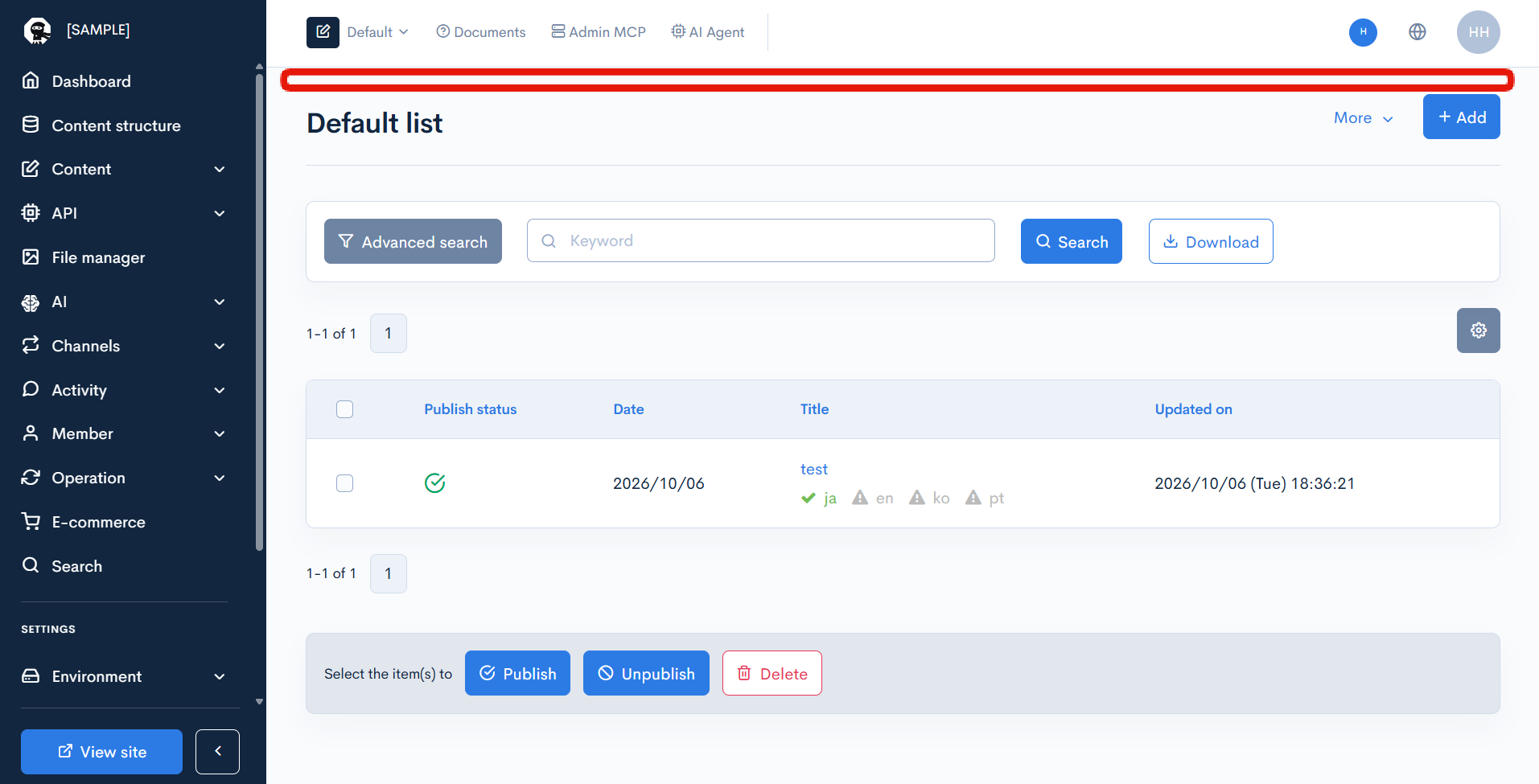

<head> tag

Plugin settings

Parent	Child	Value	Description	Example
Source	URL	URL of the CSS file		Relative format (for KurocoFiles): /files/user/css/plugin.css Absolute format (external host): https://.../files/user/css/plugin.css
Target	Page URI	Optional URI	Path of the page using the CSS
	Slot name	head

Slot parameters

Parameter	Value	Description	Example
topics_group_id	topics_group_id={G}, where {G} is the topic group ID (content structure ID)	Content structure ID to be replaced by the plugin	topics_group_id=1

Parameter	Value	Description	Example
group_id	group_id=G group_id[]=G where G is the target group ID	Apply the CSS to all users belonging to the specified group	Apply to members in Group 2: group_id=2 Apply to members in Group 2 or Group 3: group_id[]=2&group_id[]=3
group_id[not]	group_id[not]=G group_id[not][]=G where G is the target group ID to be excluded	Apply the CSS to all users who do not belong to the specified group	Apply to members not in Group 2: group_id[not]=2 Apply to members not in Group 2 or Group 3: group_id[not][]=2&group_id[not][]=3
