Mail log

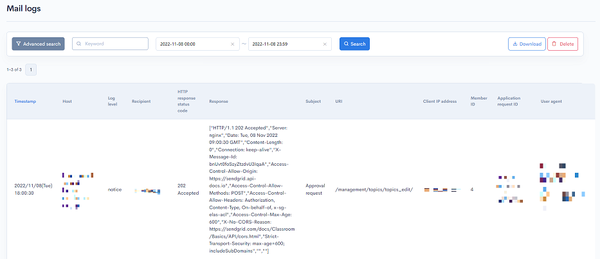

The mail log screen displays the all the logs related to mail delivery.
Accessing the screen

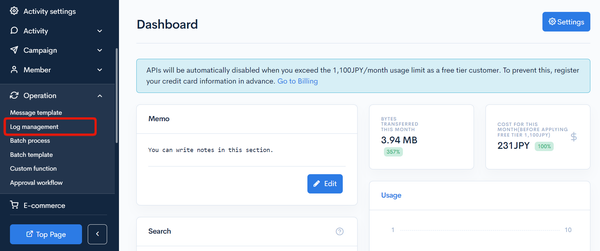

In the left sidebar menu, click [Operation] -> [Log management].

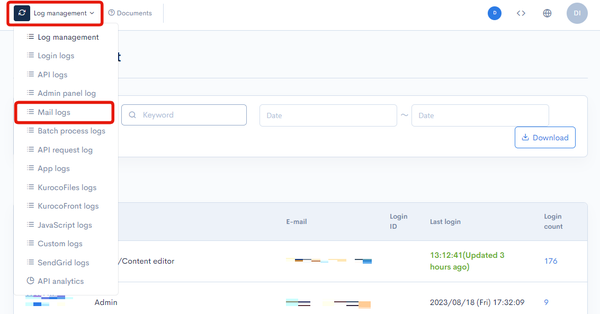

Click the [Log management] link above the page title, and select [Mail logs] in the dropdown menu.
Field descriptions
A status of 202 Accepted in the "message3" column indicates that the e-mail has been successfully received by SendGrid.
If delivery fails, the issue will be displayed in the same column.
Filter conditions
You can filter the logs easily using the recipient e-mail search and advanced search functions.
Recipient e-mail search
Enter the target recipient e-mail address in the search box and click [Search].
Advanced search

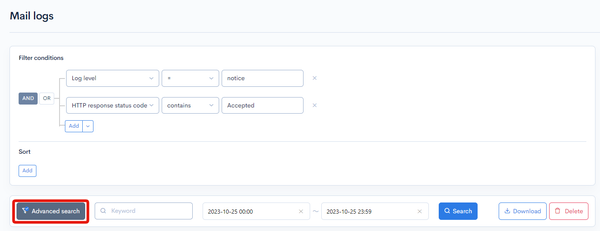

Click the [Advanced search] button to input advanced filter conditions.
The following input options are available:
| Field | Description | Specifiable conditions |
|---|---|---|
| Timestamp | Date and time the log was recorded. | Date and time range specification |
| Host | Site accessed. | Available search operations |
| Log level | Log level indicating the importance of the message. | Log levels |
| Recipient | E-mail address of the recipient. | Available search operations |
| HTTP response status code | HTTP response status code. | Available search operations |
| Response | HTTP response. | Available search operations |
| Subject | Subject of the e-mail. | Available search operations |
| URI | URI of the page accessed. | Available search operations |
| Client IP address | IP address of the user who attempted the access. | Available search operations |
| Member ID | Member ID of the user who attempted the access. | Available search operations |
| Application request ID | Unique request ID used by Kuroco. | Available search operations |
| User agent | User agent of the browser used for the access. | Available search operations |
The advanced search function allows you to concatenate multiple conditions using AND or OR.
AND: Returns only data matching all the specified conditions in your search.OR: Returns data matching any of your specified conditions.
Date and time range specification
The following date and time input options are available:
- Date range
- Relative
- Time range
- Datetime range
Available search operations
You can specify the following operations in the search conditions:
| Operation | Input type | Returned data |
|---|---|---|
contains | Text string | Entries matching part of the search term. |
not contains | Text string | Entries not matching any part of the search term. |
= | Alphanumeric string | Entries exactly matching the search term. |
!= | Alphanumeric string | Entries not exactly matching the search term. |
< | Alphanumeric string | Entries less than the search term. |
> | Alphanumeric string | Entries greater than the search term. |
<= | Alphanumeric string | Entries less than or equal to the search term. |
>= | Alphanumeric string | Entries greater than or equal to the search term. |
starts with | Text string | Entries beginning with the search term. |
not starts with | Text string | Entries not beginning with the search term. |
ends with | Text string | Entries ending with the search term. |
not ends with | Text string | Entries not ending with the search term. |
in | Alphanumeric string | Entries matching any of the search terms (for multiple search terms only). |
not in | Alphanumeric string | Entries not matching any of the search terms (for multiple search terms only). |
Sort
Under "Sort", you can specify the sort key and display order of the search results.
ASC: Ascending, from oldest to newest.DESC: Descending, from newest to oldest.
Log entries
The columns displayed for the log entries are as follows:
| Column | Description |
|---|---|
| Timestamp | Date and time the log was recorded. |
| Host | Site accessed. |
| Log level | Log level indicating the importance of the message. See: Log levels below for details. |
| Recipient | E-mail address of the recipient. |
| HTTP response status code | HTTP response status code. |
| Response | HTTP response. |
| Subject | Subject of the e-mail. |
| URI | URI of the page accessed. |
| Client IP address | IP address of the user who attempted the access. |
| Member ID | Member ID of the user who attempted the access. |
| Application request ID | Unique request ID used by Kuroco. |
| User agent | User agent of the browser used for the access. |
Log levels
Logs can be categorized into the 9 levels below, listed in order of increasing importance:
- Default
- Debug
- Info
- Notice
- Warning
- Error
- Critical
- Alert
- Emergency
Buttons
| Button | Description |
|---|---|
| Search | Search based on the above settings. |
| Download | Download a list of the displayed logs. |
| Delete | Delete a list of the displayed logs. |
Log list download
After click [Download] button, the download settings will open.
| Field(s) | Description |
|---|---|
| Charset | Character encoding of the output CSV file. |
| Cancel | Cancel downloading. |
| Download | Execute downloading. |
