API
On the endpoint list screen for each API, you can create and configure APIs as well as endpoints.
Accessing the screen
In the left sidebar menu, click [API] and select the API you want to look at.

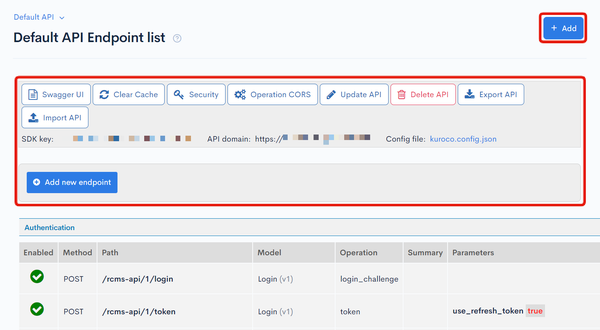

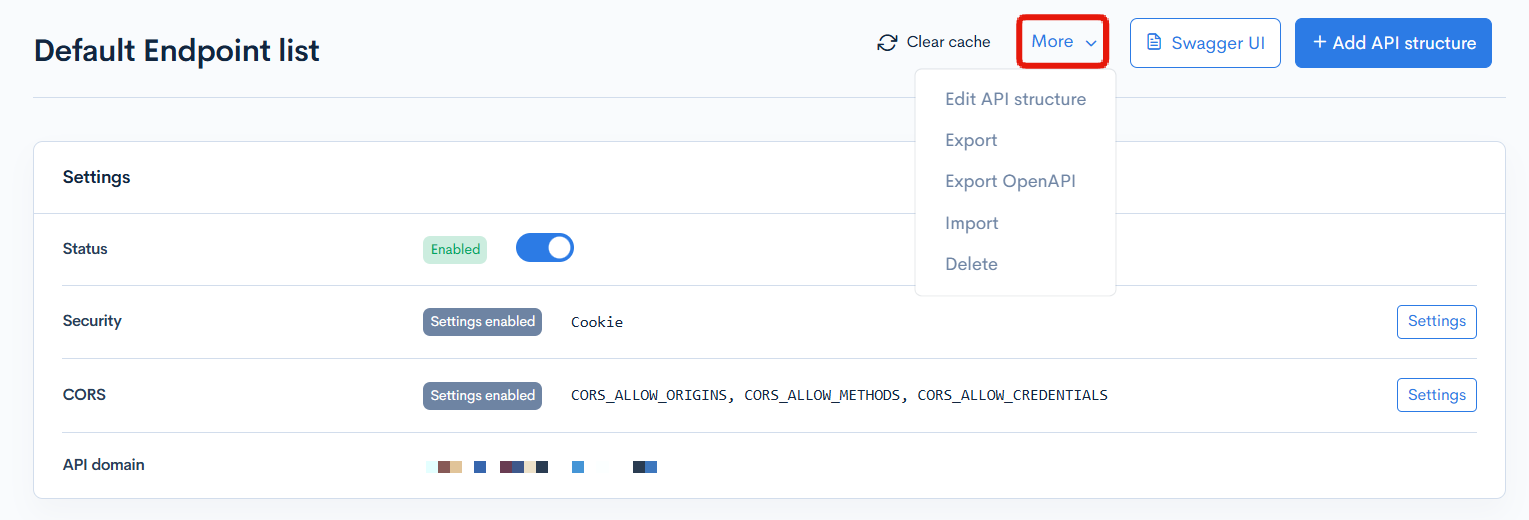

Main menu
The main menu buttons appear at the top of the endpoint list screen.

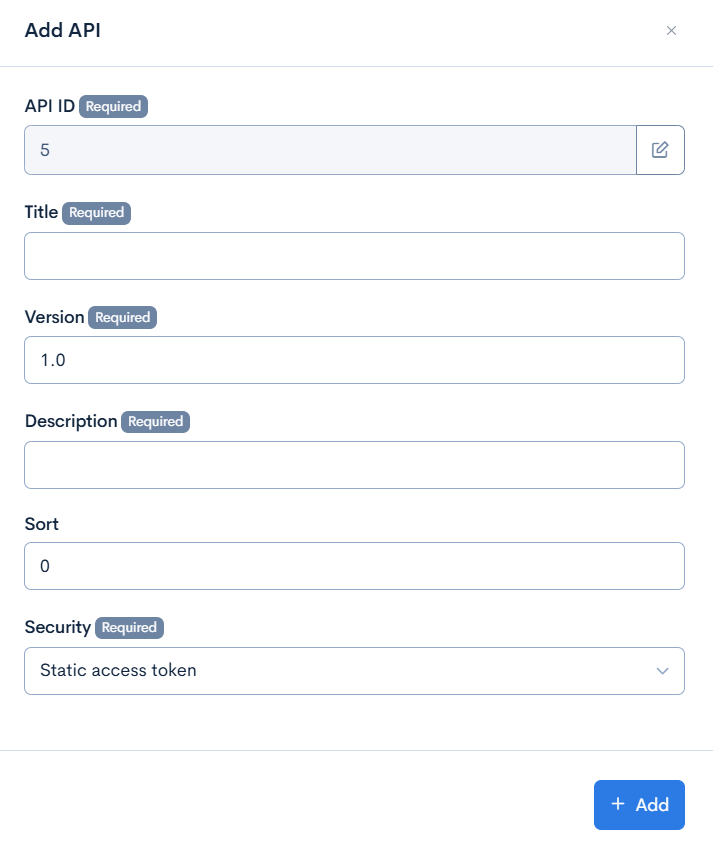

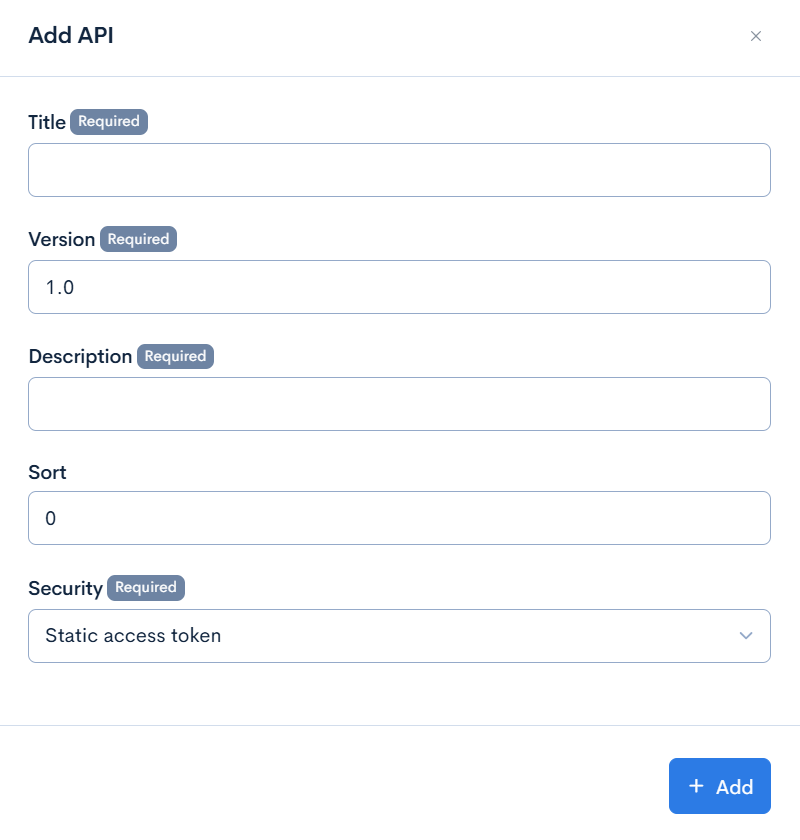

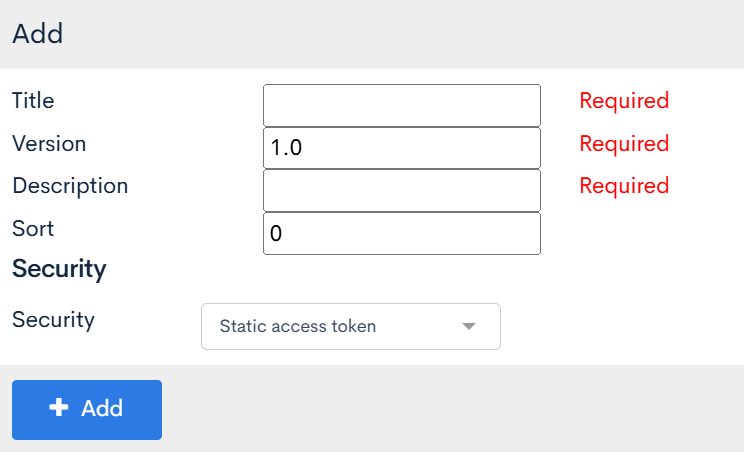

[Add]
Opens the API editor.
Item | Description |
---|---|
Title | Title of the API (required field). |
Version | Version of the API (required field). |
Description | Overview of the API (required field). |
Add | Click to create the API. |
[Swagger UI]
Redirects to the Swagger UI screen for the current API.
(See: Using Swagger UI to check the data structure of your content for details).
[Clear cache]
Clears the settings cache of the current API. Any changes to Kuroco's internal behavior clears the cache and applies/reflects the latest version.
[Security]
Configures the security settings for the current API.
(See: API Security for details.)

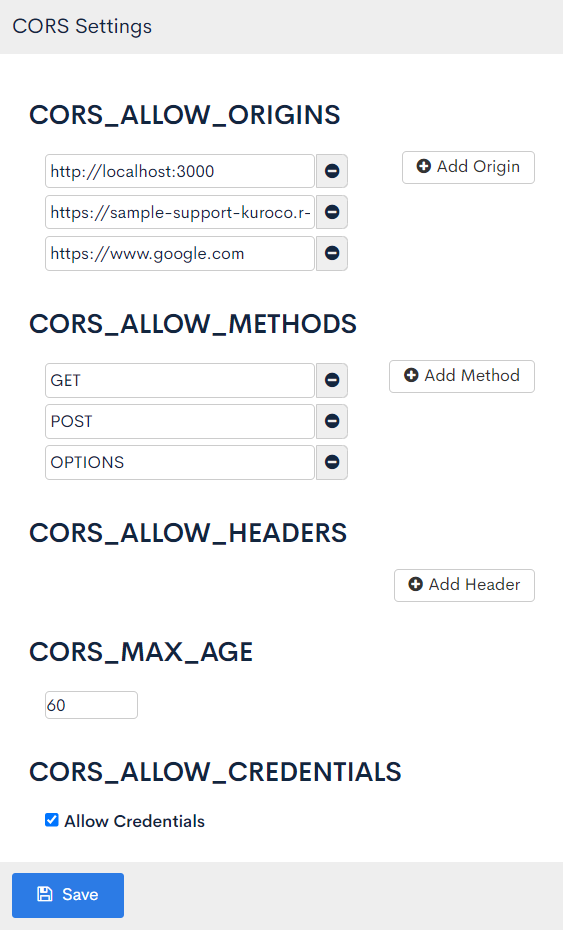

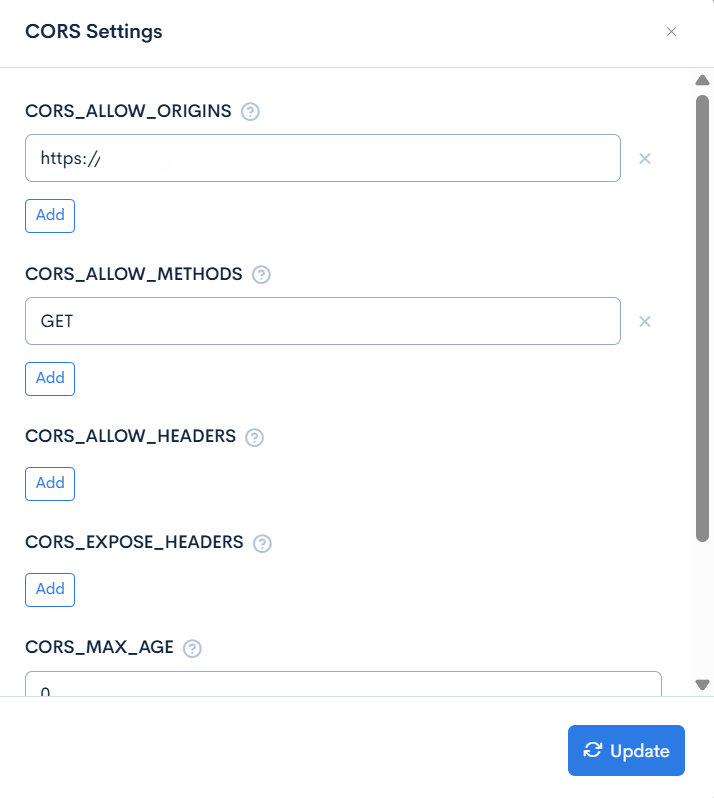

[Operation CORS]
To enable CORS, customize the information that the Kuroco server returns to the response header.
The origin configured for CORS is the one assigned in the Content-Security-Policy: frame-ancestors. For example, to access the Kuroco server from the local frontend
http://localhost:8080
, configure http://localhost:8080
as follows.
(See: MDN Web Docs for details.)
Item | Corresponding response header | Sample http://localhost:8080 |
---|---|---|
CORS_ALLOW_ORIGINS | Access-Control-Allow-Origin | http://localhost:8080 |
CORS_ALLOW_METHODS | Access-Control-Allow-Methods | GET,POST,OPTIONS |
CORS_ALLOW_HEADERS | Access-Control-Allow-Headers | * |
CORS_MAX_AGE | Access-Control-Max-Age | 600 |
CORS_ALLOW_CREDENTIALS | Access-Control-Allow-Credentials | ✅ |

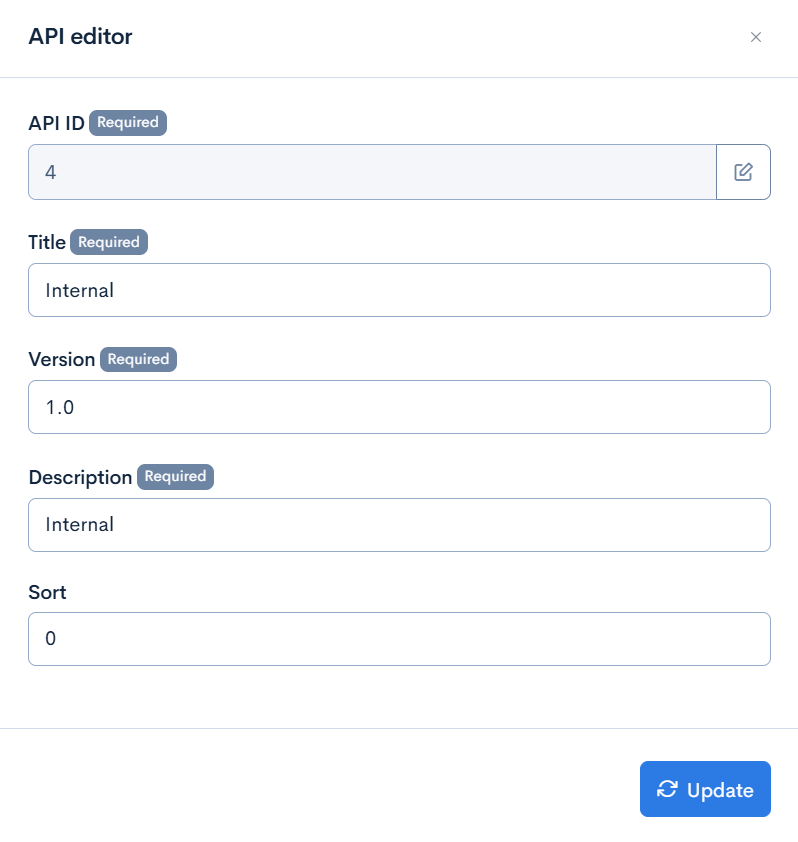

[Update API]
Updates the settings of the current API. The input fields are the same as for Create new API.
[Delete API]
Deletes the current API.
Note: Deleted APIs cannot be recovered.

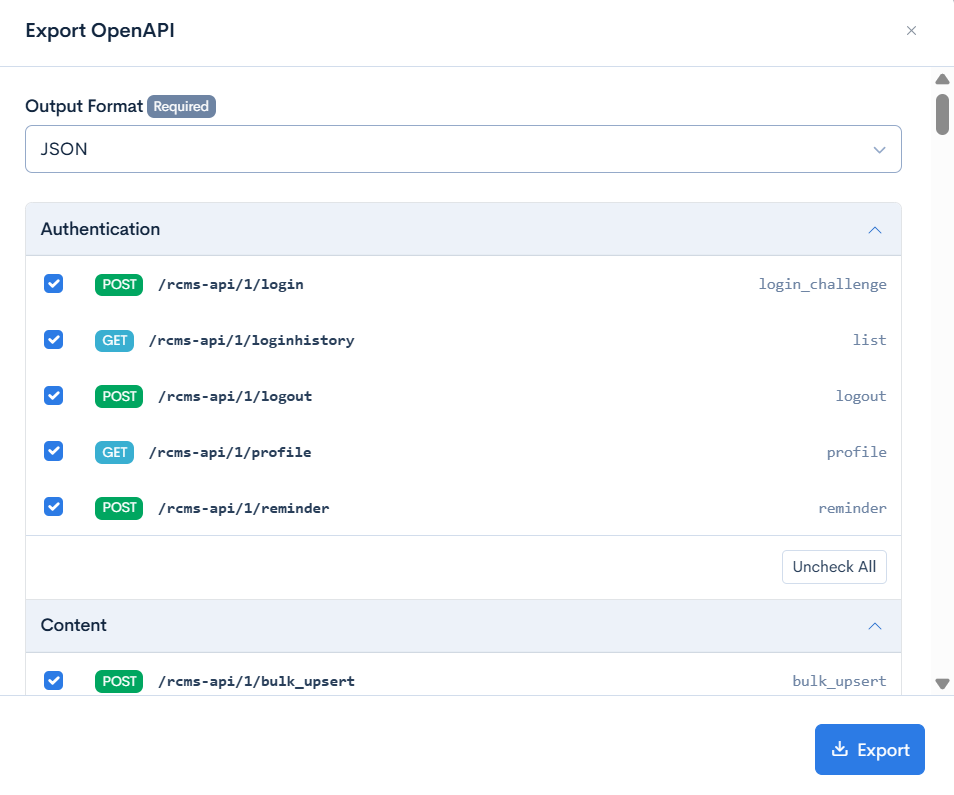

[Export API]
Exports the current API in JSON/YAML format.
The exported configuration file is in Kuroco's own format. To include pre-/post-processing settings, check the "Including pre/post processing blocks" box.
[Import API]
Imports the current API in JSON/YAML format.
Select "Import as new API" to create a new API. Selecting "Import to the current API" updates the current API.
[Add new endpoint]
Opens the "Add new endpoint" pop-up screen.
(See: Reference - API - Endpoint settings for more details.)

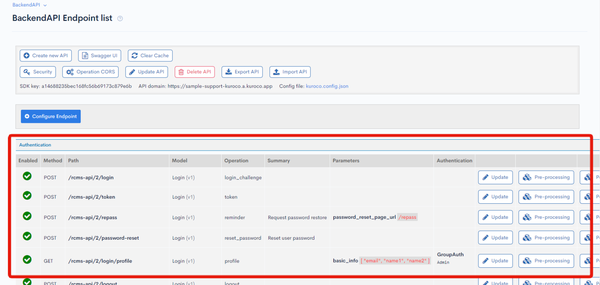

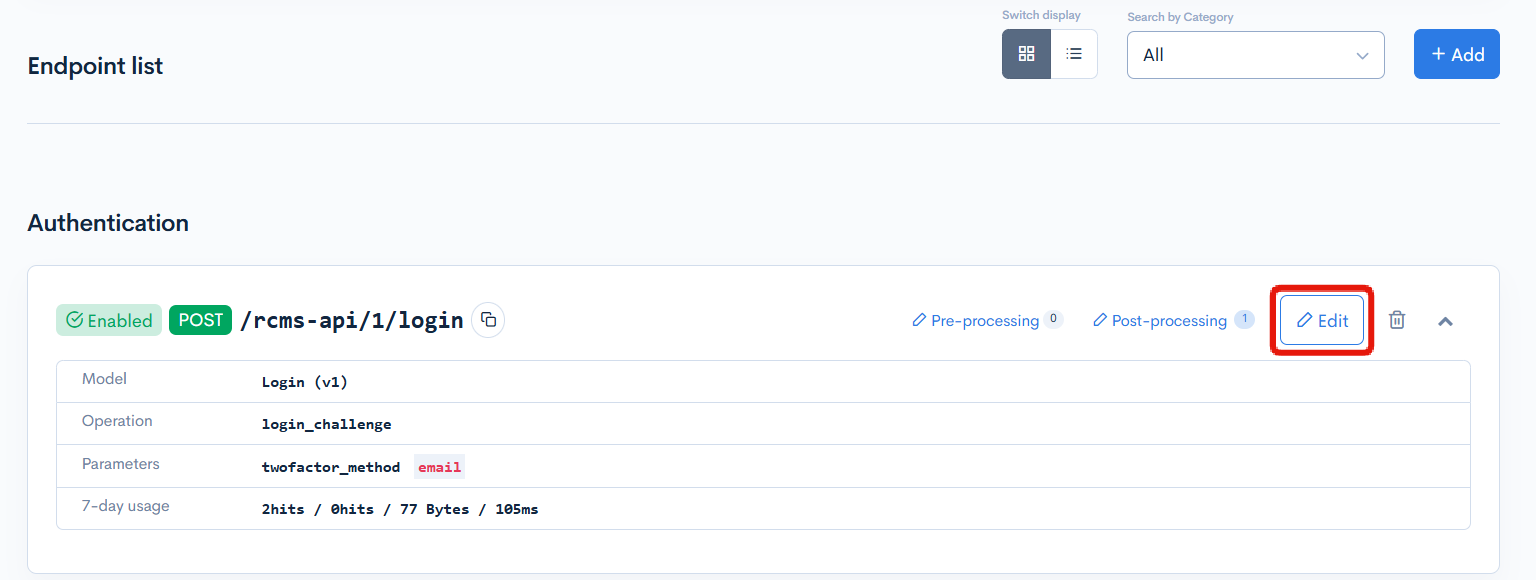

Endpoint list
A list of endpoints for the current API is displayed below the main menu.
This list appears only after you have added endpoints to a new API. The endpoints are grouped by category.
Item | Description |
---|---|
Enabled | Indicates whether the API is enabled or disabled. |
Method | HTTP method. |
Path | Path of the endpoint. |
Model | The Kuroco model bound to the endpoint. |
Operation | The operations associated with the model. |
Summary | Value specified when creating the endpoint. |
Parameters | Operation parameters. |
Authentication | Method of authentication. |
[Update] | Opens the "Configure endpoint" pop-up screen. |
[Pre-processing] | Displays the pre-processing settings editor. The total number of pre-processes that have been set will be displayed. |
[Post-processing] | Displays the post-processing settings editor. The total number of post-processes that have been set will be displayed. |
[Delete] | Deletes the endpoint. |
Changelog

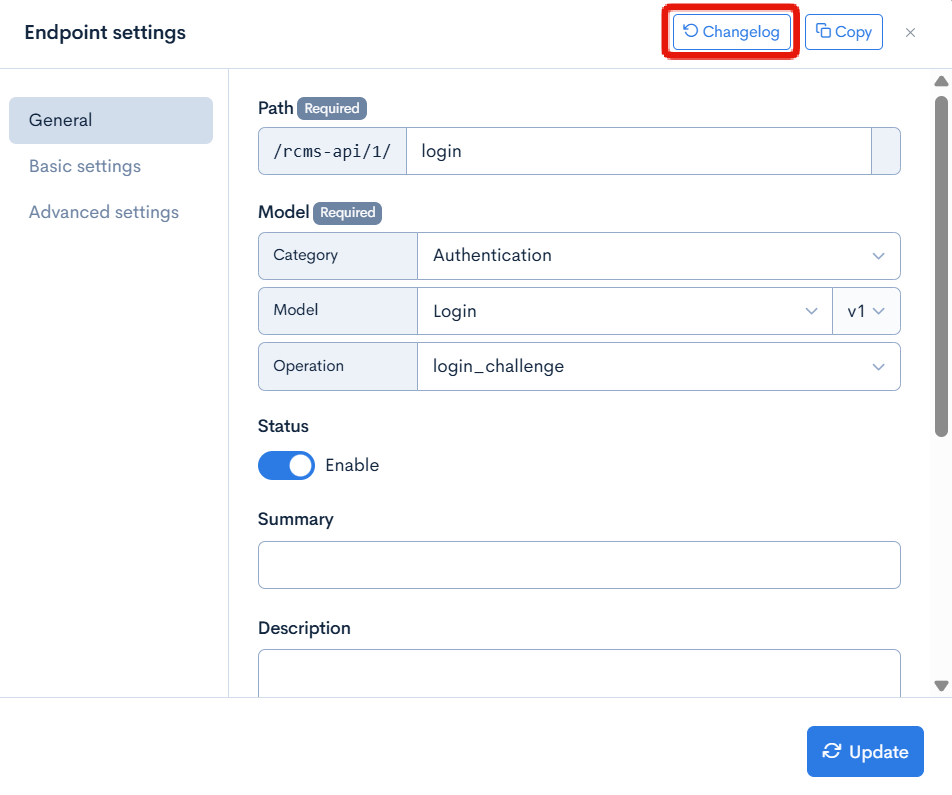

You can see a list of the history of editing from the endpoint settings screen.

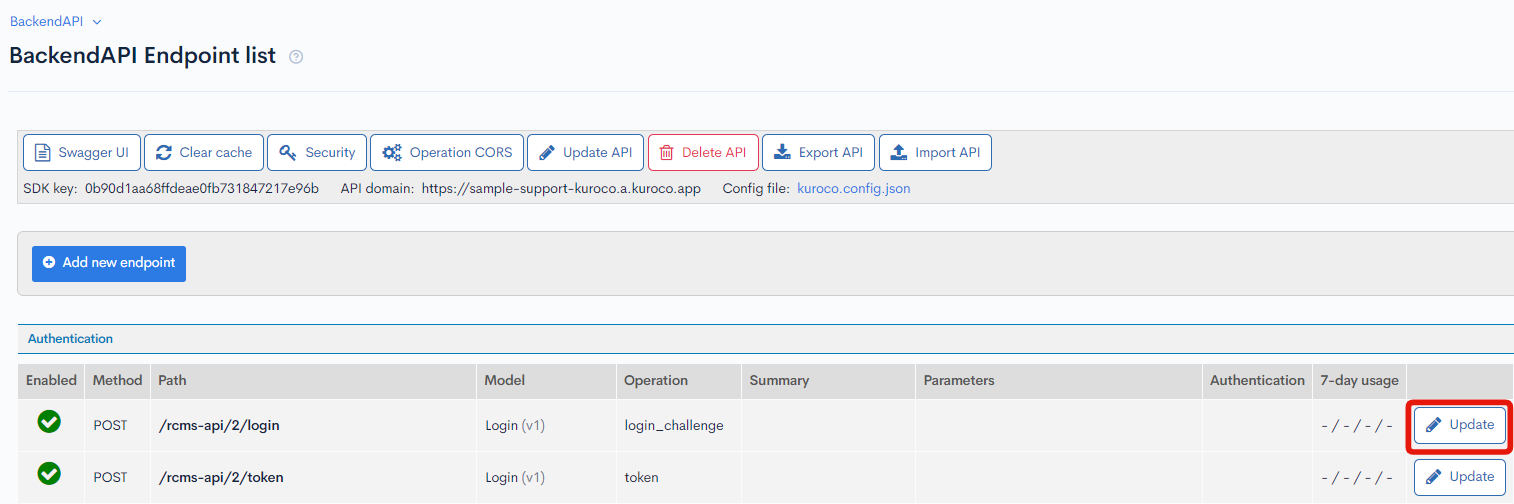

Click the "Update" in the endpoint list, then open the endpoint settings.
Click the "Changelog" to see a list of the history of editing the endpoint settings.

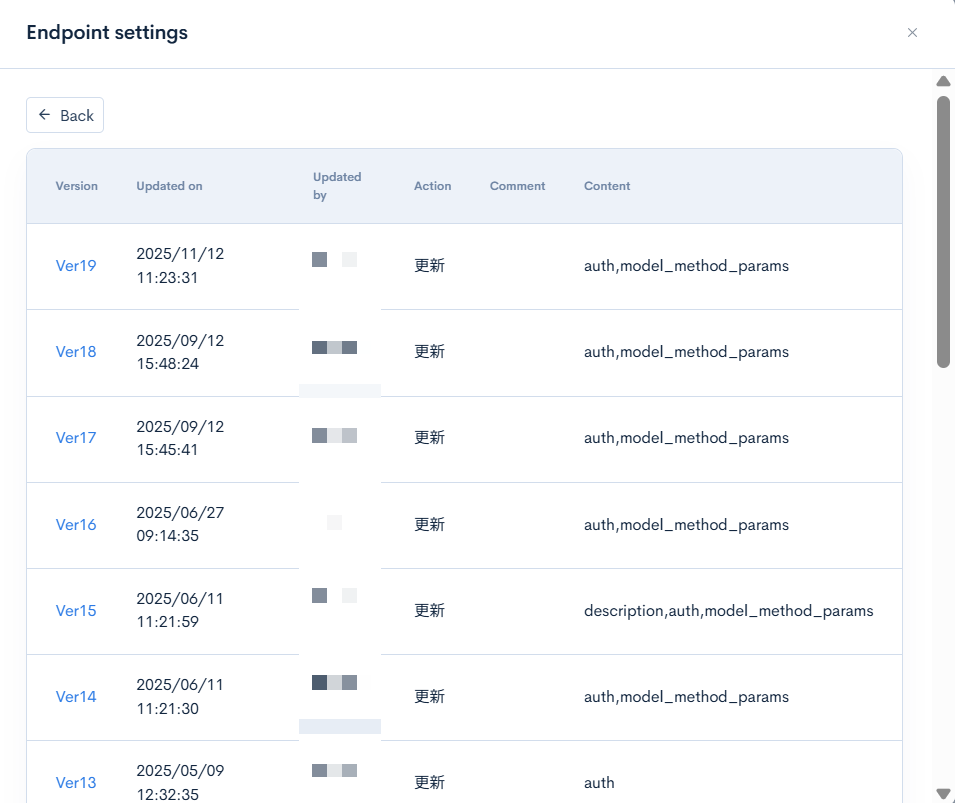

Endpoint settings changelog
Item | Description |
---|---|
Version | Displays the version. You can see the target version after clicking the version link. |
Updated on | Displays the date and time the content was updated. |
Updated by | Displays the name of the member who updated the content. |
Action | Displays the type of processing performed. There are six types of statuses as follows
|
Comment | Displays the comments at the time of update. |
Content | Displays the updated contents. |
