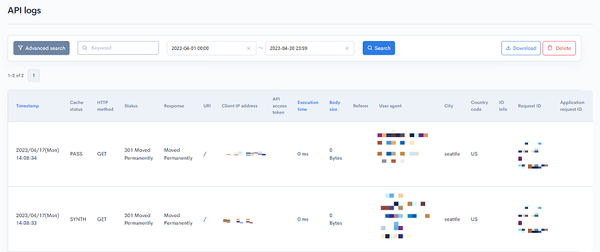

API log

The API log screen displays the API request history.

Accessing the screen

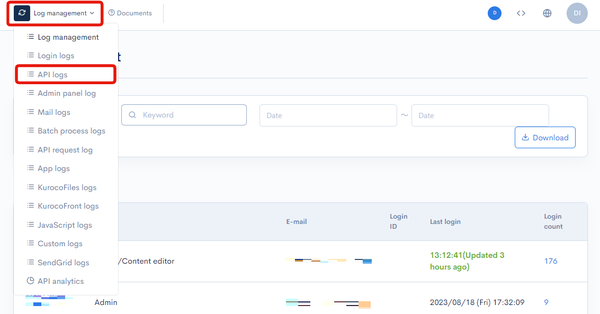

In the left sidebar menu, click [Operation] -> [Log management].

Click the [Log management] link above the page title, and select [API logs] in the dropdown menu.

Field descriptions

Filter conditions

You can filter the logs easily using the keywords search and log date/time, advanced search functions.

Keywords search

Enter the search keyword in the [Keyword] text box and click [Search] to filter logs that contain the specified keyword.

Timestamp search

Select the date and time range for the timestamp and click [Search].   The designated logging period is 35 days. When specifying past log dates, please make sure to specify within the 35-day range. β / RC

Advanced search

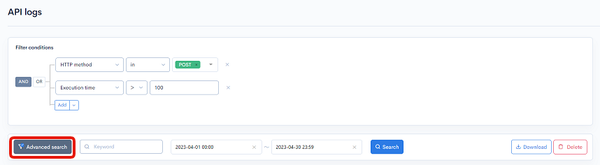

Click the [Advanced search] button to input advanced filter conditions.

The following input options are available:

Field	Description	Specifiable conditions
Cache status	Indicates if this request was served by a cache.	Cache status
HTTP method	HTTP method of the request.	HTTP method
Status	HTTP response status code for the request.	HTTP status
Response	API response message.	HTTP status
URI	URI of the endpoint that sent the request.	Available search operations
Client IP address	IP address of the user making the request.	Available search operations
API access token	Authentication token passed along with the request.	Available search operations
Execution time	Time taken by the server to process the request in seconds.	Available search operations (numeric input only)
Body size	Response body size in bytes.	Available search operations (numeric input only)
Referer	Address of the webpage immediately before the currently requested page.	Available search operations
User agent	User agent requesting the API.	Available search operations
City	Location information of the user making the request.	Available search operations
Country code	Country code of the user making the request.	Available search operations
IO info	Image optimizer data from Fastly.	HTTP method
Application request ID	Unique request ID used by Fastly.	Available search operations
Request ID	Unique request ID used by Kuroco.	Available search operations

The advanced search function allows you to concatenate multiple conditions using AND or OR.

• AND: Returns only data matching all the specified conditions in your search.
• OR: Returns data matching any of your specified conditions.

Available search operations

You can specify the following operations in the search conditions:

Operation	Input type	Returned data
contains	Text string	Entries matching part of the search term.
not contains	Text string	Entries not matching any part of the search term.
=	Alphanumeric string	Entries exactly matching the search term.
!=	Alphanumeric string	Entries not exactly matching the search term.
<	Alphanumeric string	Entries less than the search term.
>	Alphanumeric string	Entries greater than the search term.
<=	Alphanumeric string	Entries less than or equal to the search term.
>=	Alphanumeric string	Entries greater than or equal to the search term.
starts with	Text string	Entries beginning with the search term.
not starts with	Text string	Entries not beginning with the search term.
ends with	Text string	Entries ending with the search term.
not ends with	Text string	Entries not ending with the search term.
in	Alphanumeric string	Entries matching any of the search terms (for multiple search terms only).
not in	Alphanumeric string	Entries not matching any of the search terms (for multiple search terms only).

*Only numerical operations are allowed for execution_time and body_size.

Sort

Under "Sort", you can specify the sort key and display order of the search results.

• ASC: Ascending, from oldest to newest.
• DESC: Descending, from newest to oldest.

Sort key options:

• Date
• cache_status
• request
• status
• execution_time
• body_size

Log entries

The columns displayed for the log entries are as follows:

Column	Description
Timestamp	Date and time the log was recorded.
Cache status	Indicates if the request was served by a cache. See: Cache status below for details.
HTTP method	HTTP method of the request. See: HTTP method below for details.
Status	HTTP response status code for the request. See: HTTP status below for details.
Response	API response message.
URI	URI of the endpoint that sent the request.
Client IP address	IP address of the user making the request.
API access token	Authentication token passed with the request.
Execution time	Time taken by the server to process the request in seconds.
Body size	Response body size in bytes.
Referer	Address of the webpage immediately before the currently requested page.
User agent	User agent requesting the API.
City	Location information of the user making the request.
Country code	Country code of the user making the request.
IO info	Image optimizer data from Fastly.
Request ID	Unique request ID used by Fastly.
Application request ID	Unique request ID used by Kuroco.

Cache status

The cache status can take one of the values below:

Value	Description
HIT	Request was received from a cache.
MISS	Request reached the server and no cache was found.
PASS	Request could not be cached.
ERROR	An error occurred during caching.

HTTP method

• GET
• POST
• HEAD

HTTP status

• OK
• Accepted
• Partial Content
• Moved Permanently
• Moved Temporarily
• Bad Request
• Unauthorized
• Forbidden
• Not Found
• Method Not Allowed
• Unprocessable Entity
• Internal Server Error
• Bad Gateway
• Service Unavailable
• Gateway Time-out

Buttons

Button	Description
Search	Search based on the above settings.
Download	Download a list of the displayed logs.
Delete	Delete a list of the displayed logs.

Log list download

After click [Download] button, the download settings will open.

Field(s)	Description
Charset	Character encoding of the output CSV file.
Cancel	Cancel downloading.
Download	Execute downloading.
