Login log

The login log screen displays the login history for the current user.

Accessing the screen

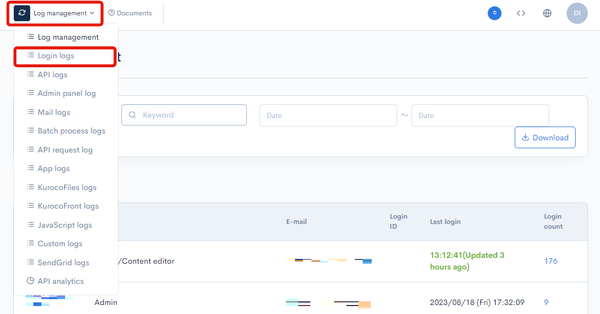

In the left sidebar menu, click [Operation] -> [Log management].

Click the [Log management] link above the page title, and select [Login logs] in the dropdown menu.

Field descriptions

Filter conditions

You can filter the logs easily using the keywords search and log date/time, advanced search functions.

Keywords search

Enter the search keyword in the [Keyword] text box and click [Search] to filter logs that contain the specified keyword.

Timestamp search

Select the date and time range for the timestamp and click [Search].   The designated logging period is 35 days. When specifying past log dates, please make sure to specify within the 35-day range.

Advanced search

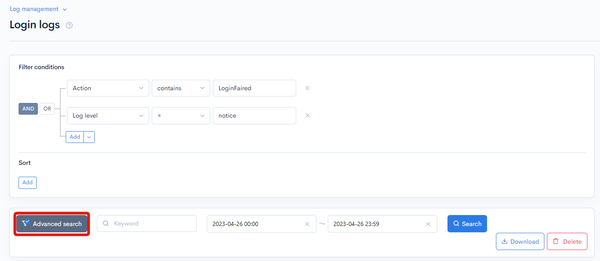

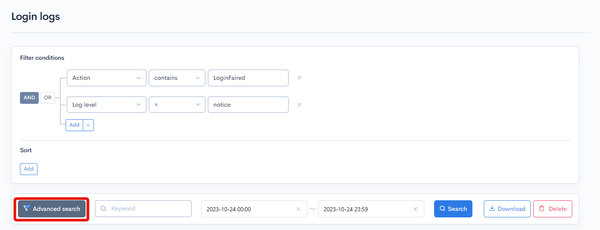

Click the [Advanced search] button to input advanced filter conditions.

The following input options are available:

Field	Description	Specifiable conditions
Host	Site accessed.	Available search operations
Log level	Log level indicating the importance of the message.	Available search operations
Action	Login results.	Action
URI	URI of the page accessed.	Available search operations
Client IP address	IP address of the user.	Available search operations
Member ID	Member ID of the user who attempted the access.	Available search operations
Apprication request ID	Unique request ID used by Kuroco.	Available search operations
User agent	User agent of the browser used for the access.	Available search operations

The advanced search function allows you to concatenate multiple conditions using AND or OR.

• AND: Returns only data matching all the specified conditions in your search.
• OR: Returns data matching any of your specified conditions.

Available search operations

You can specify the following operations in the search conditions:

Operation	Input type	Returned data
contains	Text string	Entries matching part of the search term.
not contains	Text string	Entries not matching any part of the search term.
=	Alphanumeric string	Entries exactly matching the search term.
!=	Alphanumeric string	Entries not exactly matching the search term.
<	Alphanumeric string	Entries less than the search term.
>	Alphanumeric string	Entries greater than the search term.
<=	Alphanumeric string	Entries less than or equal to the search term.
>=	Alphanumeric string	Entries greater than or equal to the search term.
starts with	Text string	Entries beginning with the search term.
not starts with	Text string	Entries not beginning with the search term.
ends with	Text string	Entries ending with the search term.
not ends with	Text string	Entries not ending with the search term.
in	Alphanumeric string	Entries matching any of the search terms (for multiple search terms only).
not in	Alphanumeric string	Entries not matching any of the search terms (for multiple search terms only).

Sort

Under "Sort", you can specify the sort key and display order of the search results.

• ASC: Ascending, from oldest to newest.
• DESC: Descending, from newest to oldest.

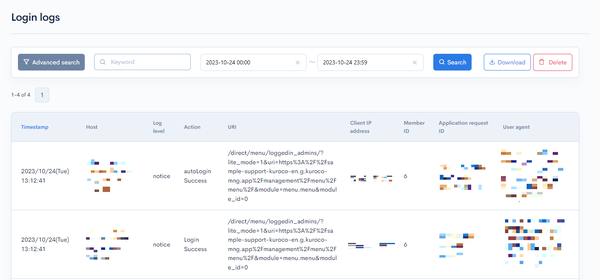

Log entries

The columns displayed for the log entries are as follows:

Column	Description
Timestamp	Date and time the log was recorded.
Host	Site accessed.
Log level	Log level indicating the importance of the message. See: Log levels below for details.
Action	Login results. See: Action below for details.
URI	URI of the page accessed.
Client IP address	IP address of the user who attempted the access.
Member ID	Member ID of the user who attempted the access.
Apprication request ID	Unique request ID used by Kuroco.
User agent	User agent of the browser used for the access.

Log levels

Logs can be categorized into the 9 levels below, listed in order of increasing importance:

• Default
• Debug
• Info
• Notice
• Warning
• Error
• Critical
• Alert
• Emergency

Action

Value	Description
Login Success	Login succeeded.
Login Failed	Login failed.
autoLogin Success	Auto-login succeeded.
autoLogin Failed	Auto-login failed.
Logout	Logout.
apiLogin Success	API login succeeded.
apiLogin Failed	API login failed.

Buttons

Button	Description
Search	Search based on the above settings.
Download	Download a list of the displayed logs.
Delete	Delete a list of the displayed logs.

Log list download

After click [Download] button, the download settings will open.

Field(s)	Description
Charset	Character encoding of the output CSV file.
Cancel	Cancel downloading.
Download	Execute downloading.
