Using Any Email Delivery Service for Email Sending from Kuroco(blastengine)

Overview

By using the trigger "Instead of the default email sending method (SendGrid)", you can send notification and invitation emails using any email delivery service such as blastengine, Mailchimp, Amazon SES, etc.

In this tutorial, we will show you how to replace email sending from SendGrid to blastengine.

What you'll learn

You will learn how to implement email sending using any email delivery service with the following steps:

• Setting up blastengine
• Setting up Kuroco
• Confirmation of operation
• Increasing email deliverability

Prerequisites

info

In this tutorial, we will be using blastengine for email sending. .
Please refer to the blastengine website for detailed information about the service, as well as its API documentation.

Also, since we will be configuring SPF/DKIM, please make sure to use a domain that you own for the "from" email.

Setting up blastengine

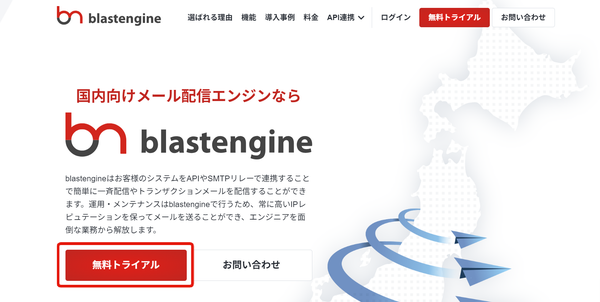

First, access blastengine and sign up for a free trial.

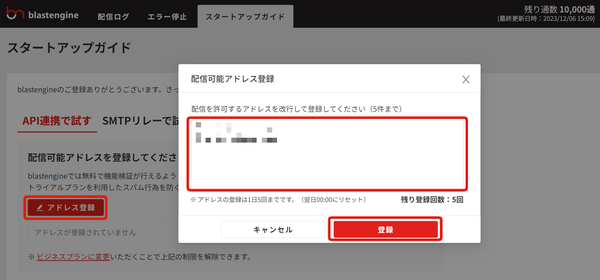

Once you have logged in to your trial account, click on "Address Registration" under the "API Integration Trial" tab to enter the address that will allow delivery from blastengine.

Next, obtain the API key.

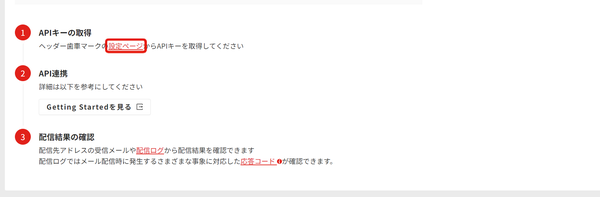

Click on the "Settings" page to go to the blastengine settings page.

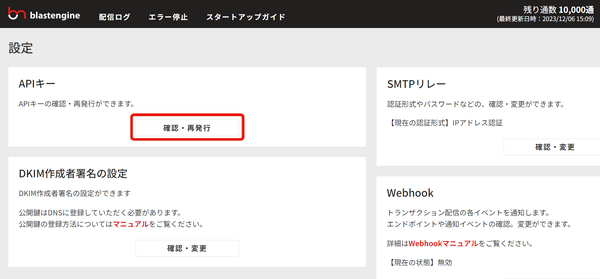

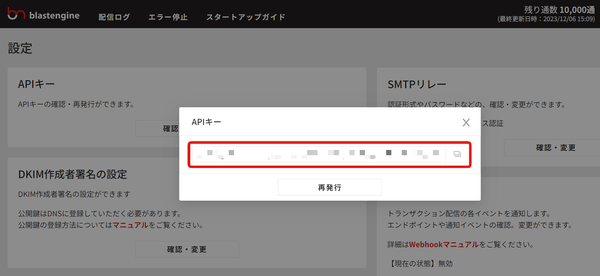

Click on "Check/Reissue" for the API key.

Take note of the API key that is displayed.

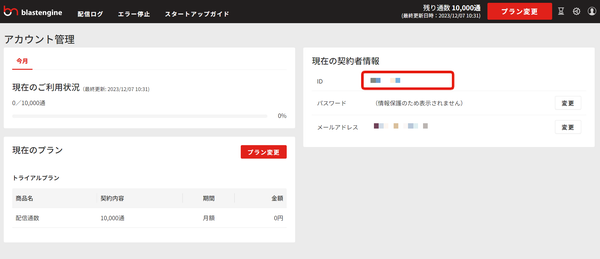

Also, access the Account Management page and take note of the ID.

Setting up Kuroco

Registering the secret

Access the Kuroco management screen and In the left sidebar menu, under "SETTINGS", click [Environment] -> [Secrets].

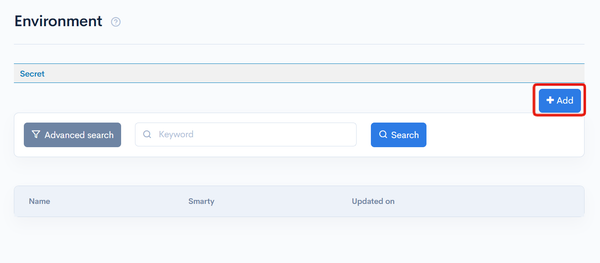

Click on [Add].

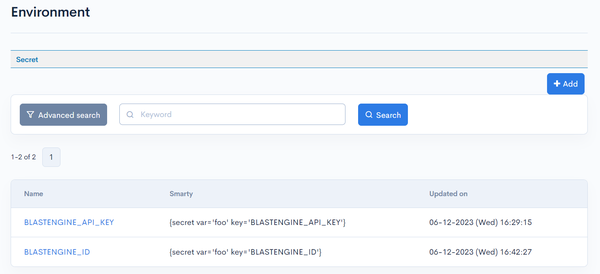

Register the API key obtained from the blastengine settings page and the ID as shown below.

Field	Value
Name	BLASTENGINE_API_KEY
Value	API key of blastengine

Field	Value
Name	BLASTENGINE_ID
Value	ID of blastengine

You have now completed the preparation to use blastengine.

Registering custom processing

Once you have prepared to use blastengine, write the custom processing to replace email sending from SendGrid to blastengine.

In the left sidebar menu, click [Operation] -> [Custom function]

Click on "Add".

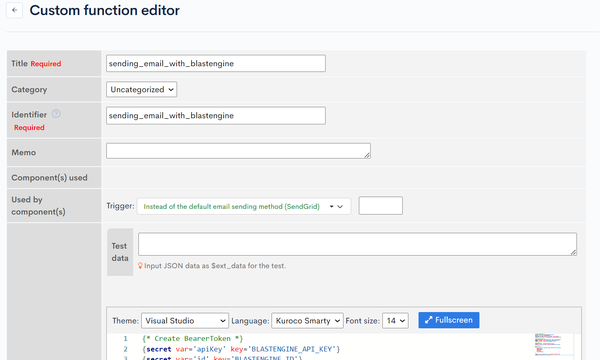

Configure as follows:

Item	Value
Title	sending_email_with_blastengine
Identifier	sending_email_with_blastengine
Trigger	Instead of the default email sending method (SendGrid)
Processing	The following content

sending_email_with_blastengine

{* Create BearerToken *}
{secret var='apiKey' key='BLASTENGINE_API_KEY'}
{secret var='id' key='BLASTENGINE_ID'}
{rcms_hash var='token' data="`$id``$apiKey`" algo="sha256"}
{assign var='BearerToken' value=$token|strtolower|base64_encode}

{* Set Request Headers *}
{append var=headers value="Authorization: Bearer `$BearerToken`"}
{append var=headers value="Content-Type: application/json"}
{append var=headers value="Accept-Language: ja-JP"}

{* Set Body *}
{assign var='body' value=$payload|@json_decode}
{assign var='body.from.email' value="noreply@kuroco-mail.app"}

{* Send Request *}
{api
    endpoint="https://app.engn.jp/api/v1/deliveries/transaction"
    method='POST'
    headers=$headers
    body=$body
    var=response
    status_var=status
}

{logger msg1="blastengine_mail_log" msg2=$body msg3=$response}
{assign var='is_mail_sent' value=true}

caution

Please change noreply@kuroco-mail.app to your own email address.

Once you have entered the information, click [Add] to add the custom process.

Confirmation of operation

Let's actually send an email from Kuroco. To confirm the operation, we will use the password reminder.

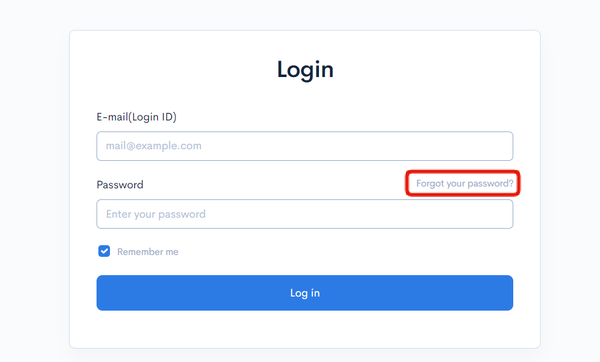

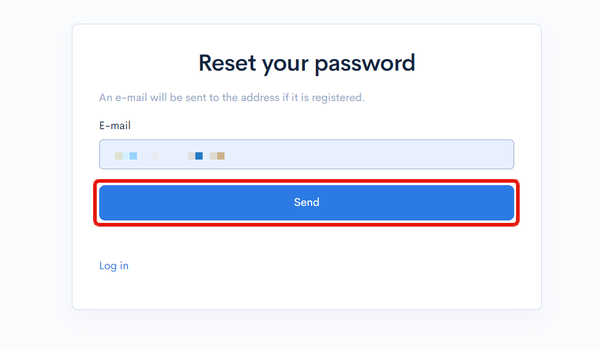

Access the Kuroco login screen and click [Forgot your password?].

Enter the email address that has been allowed to receive emails from blastengine and click [Send].

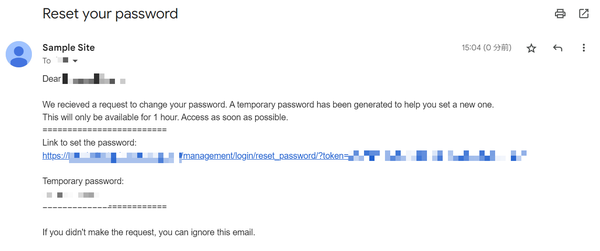

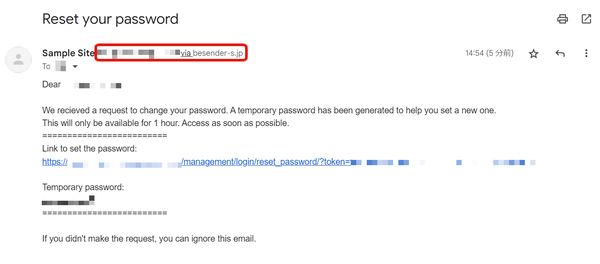

When you check the received email, you can see that the "from" address is the email address in the custom process and the display of "via besender-s.jp".

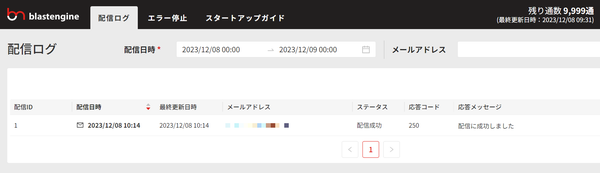

Also, when you check the delivery log of blastengine, you can see that the email was sent from blastengine.

Increasing email deliverability

So far, you have been able to send emails using blastengine. To prevent sent emails from being classified as spam, we will set up SPF records and DKIM authentication.

By implementing email authentication, you can prevent email spoofing and verify that the email was actually sent by the domain owner.

As the processing for emails without SPF/DKIM settings becomes stricter year by year, be sure to implement these settings.

info

• Email sender guidelines
• Why SPF authentication is necessary and how to set it up
• 【Illustration】Even beginners can understand! Mechanism and setup method of DKIM

Setting up SPF records

Set the following TXT record in the domain management service.

Hostname	Type	Value
Blank	TXT	v=spf1 include:spf.besender.jp ~all

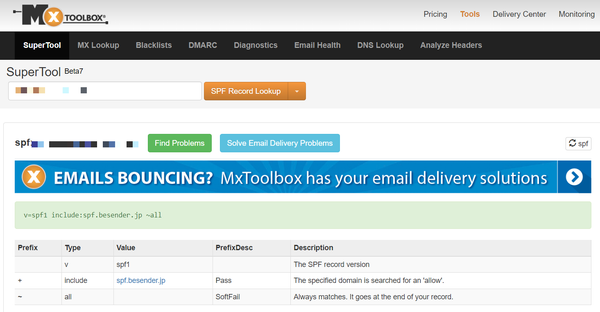

After setting it up, use MxToolbox's SPF Record Check to verify that it is set up correctly.

Setting up DKIM

Next, set up DKIM. First, prepare a pair of public and private keys, and set the private key in blastengine.

Generating private and public keys

Generate the private key using the OpenSSL command-line tool in your local environment. First, open the terminal and check if OpenSSL is available using the following command.

openssl version

info

If OpenSSL is not installed, please install it separately, especially for Windows.

Next, create a private key with the following command.

openssl genpkey -algorithm RSA -out private_key.pem

The public key can be extracted from the private key using OpenSSL.
Here is the command to do so.

openssl rsa -pubout -in private_key.pem -out public_key.pem

Register with blastengine

Register the created private key with blastengine.

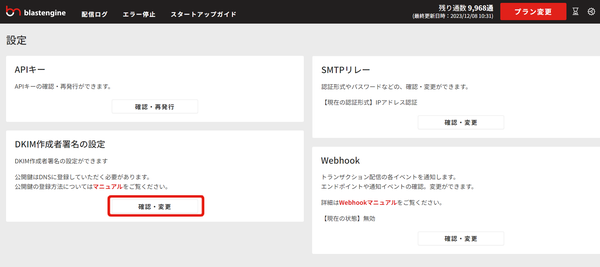

Access the blastengine settings page and click on [Confirm/Change] for DKIM Signer Settings.

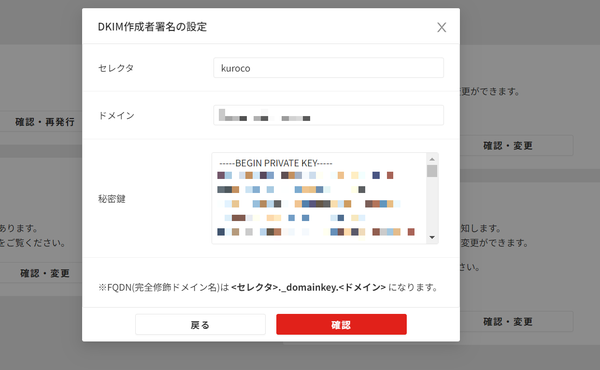

The DKIM Signer Settings will be displayed. Click on "New Registration" and set the following:

Field	Value
Selector	kuroco
Domain	The domain used in the "From" email
Private Key	The private key starting with -----BEGIN PRIVATE KEY----- that was created earlier

Once the input is complete, click [Confirm] to register.

Configure DNS

Set the following TXT record in the domain management service:

Hostname	Type	Value
kuroco._domainkey	TXT	v=DKIM1; k=rsa; p=The part of the public key without the -----BEGIN PUBLIC KEY----- and -----END PUBLIC KEY-----

caution

If the length of the VALUE exceeds the maximum number of characters that can be set, you need to split the TXT record and register it separately.
If necessary, please contact your domain management service for assistance.

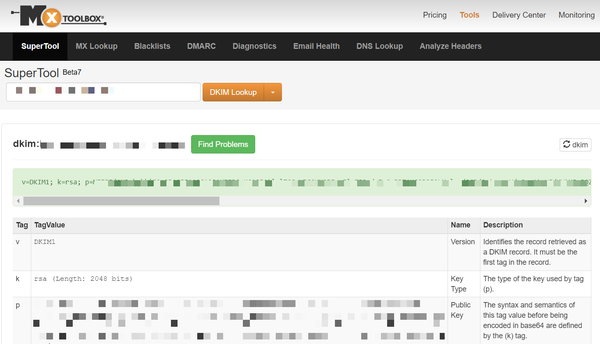

Once the configuration is complete, use MxToolbox's DKIM Record Lookup to verify that it is set correctly.

Send another email from Kuroco to confirm that the "From" address is now the custom processing email address, and there is no longer a "via besender-s.jp" indication.

With this, the configuration for using any email delivery service is complete.
